SEETEC P238-9HSD 23.8 inch 3G SDI 4K HDMI Production Broadcast Director Monitor with HDMI SDI In Out
Shipping calculated at checkout
Only 2 in stock
. Stock in US, EU, JP, AU, CA, RU local warehouse
US/ CA/ RU: 3-7 days delivery
EU/ AU: 3-10 days delivery
JP: 2-3 days delivery
. Shiping Worldwide 200+ Country
7-10 days delivery.
. Warranty: One year warranty time and 14 days return and refund for US, EU, JP, AU, RU.
. VAT for EU customers: The VAT is asked by EU government, and it will be charged when you place the order even if you buy our products on our Amazon Store. There is no difference wherever you buy it, and the VAT is included in the price on those online shopping plates.
More detail: Shipping Policy | Warranty Policy

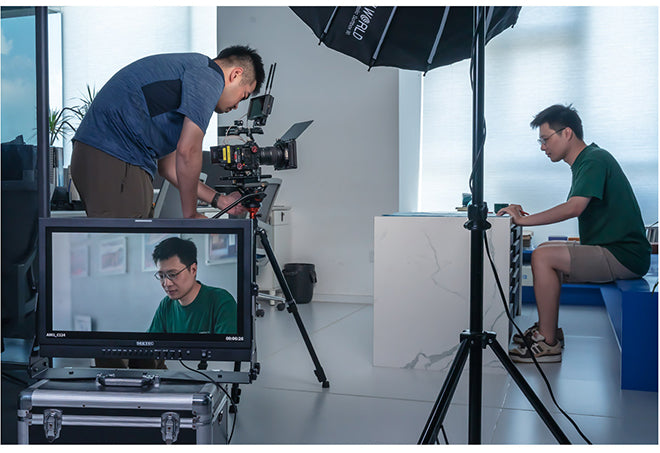

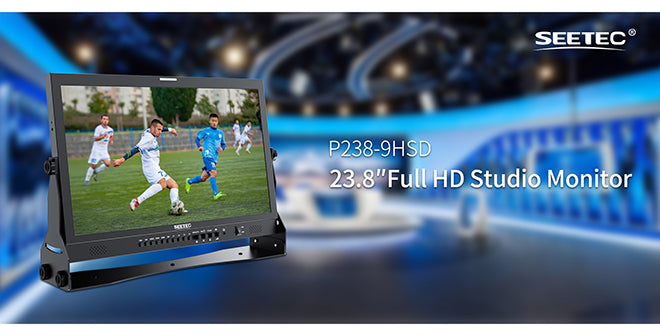

23.8-inch 4K HDMI/SDI Broadcast Monitor
FEELWORL P238-9HSD with 23.8-inch large screen can help you with each shot, and instilled confidence in knowing no details were missed. Multiple signal interfaces and a series of auxiliary functions,made P238-9HSD is easy application for on-set monitoring, TV news production, broadcasting house, TV broadcasting truck.

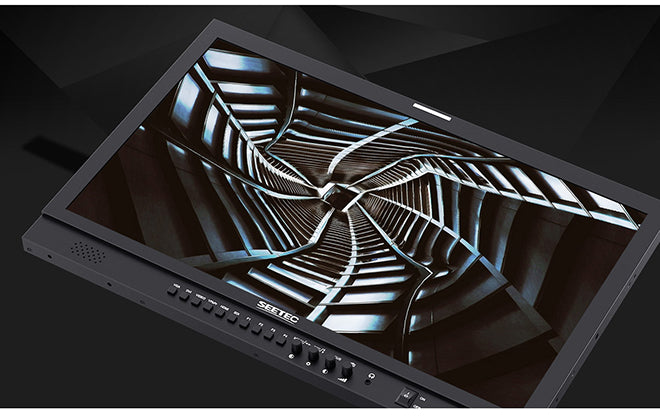

Rugged and Durable Aluminium Housing
The full aluminum alloy frame not only make the device more solid and durable, but also solve the problem of heat dissipation.

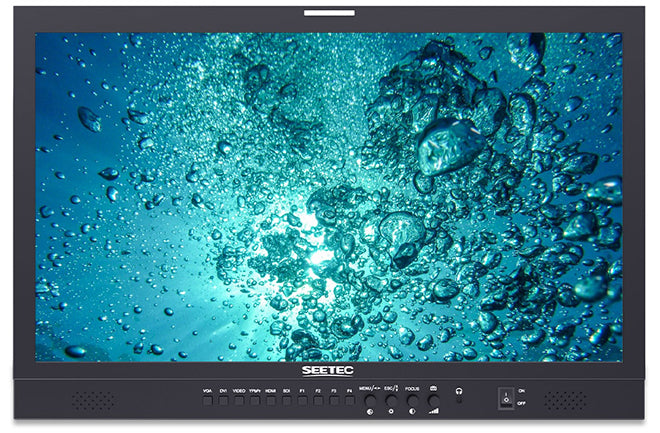

Full HD IPS Panel
Viewing clearly and capture every detail with confidence
With extremely high resolution IPS panel, provides excellent details；covers 72% NTSC color space, accurately reflect the original colors.

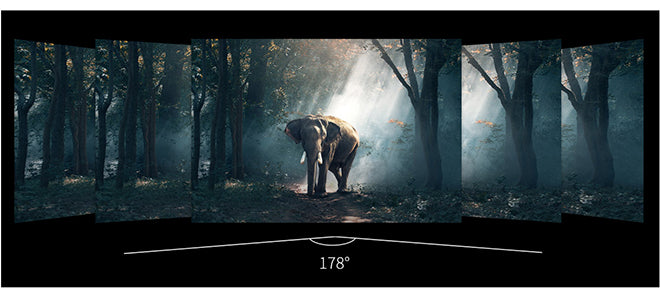

178°Wide Viewing Angle
With a wide viewing angle of 178 °, providing a wider field of view than a regular panel,allowing you to enjoy the ideal picture of bright colors, saturate and nature from any angle you view.

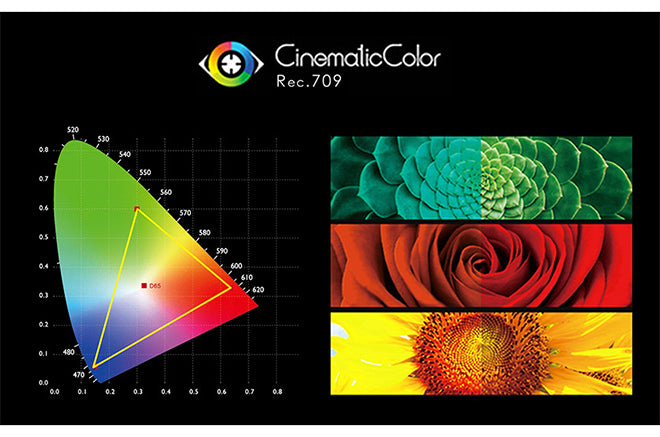

Rec.709 Color Standard
SEETEC uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color,show the real image when you shooting video.

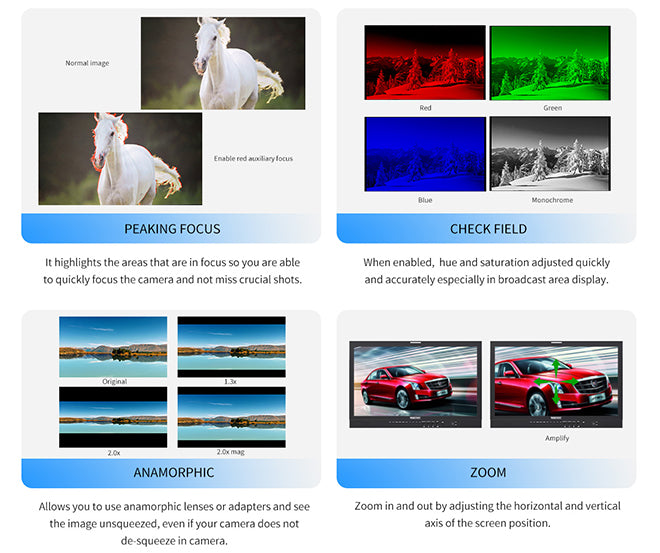

Professional Auxiliary Tools, Easily Focus

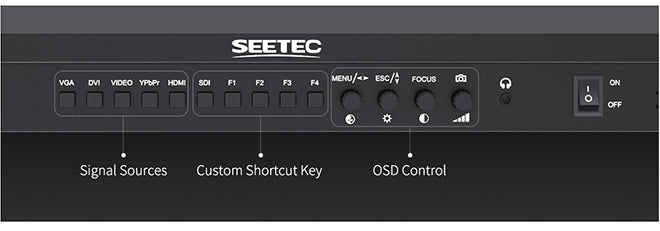

Flexible and Intuitive Button Operation
When you are busy at the shooting scene, you need to be able to easily control the equipment.P238-9HSD is equipped with multi operation buttons and knobs,can switch between one-button sources, and 4 shortcut buttons (F1~F4), you can custom shortcut function according to your needs, such as check field, safe frame and so on. You can also quickly adjust brightness,contrast,volume,etc.to make shooting easier.

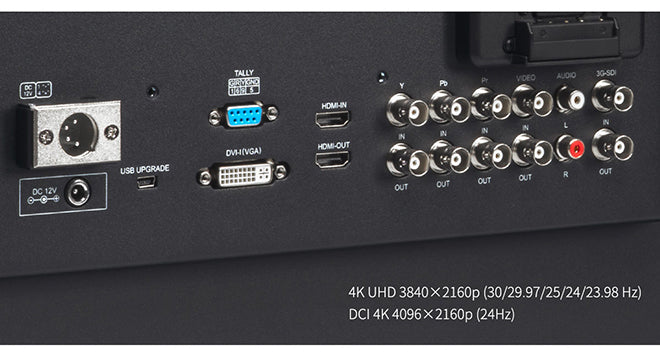

Multiple Signal Interfaces, Satisfy Different Needs
The monitor is equipped with 3G-SDI, HDMI, YPbPr, Video, DVI, Audio L/R interfaces, meet all HD, SD, analogue video signal input and display demand.

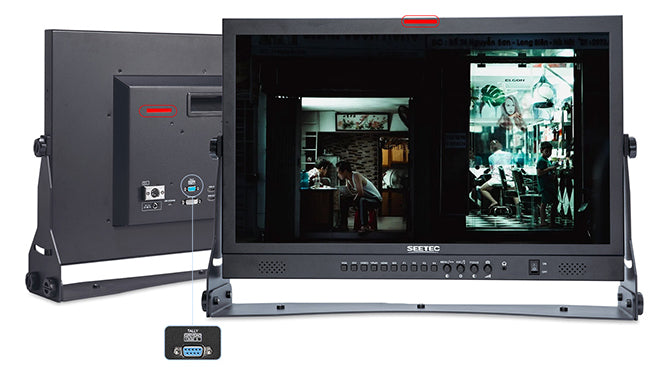

3-color TALLY Light, Enhance Team Cooperation
P238-9HSD includes tally lights on the front and near panel displayed in red, green or yellow tally signal. This means during live production you will always know when you are recording or on-air, or you can see which camera is cued up on your switcher's preview output. Tally is connected via an industry standard parallel pin connector on the rear panel.

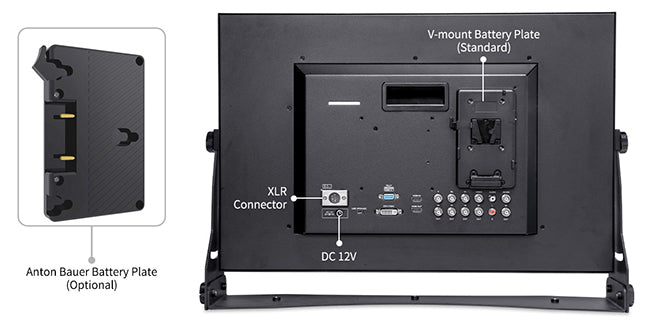

Multiple Power Supply，Long-lasting Power Shooting
The monitor an be powered by DC adapter or lithium battery. For power adapter, you can connect DC IN12V or XLR power interface; for battery, you can mount it on V-mount battery plate (standard) or Anton Bauer battery plate (optional)
Features:
1. Wide view angle, Full HD 1920x1080, bright, colorful display2. HDMI, 3G-SDI, Ypbpr, Video, Audio(L/R), DVI inputs and HDMI, 3G-SDI, Ypbpr, Video loop-through outputs
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom All
* U/D & L/R Zoom
Specifications:
| Model | P238-9HSD |
| Screen Size | 23.8" IPS |
| Color Depth | 16.7M (8-bit) |
| Resolution | 1920×1080 pixels |
| Pixel Pitch | 0.2745 (H) x 0.2745 (V)mm |
| Aspect Ratio | 16:9 |
| Brightness | 250cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 89°/89°(L/R) 89°/89°(U/D) |
| 1 X BNC | 3G-SDI |
| 1 X HDMI | HDMI |
| 3 X BNC | YPbPr |
| 1 X DVI-I | DVI-I |
| 1 X BNC | Video |
| 2 X RCA | Audio(L/R) |
| 1 X BNC | 3G-SDI |
| 1 X HDMI | HDMI |
| 3 X BNC | YPbPr |
| 1 X BNC | Video |
| Audio | Stereo Headphone, Speaker |
| 480i/576i |
| 720p(60/59.94/50/30/29/25/24/23.98) |
| 1080i(60/59.94/50) |
| 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
| 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz) |
| Input Voltage | DC9～24V |
| Power Consumption | ≤24W |
| Working Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |
| Unit Size | 567Lx372Hx46.7D (mm) (W/O Bracket) |
| Unit Weight | 5.9kg (W/O Bracket) |
Standard Accessories:
1× Mini HDMI Cable
1× V Battery Plate (default to mount on device)
1× 3A Power Adapter
1× Tally Kit

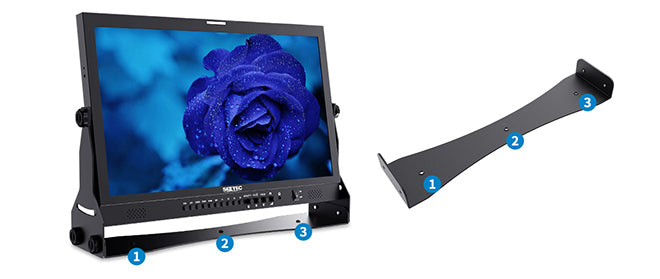

1× U-shape Bracket
1× Operation Manual
