FEELWORLD S7 7 Inch 12G SDI HDMI2.0 Camera Field Monitor with 1600nit High Brightness Touchscreen

Regular price $599.99

Shipping calculated at checkout

Only 13 in stock

Collapsible tab

Collapsible tab

. Stock in US, EU, JP, AU, CA, RU local warehouse

US/ CA/ RU: 3-7 days delivery
EU/ AU: 3-10 days delivery
JP: 2-3 days delivery
. Shiping Worldwide 200+ Country
7-10 days delivery.

. Warranty: One year warranty time and 14 days return and refund for US, EU, JP, AU, RU.

VAT for EU customers: The VAT will be charged when Europe customers place the order on our official store or Amazon Store.

More detailShipping Policy | Warranty Policy

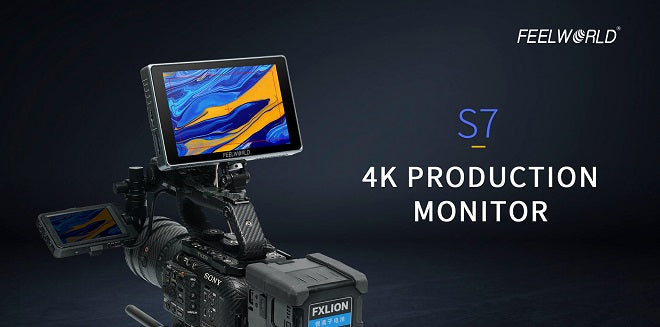

Perfect 4K SDI Monitoring
Manytimes, 4K camcorder are used on-site shooting, while director often use 2K monitor for monitoring. Using 4x3G-SDI is not convenient in practical applications and not accepted. FEELWORLD release the first 7-inch 12G-SDI field monitor. With it, you can reduces system complexity in a 4K workflow. Instead of 4 x 3G-SDI cables to get 4K video image, you only need a single 12G-SDI, and get rid of the awkward situation of monitoring 2K while shooting 4K.

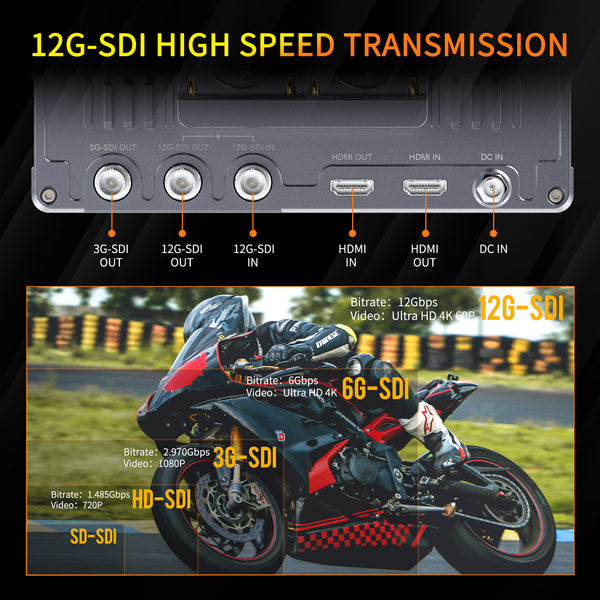

12G-SDI High Speed Transmission
Adopting 12G-SDI single link technology and compatibility with 6G-SDI/3G-SDI/HD-SDI/SD-SDI, supporting 12Gbps per second transmission rate, better meeting the video transmission needs of high definition and high frame rate.

Professional Broadcast Quality
S7 can not only handle handle monitoring from all your SD, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI sources, but also simultaneously loop-out high quality broadcast video images, providing you the perfect future proof monitoring solution and bringing the best quality possible and a fluid smooth viewing experience!

7-inch Full HD Screen
Clearly checking and capture every nuance
With extremely high resolution 7-inch IPS panel,a wider field of view and clearly present more detailed image. 1.07B color provides a richer range of colors. 160 ° wide viewing angle, support multiple members to monitor the image from all angles, facilitate team collaboration for filmmaking.

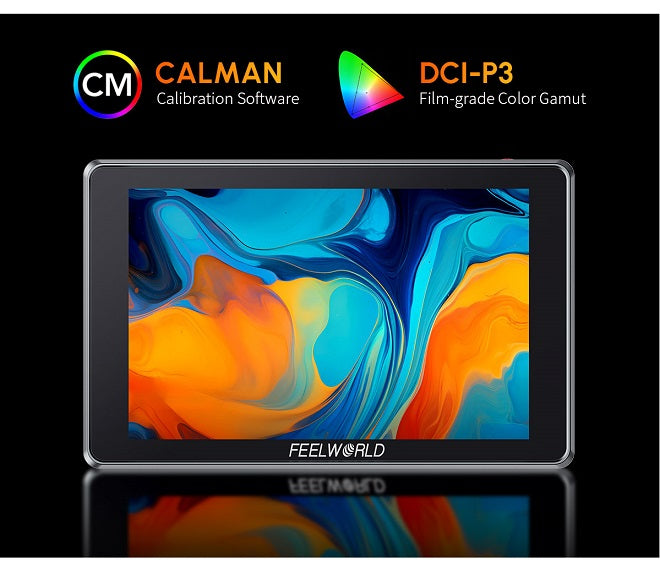

Professional CalMAN Software Calibration, DCI-P3 Cinema Color Gamut
Each monitor under goes color calibration via CALMAN professional software prior to leaving the factory,ensure color accuracy and good reproduction.Plus, S7 also covers 94.9% DCI-P3 film-grade color gamut, better meet the visual experience.

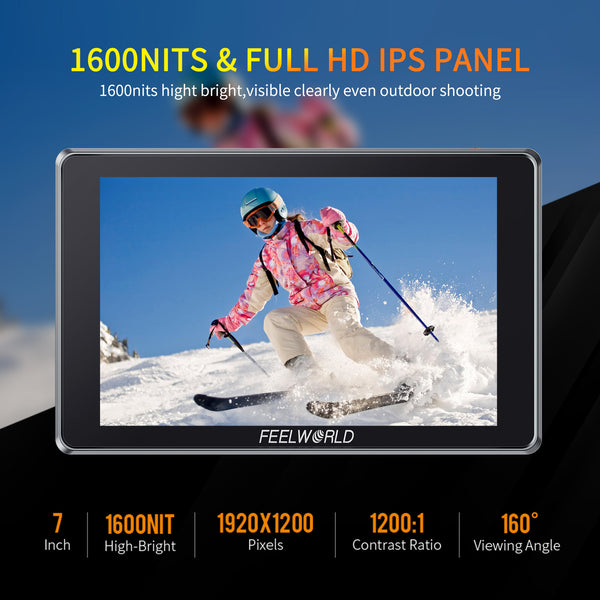

1600nits, Visible in Sunlight
High brightness 1600nit is viewable in almost every kind of light. Indoors, outdoors or anywhere you need.


Rugged Aluminium Housing
Adopts CNC aluminium housing, durable and portable, suitable for various shooting environment.

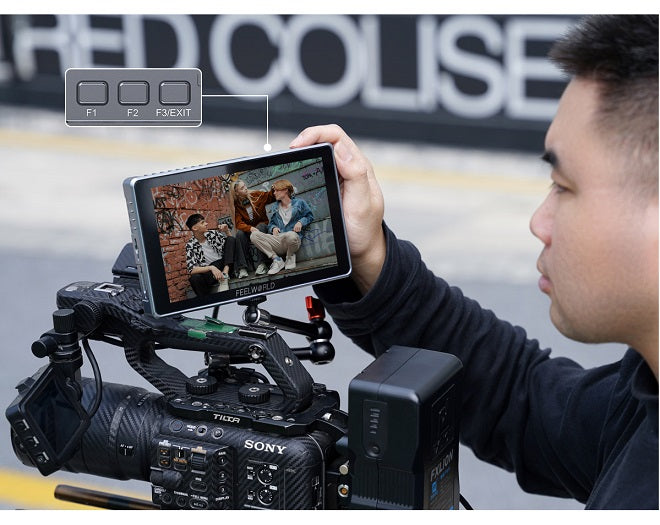

Custom Shortcut Keys
On the top of S7 comes with three custom shortcut buttons , the photographer can set the shortcut functions in advance according to the actual needs of the shooting site, and quickly call up the required functions during the shooting process, greatly improving the shooting efficiency.

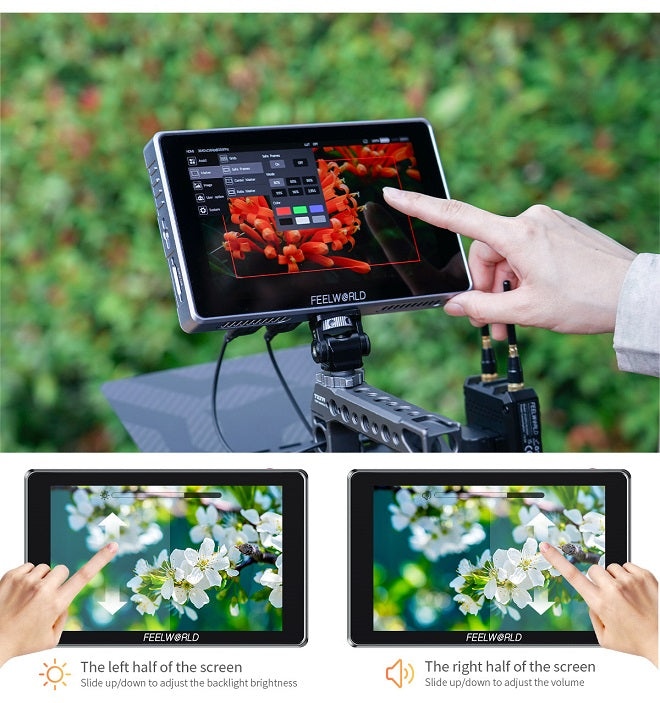

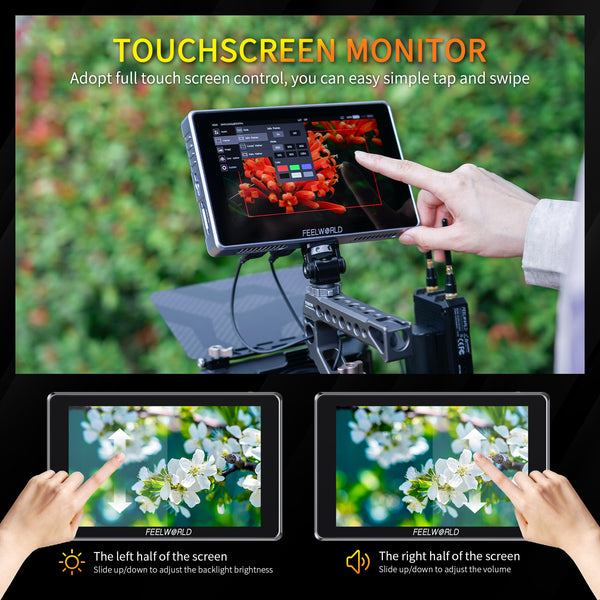

Sensitive Touch Screen Control
The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons. Plus, you can also operate via scroll wheel key.

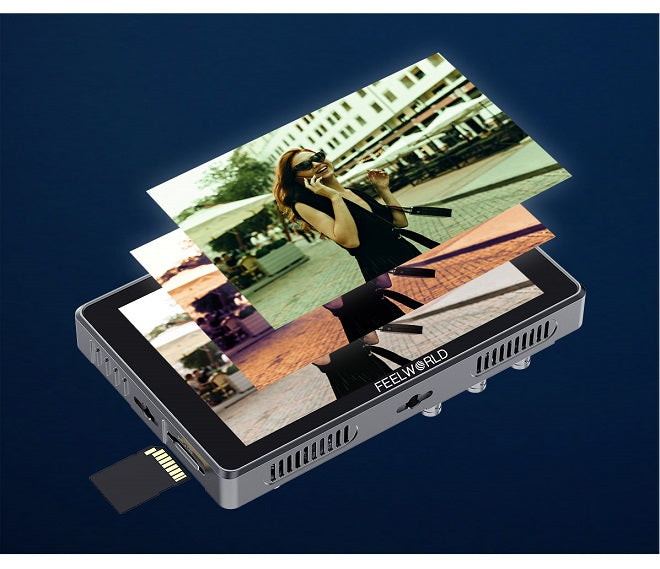

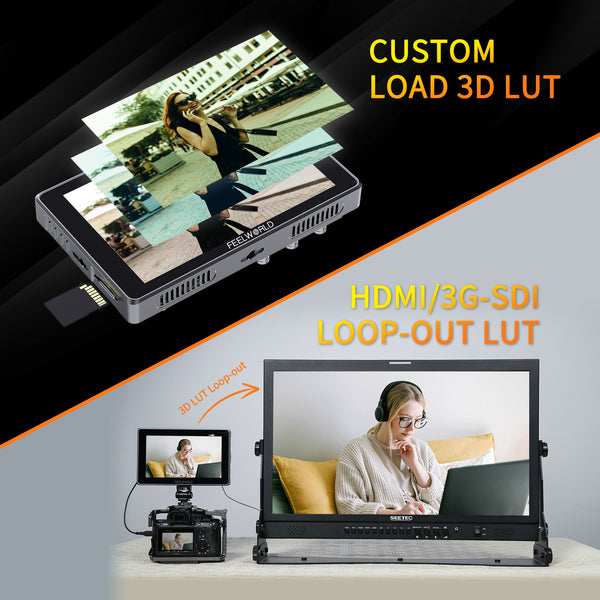

Load Custom 3D LUTs,Preview Filming Look in Field Shooting
Support to load 32 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. S7 allows you to load internally up to 32 custom LUTs, looks or profiles at any time via the SD Card Slot and instantly select between them, maintaining creative intent, always.

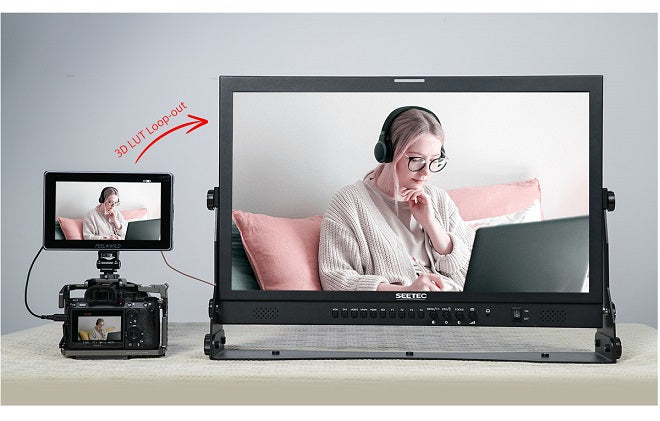

3D LUT Loop-out
HDMI and 3G-SDI can output the video or image with 3D LUT effect. When you are live streaming, you can connect the S7 output as a live broadcast image to add a cinematic ; when shooting on-set, you can output the image with LUT to the director or client for real-time monitoring by connecting a wireless device to strengthen teamwork.
Note: To use HDMI with LUT output, you need to set the HDMI output to "display" (enter main menu--System--Source--Output Source--HDMI OUT--Display)


HDR Monitoring
What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty,it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.

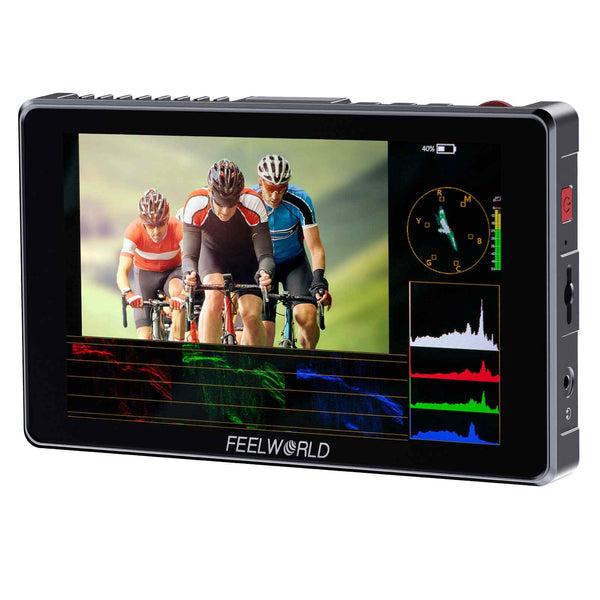

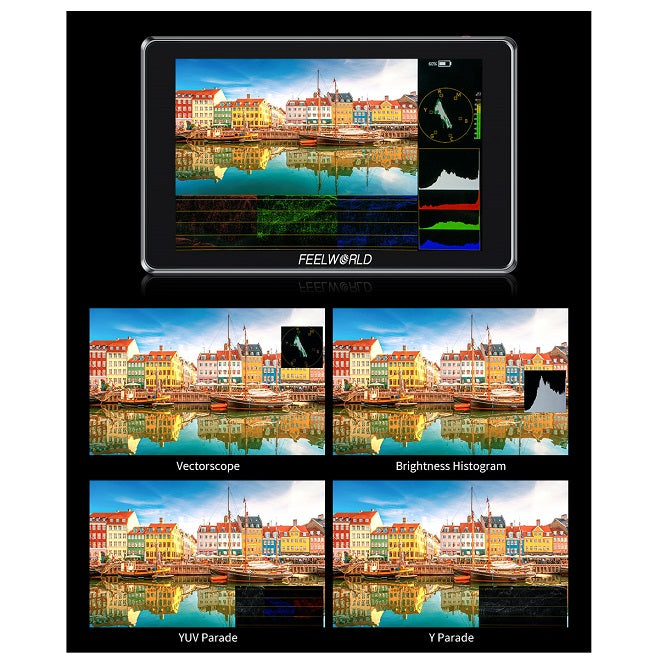

Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. S7 becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

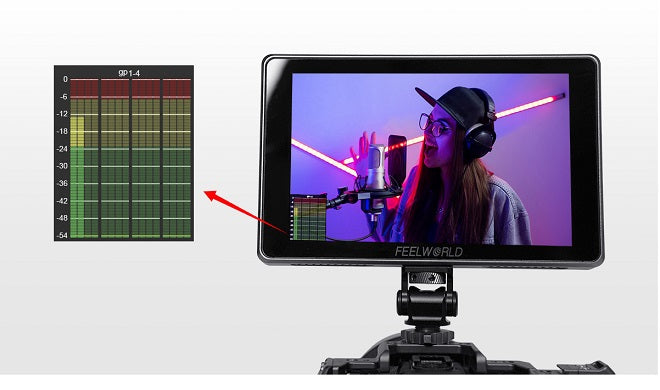

Up to 16-channle Audio Meter Level
S7 can de-embedded audio from SDI and HDMI. Under HDMI, you can select 2 channels, 4 channels, 8 channels audio meters display; under SDI, you can select 2 channels, 4 channels,8 channels, 16 channels audio meters display . You also can move it horizontal or vertical position , and don' worry cover the image.

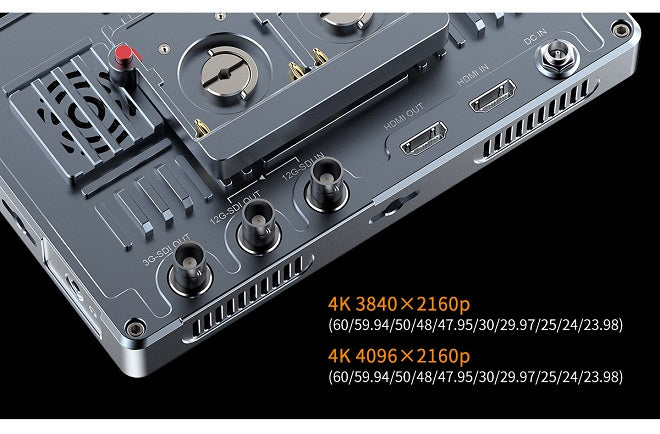

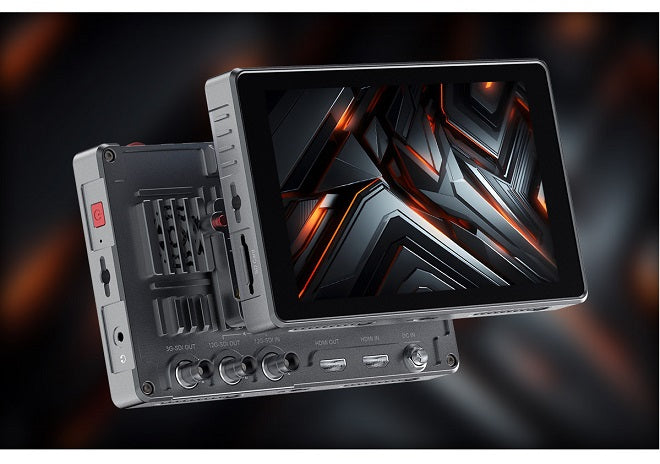

12G-SDI & 4K HDMI Input and Output
Equipped with 12G-SDI and 4K HDMI inputs and outputs, support up to 4096x2160/60p &3840x2160/60p signal, compatible with professional camcorder and the latest DSLR cameras on the market. In addition, S7 also comes with a 3G-SDI output and provide a 3.5mm headphone jack to monitor audio.

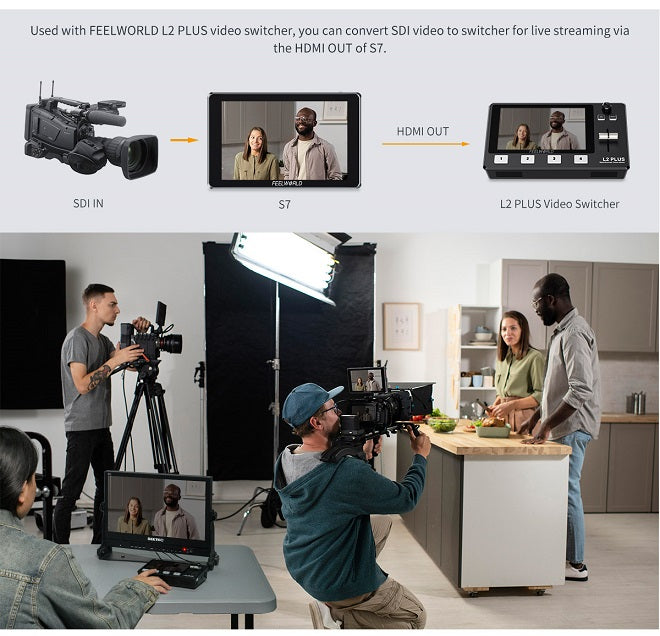

HDMI and SDI Cross Conversion,Easy to Handle Various Application
S7 built-in signal cross conversion, allows you to convert HDMI to SDI signal or SDI to HDMI signal. You can easy to convert signals and needn't the additional converters. Can be used for various broadcasting and live production.
Note: To use signal cross conversion, please set HDMI OUT as"Display"(enter main menu--System--Source--Output Source--HDMI OUT--Display)

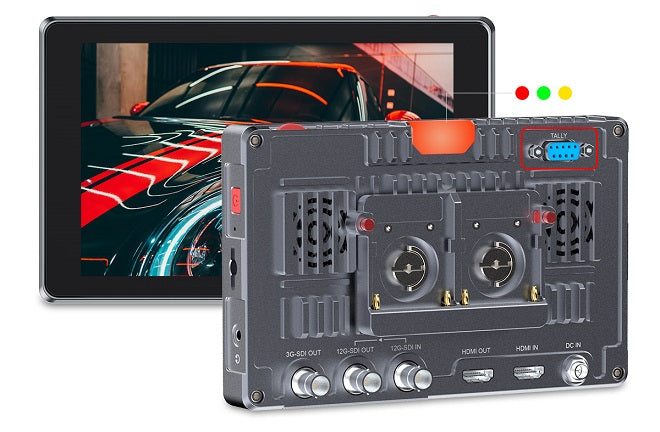

3-color TALLY Light, Enhance Team Cooperation
S7 including tally light, it can display in red, green or yellow Tally signal. This means during live production you will always know when you are recording or on-air, or you can see which camera is cued up on your switcher's preview output. Tally is connected via an industry standard parallel pin connector on the rear panel.

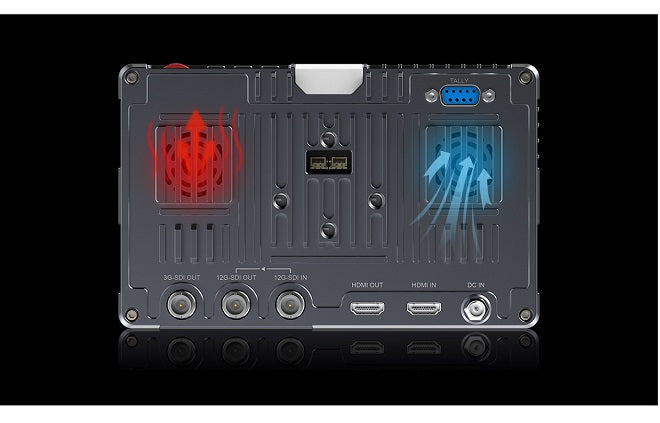

Built-in Cooler
Built-in cooler, don't worry the monitor work for long time.

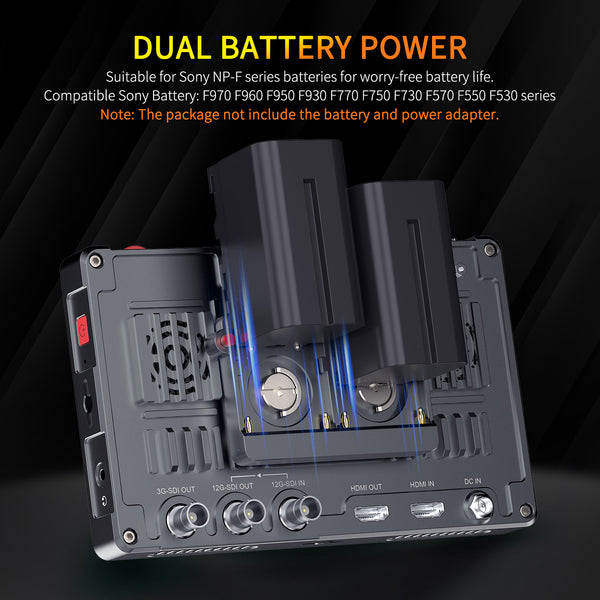

Flexible Power Supply,Long-lasting Power for Shooting
You can connect to DC power input to get continuous power or use the standard F970 dual battery plate to install NP-F series battery for mobile application. Install one F970 battery (6600mah) last for about 3 hours. The upper right corner of monitor will display battery level after the battery installed. two batteries are installed at the same time, when one is running low, you can quickly switch to the other one without worrying about losing power midway. The V-mount battery plate is for optional.
Note: the battery not including, please purchase separately. Higher capacity (working time) will be longer.

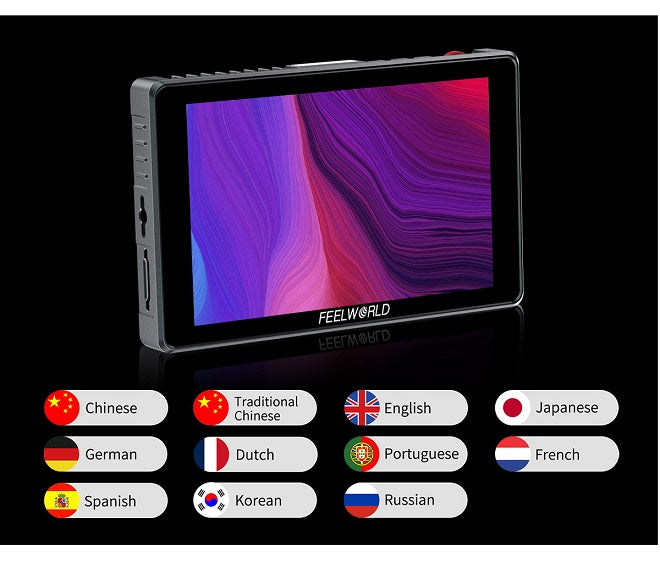

11 Languages Supporting
S7 built-in up to 11 languages, that means S7 is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

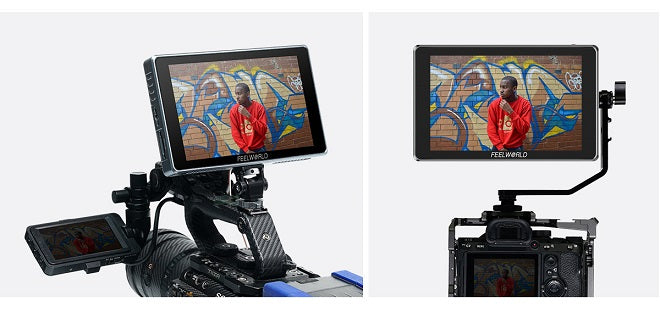

Multiple Mounting Points, Meet Different Need of Monitoring
The monitor is equipped with 3 standard 1/4”mounting threads (bottom, right side, left side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Meet the different monitoring for photographer or director.

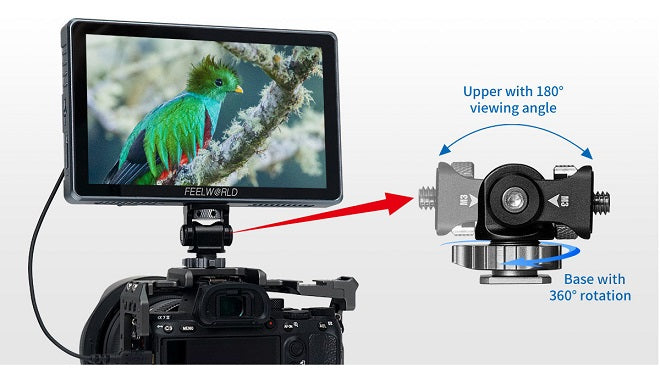

Mini Hot Shoe Mount Adapter
The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, led light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.

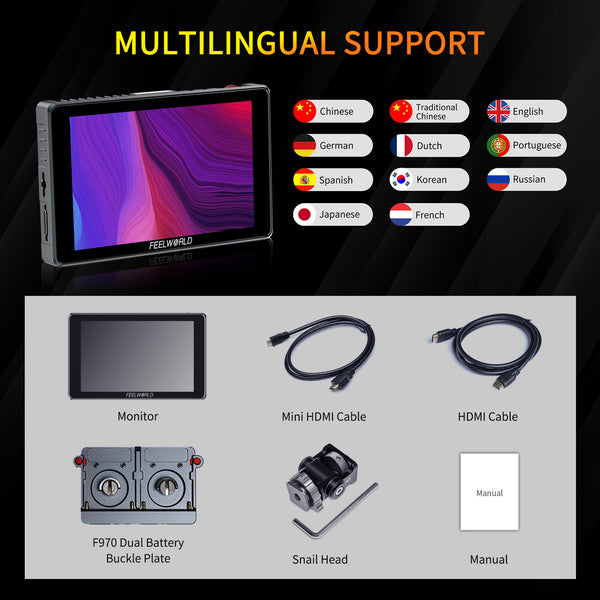

Packaging List:
1×  Monitor
1× Mini HDMI Cable
1× HDMI Cable
1× F970 Dual Battery Plate
1× Mini Hot Shoe Mount+ Hex Wrench
1× Manual

Display Spec.
 Model  S7
 Screen Size  7" IPS
 Resolution  1920x1200 pixels
 Pixel Pitch 26.25 (H) x 78.75 (W) (um)
 Aspect Ratio  16:10
 Brightness  1600cd/m²
 Contrast Ratio  1200:1
 Backlight  LED
 Viewing Angle  80°/80°(L/R) 80°/80°(U/D)

Input
 1 X SDI  12G-SDI
 1 X HDMI  HDMI 2.0
 1 X Tally  9 pin
 1 X SD Card  SD Card Slot (LUT files and firmware update file import)

Output
 1 X SDI  12G-SDI
 1 X SDI  3G-SDI
 1 X HDMI  HDMI2.0

General
 Input Voltage  DC7~24V
 Power Consumption  ≤16W
 Working Temperature  -10°C~60°C
 Storage Temperature  -30°C~70°C
 Install Way  1/4"-20 Thread (Left,Right,Bottom)
 Unit Size  186Lx116.9Hx25D(mm)
 Unit Weight  550g
 Color Box Size  222L*158W*78H(mm)
 Outer Carton Qty  10
 Outer Carton Size  535*230*405 (mm)
 Gross Weight  kgs
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.

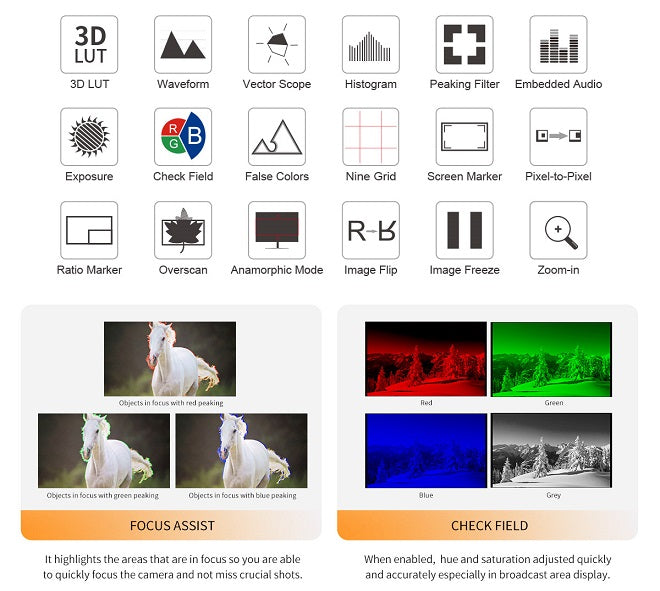

FEATURES

*7-inch 1920x1200 full HD IPS screen, view details with confidence
* Touch screen menu operation, improve shooting efficiency
* 1600nits visable in sunlight
* Rugged aluminium housing
* 12G-SDI high speed transmission, meet more professional production
* With SDI & HDMI cross conversion
* Both HDMI and SDI support LUT loop-out
* Supports 3D LUT Log to REC.709 and user 3D LUT upload (up to 32)
* HDR monitoring, what you see is what you get

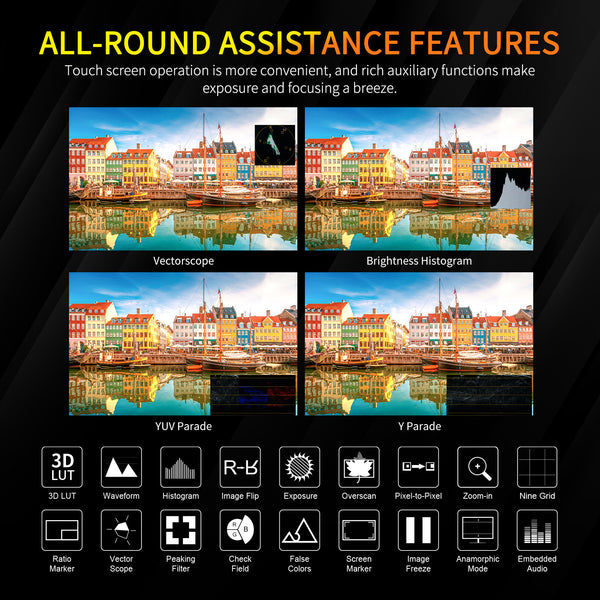

* Support waveform, vector, histogram, audio meter movable vertically and horizontally
* Standard accessory F970 dual battery plates, long-lasting power for outdoor filming
* Stereo Earphone output



Waveform
This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.

Vectorscope
Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.

Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis and a stack of the number of pixels at each level of brightness along the vertical axis.



RGB Histogram
RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.

Image Flip
Image flip is to flip the image horizontally, vertically, and horizontally/vertically. Simultaneously turning on the horizontally flip and the vertical flip can achieve horizontal/vertical simultaneous flipping.

Grid
Grid is the most common and basic composition method. The area of the picture can be choose divided into 4 ,9, 16, 25, 36, 49,64,81equal grids.

Center Marker & Safety Marker
Safety Marker for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1). You can switch the Mark color between Red, Green, Blue, Black, White, Gray according to different tone of the subject.



Ratio Marker

There are a variety of ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1). You can switch the marker colors between Red, Green, Blue, Black, White, Gray according to different tone of the subject.
