SEETEC P150-3HSD 15 Inch 1024X768 Broadcast Director Monitor with Peaking Focus Assist 3G SDI HDMI
Regular price
$380.00
Shipping calculated at checkout
Out of stock
. Stock in US, EU, JP, AU, CA, RU local warehouse
US/ CA/ RU: 3-7 days delivery
EU/ AU: 3-10 days delivery
JP: 2-3 days delivery
. Shiping Worldwide 200+ Country
7-10 days delivery.
. If the local warehouse out stock, we will send the email inform to you that local warehouse estimated in stock date. According to the customer needs, you can choose the wait the local warehouse in stock or shipment from the China at once.
More detail: Shipping Policy | Warranty Policy
SEETEC Professional Broadcast LCD Monitor has been widely used in TV news production, broadcasting house, TV broadcasting truck and other fields. Since this series is working with other adjacent professional equipments, therefore, high stability, high reliability and electromagnetic compatibility are very important to make sure the whole system work smoothly.
Stability and Reliability
The full aluminum case not only makes the product more solid and durable, but also solves the problem of heat dissipation. Full aluminum case improves the anti-interference capability!
The full aluminum case not only makes the product more solid and durable, but also solves the problem of heat dissipation. Full aluminum case improves the anti-interference capability!

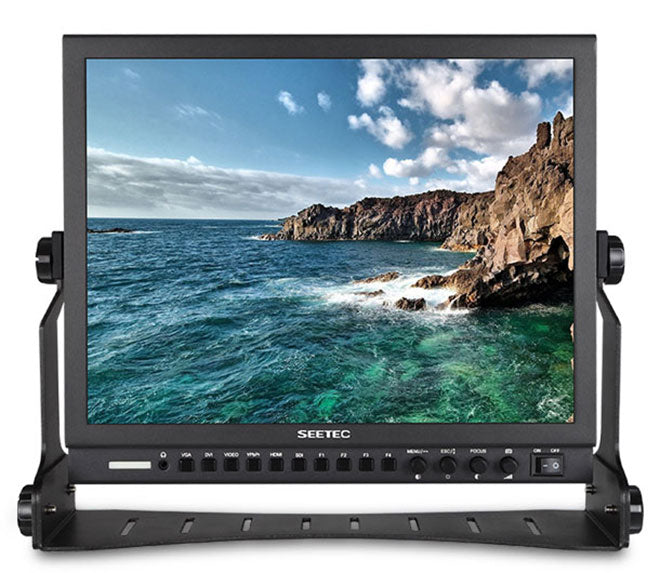

1024X768 Pixels HD Panel
With the P150-3HSD's large size 15-inch 1024×768 HD panel, 4:3 ratio, 800:1 Contrast, 350cd/m², it's good choice for film crews field application.
With the P150-3HSD's large size 15-inch 1024×768 HD panel, 4:3 ratio, 800:1 Contrast, 350cd/m², it's good choice for film crews field application.
Innovation OSD Operation
P150-3HSD not only set up four "F key" for peaking focus asist, check field, camera mode function, pixel to pixel, Center Marker, Safe Marker, Image Flip and so on, reserves the knob for professional users. Double functions and knob type coding switch are SEETEC's exclusive technology feature, which will bring you more convenient and rapid operate feeling.
P150-3HSD not only set up four "F key" for peaking focus asist, check field, camera mode function, pixel to pixel, Center Marker, Safe Marker, Image Flip and so on, reserves the knob for professional users. Double functions and knob type coding switch are SEETEC's exclusive technology feature, which will bring you more convenient and rapid operate feeling.

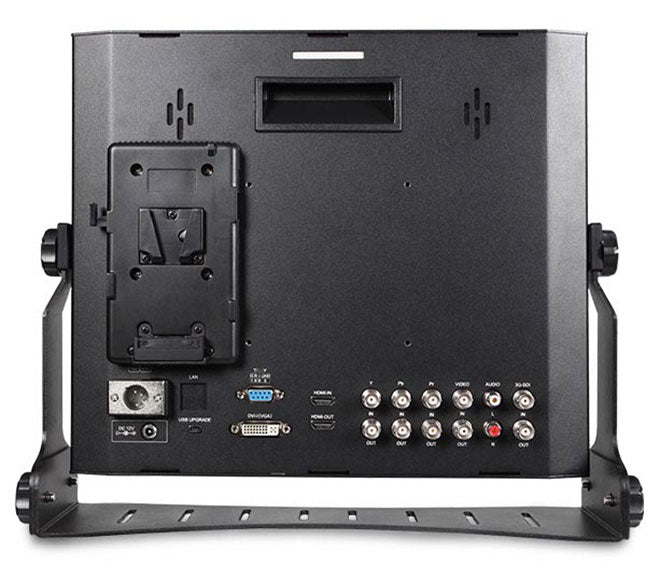

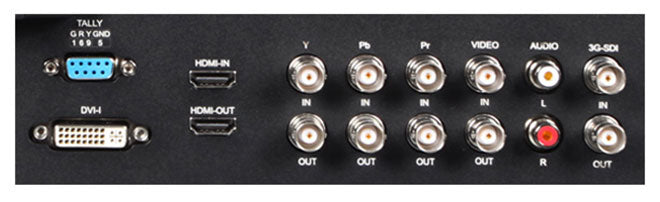

Multiple Inputs and Outputs
Input:
3G-SDI X 1
HDMI X 1
YPbPr X 3
DVI X 1
Video X 1
Auido (L/R) X 2
Input:
3G-SDI X 1
HDMI X 1
YPbPr X 3
DVI X 1
Video X 1
Auido (L/R) X 2
Output:
3G-SDI X 1
HDMI X 1
YPbPr X 3
Video X 1
3G-SDI X 1
HDMI X 1
YPbPr X 3
Video X 1
Audio:
Stereo Headphone
Internal Speaker
Stereo Headphone
Internal Speaker

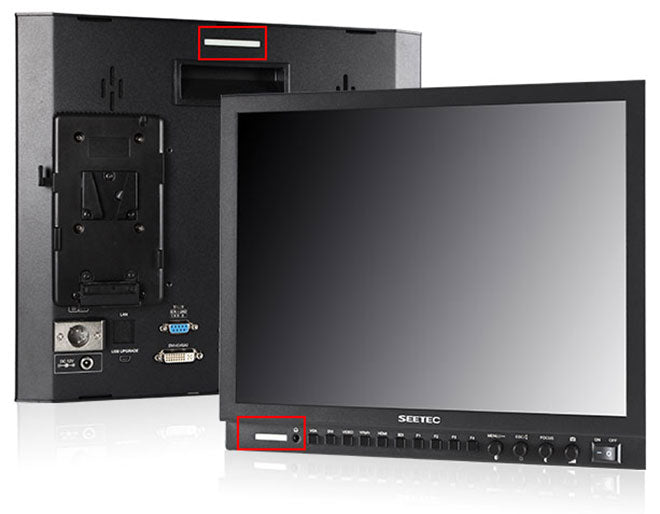

3-color Tally Light
Both front and rear side
There is front and rear TALLY lights for with 3 colors display (Red,Green,Yellow), and controlled via DB-9 ports on the rear panel.
Both front and rear side
There is front and rear TALLY lights for with 3 colors display (Red,Green,Yellow), and controlled via DB-9 ports on the rear panel.

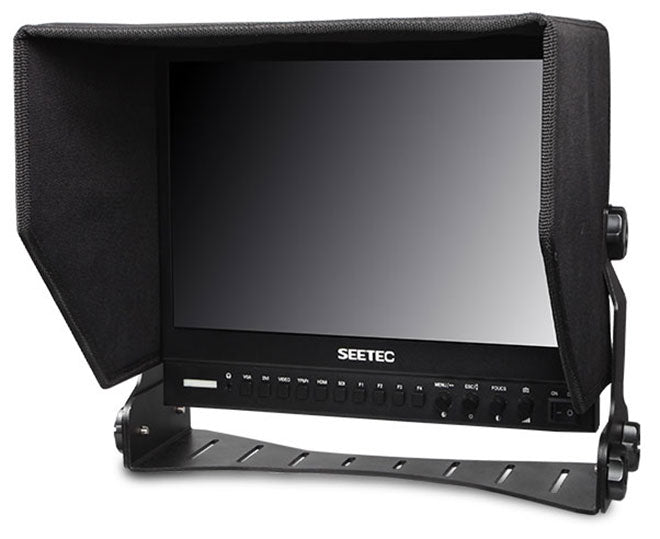

Portable Sunshade
New extended screen hood, to acquire the ideal visual effect in almost all environments.
New extended screen hood, to acquire the ideal visual effect in almost all environments.
Standard Accessories:
1× Mini HDMI Cable
1× V Battery Plate
1× 1.5A Power Adapter
1× Tally Kit
1× Sunshade
1× U bracket
1× Operation Manual
1× V Battery Plate
1× 1.5A Power Adapter
1× Tally Kit
1× Sunshade
1× U bracket
1× Operation Manual
Features:
1. Wide view angle, HD 1024×768, bright, colorful display
2. HDMI, 3G-SDI, Ypbpr, Video, Audio(L/R) inputs and HDMI, 3G-SDI, Ypbpr, Video loop-through outputs
3. Special Features:
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom All
* U/D & L/R Zoom
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Camera Mode
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom All
* U/D & L/R Zoom
4. Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker
5. Built-in LED tally indicators (Red, Green, Yellow)
General
Input Voltage: DC9～24V
Power Consumption: ≤15W
Working Temperature: -10°C~50°C
Storage Temperature: -20°C~60°C
Unit Size: 331.1L×282.6H×33.8D mm (W/O Bracket)
Unit Weight: 2.07kg (W/O Bracket)/ 2.60kg (W/Bracket)
6. Power using included 12-volt supply or use standard 4-pin XLR
Display Spec.
Screen Size: 15"
Resolution: 1024×768 pixels
Pixel Pitch: 0.297(H)×0.297(V) mm
Aspect Ratio: 4:3
Brightness: 350cd/m²
Contrast Ratio: 800:1
Backlight: LED
Viewing Angle: 80°/80°(L/R) 65°/80°(U/D)
Input
1 X BNC: 3G-SDI
1 X HDMI: HDMI
3 X BNC: YPbPr
1 X DVI-I: DVI-I
1 X BNC: Video
2 X RCA: Audio(L/R)
Output
1 X BNC: 3G-SDI
1 X HDMI: HDMI
3 X BNC: YPbPr
1 X BNC: Video
Audio
Audio Out: Stereo Headphone, Speaker
SDI Support Format
480i/576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
HDMI Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
Screen Size: 15"
Resolution: 1024×768 pixels
Pixel Pitch: 0.297(H)×0.297(V) mm
Aspect Ratio: 4:3
Brightness: 350cd/m²
Contrast Ratio: 800:1
Backlight: LED
Viewing Angle: 80°/80°(L/R) 65°/80°(U/D)
Input
1 X BNC: 3G-SDI
1 X HDMI: HDMI
3 X BNC: YPbPr
1 X DVI-I: DVI-I
1 X BNC: Video
2 X RCA: Audio(L/R)
Output
1 X BNC: 3G-SDI
1 X HDMI: HDMI
3 X BNC: YPbPr
1 X BNC: Video
Audio
Audio Out: Stereo Headphone, Speaker
SDI Support Format
480i/576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
HDMI Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
General
Input Voltage: DC9～24V
Power Consumption: ≤15W
Working Temperature: -10°C~50°C
Storage Temperature: -20°C~60°C
Unit Size: 331.1L×282.6H×33.8D mm (W/O Bracket)
Unit Weight: 2.07kg (W/O Bracket)/ 2.60kg (W/Bracket)
