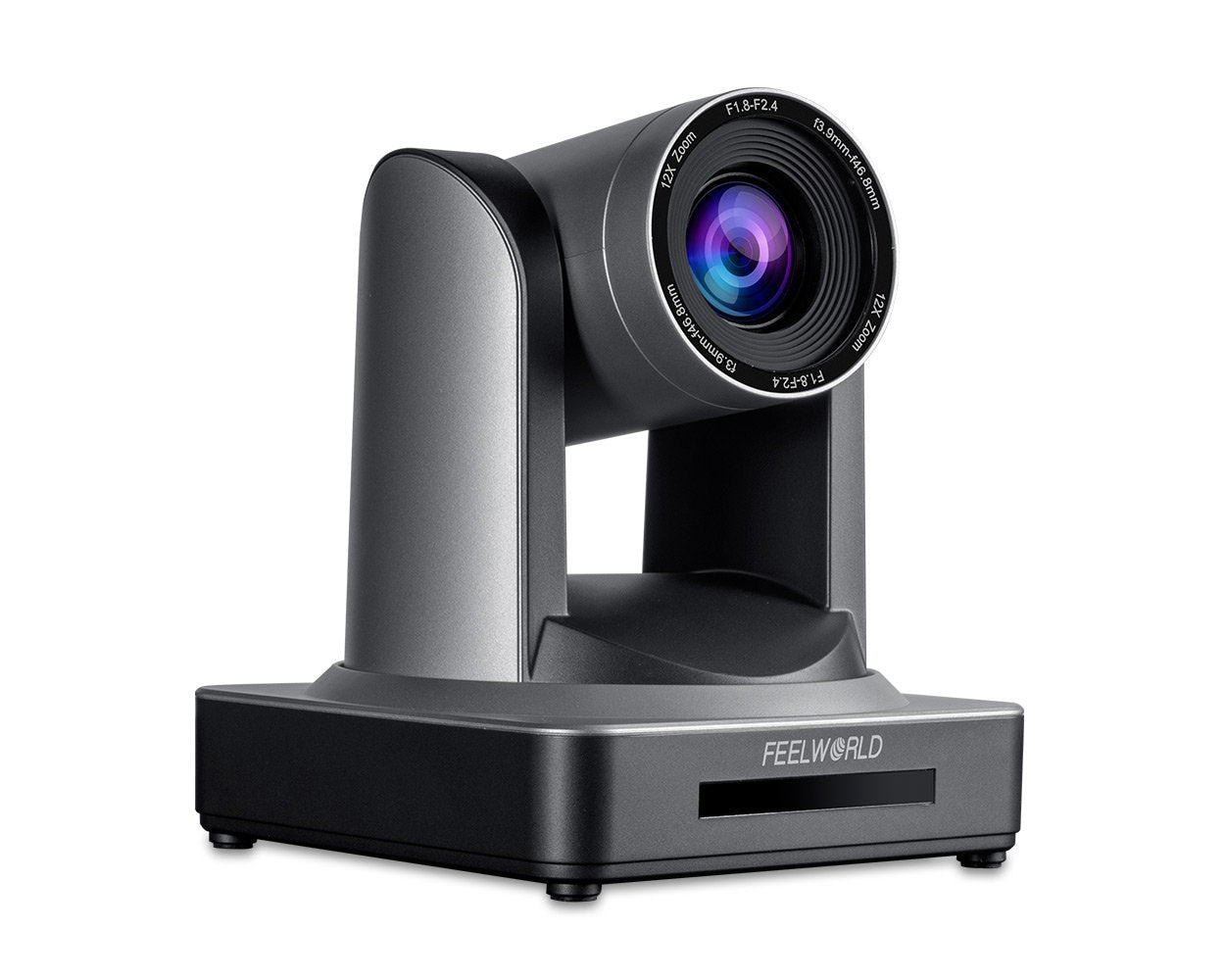

FEELWORLD POE12X Smart PTZ Camera 12X Optical Zoom USB SDI HDMI IP Live Streaming 1080P@60fps PoE Supported

FHD Professional PTZ Camera
The FEELWORLD POE12X is a full HD 1080P60 PTZ camera with 12x optical zoom, featuring simultaneous video output via USB, 3G-SDI, HDMI and LAN interfaces. It supports PoE, enabling data and power transmission over a single Ethernet cable easily, making it ideal for video conferencing, education, live streaming, broadcasting and church events.

Superior Compatibility
SDI+HDMI+USB+LAN Video Outputs Simultaneously

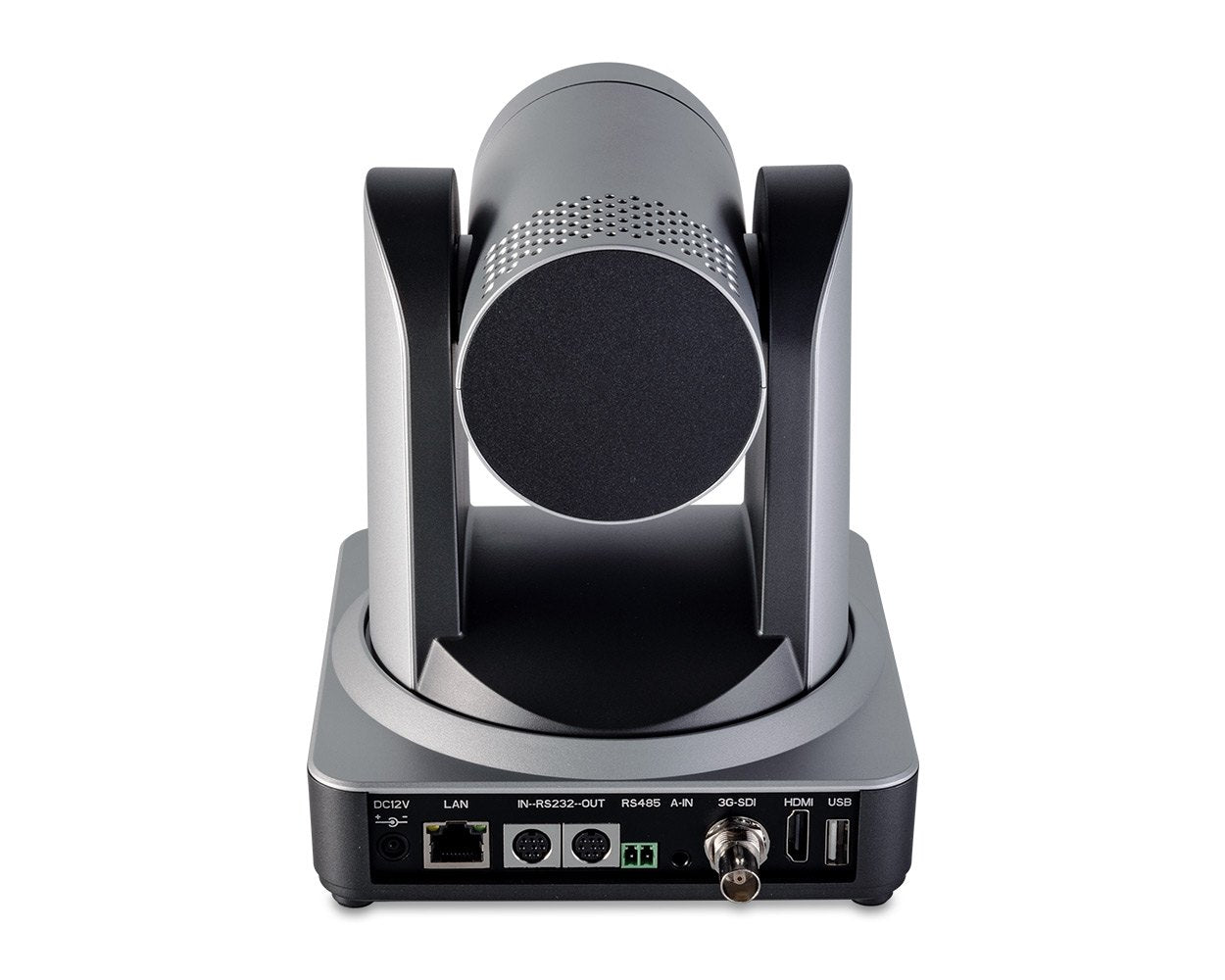

POE12X is equipped with 3G-SDI,HDMI,LAN and USB2.0 outputs which can output video simultaneously. LAN supports POE powered and IP control. The control interface RS232/RS485 connect with PTZ controller to control PTZ camera, and Audio in can be connected with microphone.

Multi-cam Live Streaming Solution
1.You can use two or three 4K10X for medium live streaming, and use three or four 4K10X for large live streaming.Use with FEELWORLD L2 PLUS/L4 video switcher, can be monitor in real-time and connect PC to play PPT.
2.PTZ control: In the same LAN, you can easily control 4K10X via L2 PLUS/L4 or KBC20 controller.
3.Stream to Platform: Through USB/Ethernet, you can stream on your favorite platforms.

Unparalleled FHD Video Quality
Adopts 1/2.8 inch 2.07 megapixel high quality CMOS sensor, that features up to a 1920x1080 FHD resolution at 60 frames per second under HDMI,SDI and network stream,experience the full high definition high and smooth quality.

12X Optical Zoom
12X optical zoom gets you closer without compromising color, detail, or tone.

Accurate and Sensitive Auto Focus
In auto focus mode, POE12X allows you to always focus on the correct part and accurately capture your facial expressions.

Low Light Technology, Excellent performance under any environment
Featuring advanced low-light technology, it automatically adjusts brightness for optimal viewing. Every moment is captured clearly, even in dim or backlight environments. With exceptional performance and video quality, live streaming and recording become incredibly convenient.

Silent and Smooth PTZ Movement
POE12X can be controlled remotely to rotate 340° (±170°) horizontally and 120°(-30°,+90°C) vertically in an accurate, smooth and silent way.

Power over Ethernet
Just with a single Ethernet cable, you can power for device. And control, stream UHD video and audio, simplifying the setup.
Note: 1. You must use a CAT6 or higher Ethernet Cable to ensure normal operation;2. Make sure your Router or Network Switch supports PoE to power the camera through the Ethernet cable. (the Switch at least comply with the IEEE802.3af/at standard,the output voltage 48V or above).

Easy 10 Preset Setting
10 Preset positions by IR remote controller，you can save pan, tilt, and zoom settings, and smoothly transitions between them at the touch of a button. Up to 255 preset positions via network control or keyboard controller.

Versatile Ways to Control Your Camera
You can Pan, tilt, and zoom with the hand-held remote to see everything in your workspace. You can also get more control ways via connect interface. Note: The distance of IR remote control about 10M, the higher of battery level, the better effect.

Remote Controller Instruction

Various Installation Methods
The camera can be installed on wall,tripod and celling, you can also put it on the desk directly.Applicable to different usage scenarios.
Note: The bracket not included

Product Overview

Specifications

Camera Parameters

Input/output Interface

PTZ Parameters

Video Format

Other Parameters

Accessories

Pack List:
1× Video Camera
1× Remote Control
1× RS232 Control Cable
1× RS485 Terminal Block
1× USB Cable
1× Power Adapter
1× EU Standard Power Cable
1× US Standard Power Cable
1× Manual
