FEELWORLD P6XL 6 Inch Aluminium Built-in Battery DSLR Camera Field Monitor Touch Screen 4K HDMI High Brightness 1200nit
Regular price
$199.99
Shipping calculated at checkout
Only 1 in stock
. Stock in US, EU, JP, AU, CA, RU local warehouse
US/ CA/ RU: 3-7 days delivery
EU/ AU: 3-10 days delivery
JP: 2-3 days delivery
. Shiping Worldwide 200+ Country
7-10 days delivery.
. Warranty: One year warranty time and 14 days return and refund for US, EU, JP, AU, RU.
. VAT for EU customers: The VAT will be charged when Europe customers place the order on our official store or Amazon Store.
More detail: Shipping Policy | Warranty Policy
Portable . Rechargeable . Bright
FEELWORLD always focus on the products which can less the photograph equipment for the user, and first release built-in battery monitor P6XL. It built-in 22.2Wh/7.4V battery and can easy to charge via Type-C port, no need to carry additional battery. Equipped with 6-inch full HD high brightness screen, easy to start creative whatever where you go, that's perfect for vloggers, creatives and photographers.
FEELWORLD always focus on the products which can less the photograph equipment for the user, and first release built-in battery monitor P6XL. It built-in 22.2Wh/7.4V battery and can easy to charge via Type-C port, no need to carry additional battery. Equipped with 6-inch full HD high brightness screen, easy to start creative whatever where you go, that's perfect for vloggers, creatives and photographers.

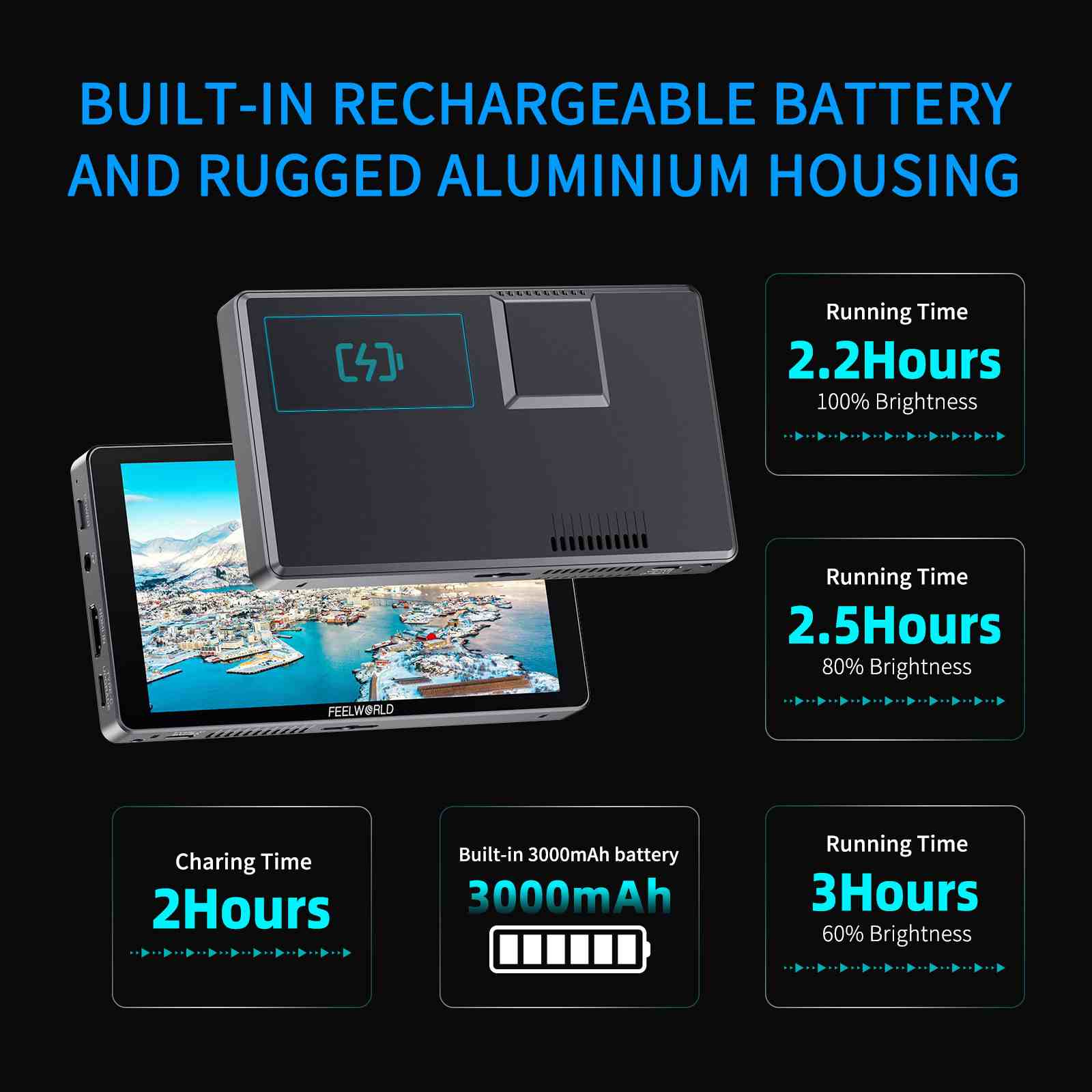

Built-in Rechargeable Battery
The built-in 22.2Wh/7.4 battery makes P6XL portable for mobile shooting and offers 2 hours of run-time at 100% brightness. The monitor features a USB Type-C port that can receive power from charger through the included charging cable.
Note: The voltage of the charger must be 9V；When charging the battery level shows 100% is not means full charged, till the indicator light to turn green that means really full charged.
The built-in 22.2Wh/7.4 battery makes P6XL portable for mobile shooting and offers 2 hours of run-time at 100% brightness. The monitor features a USB Type-C port that can receive power from charger through the included charging cable.
Note: The voltage of the charger must be 9V；When charging the battery level shows 100% is not means full charged, till the indicator light to turn green that means really full charged.
Ultra Portable
The traditional monitor with a about 200g external F750 battery plus the weight of the monitor total at least 500g.The P6XL although built-in battery but its only 332g and the thickness is 17mm, which not only saves the trouble of carrying a pile of batteries but also greatly reduces the weight. Lightweight and slim design allows you to start creation anytime, anywhere.
The traditional monitor with a about 200g external F750 battery plus the weight of the monitor total at least 500g.The P6XL although built-in battery but its only 332g and the thickness is 17mm, which not only saves the trouble of carrying a pile of batteries but also greatly reduces the weight. Lightweight and slim design allows you to start creation anytime, anywhere.
Convenient to Use With Stabilizer
Mobile shooting inevitably requires to use stabilizer, and the reduced weight makes P6XL the preferred choice for use stabilizer during actual workflow.
Mobile shooting inevitably requires to use stabilizer, and the reduced weight makes P6XL the preferred choice for use stabilizer during actual workflow.
6-inch Full HD Screen
Clearly checking and capture every nuance
With extremely high resolution 6-inch IPS panel，provides excellent details,accurately reflect the original colors.Wide viewing clearly present more detailed image.
Clearly checking and capture every nuance
With extremely high resolution 6-inch IPS panel，provides excellent details,accurately reflect the original colors.Wide viewing clearly present more detailed image.
1200Nit, Daylight Viewable
High brightness 1200nit is viewable in almost every kind of light. Indoors, outdoors or anywhere you need.
High brightness 1200nit is viewable in almost every kind of light. Indoors, outdoors or anywhere you need.
Sensitive Touch Screen Control
The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons. Plus, you can also operate via scroll wheel key.
The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons. Plus, you can also operate via scroll wheel key.
Sharp Screenshot + Image Overlay
P6XL supports screenshot and stored via USB flash driver, you can capture any image, then compared with real-time video by semi-transparent image superposition. It is convenient for photographers to compare the composition and correct the displacement during the shooting. In addition, you can also import custom image (must be JPG image).
P6XL supports screenshot and stored via USB flash driver, you can capture any image, then compared with real-time video by semi-transparent image superposition. It is convenient for photographers to compare the composition and correct the displacement during the shooting. In addition, you can also import custom image (must be JPG image).
Full Range of Auxiliary Functions
Load Custom 3D LUTs，Preview Filming Look in Field Shooting
Support to load 32 custom LUTs
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash driver (up to load 32). Import the LUT files to USB flash driver connect to the Type-C port of the monitor via the attached USB-A to USB-C adapter.
Support to load 32 custom LUTs
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash driver (up to load 32). Import the LUT files to USB flash driver connect to the Type-C port of the monitor via the attached USB-A to USB-C adapter.
HDR Monitoring
What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty，it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.
What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty，it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.
Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. When the function is turned on separately, you can also move its the horizontal or vertical position in the menu. P6XL becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. When the function is turned on separately, you can also move its the horizontal or vertical position in the menu. P6XL becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
4K HDMI Input，High Speed Transmission
P6XL equipped with a 4K HDMI input, supports up to 2160p/30p signal, compatible with the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.
P6XL equipped with a 4K HDMI input, supports up to 2160p/30p signal, compatible with the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.
11 Languages Supporting
P6XL built-in up to 11 languages, that means P6XL is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!
P6XL built-in up to 11 languages, that means P6XL is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!

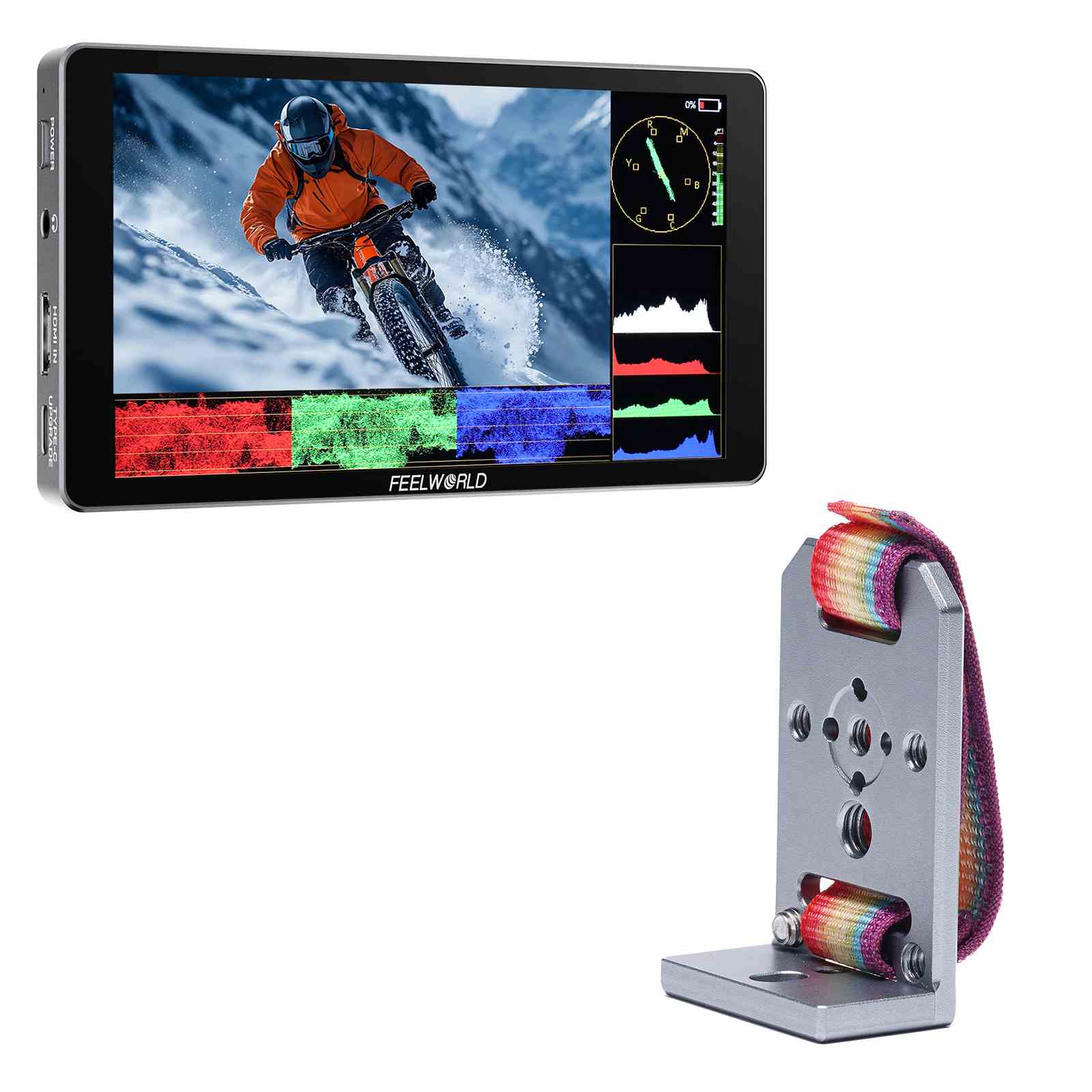

Mini Hot Shoe Mount Adapter
The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, led light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.
The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, led light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.
Portable Sun-hood
The standard portable sun-hood can easy to resist the strong light, and easy to install.
SPECIFICATIONS
Display Spec.
| Model | P6XL |
| Screen Size | 6" IPS |
| Resolution | 1920x1080 pixels |
| Pixel Pitch | 0.069 (H) × 0.069 (V) (mm) |
| Aspect Ratio | 16:9 |
| Brightness | 1200cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
Signal Input
| 1 X HDMI | HDMI 1.4 |
Other Interface
| 1 X USB | USB-C (Firmware update/LUT file import) |
Audio
| Audio | 3.5mm Stereo Headphone |
Battery
| Battery Capacity | 3000mAh/22.2Wh |
| Voltage | 7.4V |
| Running Time | About 2 hours (at 100% brightness/5-speed fan) |
| Charing Time | About 2 hours |
Power Input
| USB | Type-C 9V/2A (compatible with PD2.0/3.0 fast charging protocol; Samsung AFC fast charging protocol; HUAWEI FCP fast charging protocol; QC2.0/3.0 fast charging protocol) Note: the voltage of the charger must be 9V |
HDMI Input Support Format
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/23.98) |
| 3840x2160p (30/29.97/25/24/23.98) |
General
| Power Consumption | charging + working:≤21W; charging alone : ≤14W; full charged working alone:≤9W |
| Working Temperature | -20°C~70°C |
| Storage Temperature | -30°C~80°C |
| Install Way | 1/4"-20 Thread Socket (bottom) |
| Unit Size | 154x87x17(mm) |
| Unit Weight | 332g |
| Color Box Size | 186*214*80(mm) |
| Outer Carton Qty | 10 |
| Outer Carton Size | 465*200*326 (mm) |
| Gross Weight | 8.42kg |
ACCESSORIES
Packaging List:
1× Monitor
1× A-A HDMI Cable
1× Micro HDMI Cable
1× USB-A to USB-C Cable
1× Mini Hot Shoe Mount+ Hex wrech
1× USB-A to USB-C Adapter
1× Sunshade+Frame
1× Cable Management Tie
1× Manual
1× Monitor
1× A-A HDMI Cable
1× Micro HDMI Cable
1× USB-A to USB-C Cable
1× Mini Hot Shoe Mount+ Hex wrech
1× USB-A to USB-C Adapter
1× Sunshade+Frame
1× Cable Management Tie
1× Manual
