FEELWORLD FH7 7 inch Full HD1920x1200 Field Monitor Peaking Focus Video Assist 4K HDMI Input Output

Regular price $199.99

Shipping calculated at checkout

Only 22 in stock

Collapsible tab

Collapsible tab

 . Stock in US, EU, JP, AU, CA, RU local warehouse

US/ CA/ RU: 3-7 days delivery
EU/ AU: 3-10 days delivery
JP: 2-3 days delivery
. Shiping Worldwide 200+ Country
7-10 days delivery.

If the local warehouse out stock, we will send the email inform to you that local warehouse estimated in stock date. According to the customer needs, you can choose the wait the local warehouse in stock or shipment from the China at once.

More detailShipping Policy | Warranty Policy

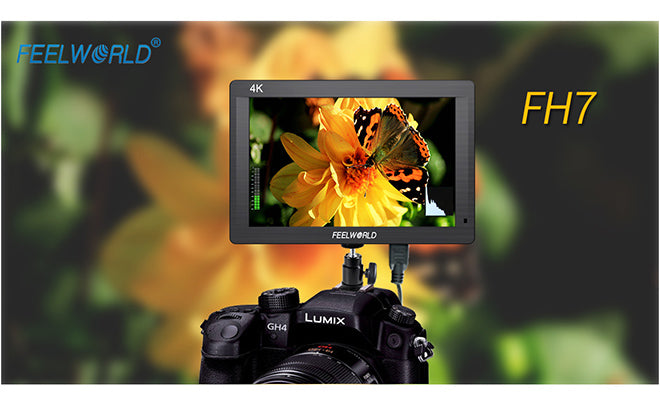

 Let your Video Shooting Become Easier

【7 Inch Full HD 1920x1200 IPS Screen】Featuring a 323 PPI and 1920 x 1200 Resolution IPS LCD panel, the FEELWORLD FH7 DSLR on camera monitor gave you beautiful images and a precise focus to achieve the result.
【4k HDMI Input/ Output】You can connect monitor to various 4K cameras, it's the ability to display live picture on multiple displays, convenience director and photographer monitoring at the same time.
【Flexible Control for Advanced Functions】4 assignable function buttons for direct access to the functions you need to adjust, such as histogram, peaking focus assist, false color, exposure, check field, nine grid and zoom.
【Portable and Light-weight】Thin and light at 23.1mm and 310g lightweight, easy to install handheld gimbal transition between scenes effortlessly, make sure your images accurately expose and focus every shot.
external camera monitor
More Auxiliary Functions
More professional functions assist users to accurately monitor when shooting, making and playing movies/ videos.
field world monitor
camera monitors
Precise Color to Fuel Your Creative Flow
Richer, Brighter, Most Colorful
With Full HD 1920x1200 high resolution Precise Color, an impressive 323 PPI (Pixels Per Inch), Sharper images, brings you the perfect visual experience.
external camera monitor dslr
IPS Wider View Angle 160°
Viewing Angle become very important, as the camera operators may shift his/her position relative to the monitor during the shot. FH7 IPS 160° wide viewing angle allows the operator to have a clear, easy-to-see image as their position shifts.
field monitor dslr
True Color · Professional Color Calibration
Use Rec.709 color standard
Accurate color reproduction
small monitor
4K HDMI Input/ Output
Support most DSLRs and camcorders.
portable lcd monitor for dslr cameras
Multiple Installations
FEELWORLD FH7 is equipped with standard 1/4 hole (bottom), easy to install DSLR Rig, Camcorder Kit, Handheld Stabilizer, Video Camera Crane, combined with image flip function, convenient for field shooting.
hd focus camera monitor
Flexible Battery System
The FH7 has a flexible battery system that supports F970 battery plate (standard), D28S/D54, LP-E6 and U60 battery plate (optional), and also can powered by power adapter (optional). Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.
focus monitor

Package Include

Standard Accessories:
1× Mini HDMI Cable
1× Sunshade
1× Hot Shoe Mount
1× F970 Battery Plate
1× Operation Manual

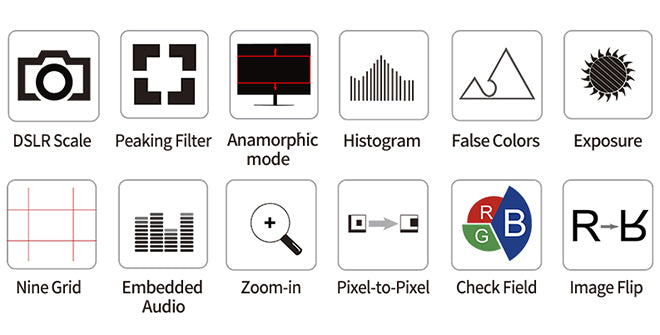

Video Assist Functions
* Brightness Histogram
* Embedded Audio
* Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
* False Colors
* Zebra Exposure (1-100IRE adjustable)
* Check Field (Red, Green, Blue, Mono)
* Scan Mode (Under Scan, Over Scan)
* Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
* Image Flip (H, V, H/V)
* Image Freeze
* Center Marker
* Screen Marker (80%,85%,90%,93%,96%, 2.35:1)
* Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
* Color Temperature Adjustment
* Nine Grid (Zoom one of the images to realize the full screen)
* Zoom (4X, 9X, 16X)
* Aspect Ratio
* Pixel to Pixel
* Zoom All (0~100 adjustable)
* U/D Zoom (0~100 adjustable)
* L/R Zoom (0~100 adjustable)

Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left:Dark, Right:Bright)and a stack of the number of pixels at each level of brightness along the vertical axis.

camera field monitor

Embedded Audio Monitoring
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring. The audio meter is green, and will turn yellow when exceeds -20dB, and turn red when exceeds -9dB.

4k video monitor

Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the putline color between red, green, blue according to different tone of the subject.

4k dslr monitor

False Colors
The False Colors filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.

hdmi camera monitor

Exposure (zebras)
The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern. It is considered overexposed and displays the moving warning lines onto the over exposed areas. 1-100IRE adjustable.

4k field monitor

Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.

hd 501 monitor

Zoom In (4X, 9X, 16X)
Image magnification is HD signal in any part, an amplification for high quality close-up.

5  camera monitor

Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
Built-in selection of no squeeze, 1.3× or 2.0× allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not de-squeeze in camera. A 2.0× mag mode, magnifies the center of your image so you can check the focus of your scaled image.

5” on camera monitor

Image Flip
The Horizontal,Vertical and Hor&Ver of the image around flip.

5 monitor dslr

Nine Grid
Zoom one of the images to realize the full screen. You can switch the Mark color between Red, Green, Blue, White, Black according to different tone of the subject.

external monitor for dslr

Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.

5 inch field monitor

Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1). You can switch the Mark color between Red, Green, Blue, White and Black according to different tone of the subject.

monitor dslr cameras

Ratio Marker
(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1). Frame blanking zone includes 6 Levels, from 0-6 (Transparent to Black). You can switch the Mark color between red, green, blue, white and black according to different tone of the subject.

5 inch camera monitor

Specifications
Display Spec.
  • Screen Size: 7" IPS
  • Resolution: 1920x1200 pixels
  • Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm)
  • Aspect Ratio: 16:10
  • Brightness: 450cd/m²
  • Contrast Ratio: 1200:1
  • Backlight: LED
  • Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)
Input/ Output
  • Input: 1 X 4K HDMI
  • Output: 1 X 4K HDMI
  • Audio: 3.5mm Stereo Headphone, Speaker
  • HDMI Input/ Output Support Format: 480i/576i/480p/576p; 1080i (60/59.94/50); 720p (60/59.94/50/30/29/25/24/23.98); 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF); 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
General
  • Input Voltage: DC7~24V
  • Consumption: ≤8W
  • Connector: DC
  • Working Temperature: -20°C~55°C
  • Storage Temperature: -30°C~65°C
  • Install Way: 1/4"-20 Thread Socket (bottom)
  • Battery Plate: F970 (Standard); D28S/D54, LP-E6, U60 (Optional)
  • Unit Size: 180Lx120Hx23.1D (mm)
  • Unit Weight: 310g/340g (With F970 Battery Plate)
Compatible Battery
  • Compatible Battery:Sony F970, F960, F950,F930, F770, F750, F730, F570, F550, F530, QM91D, QM91, QM90D, QM90, QM71D, QM71, QM70D, QM70, QM51D, QM51, FM71, FM70 series.
  • (Note battery not include, need purchase sperate)
