Q41 Quad 4.5" 2RU Rackmount Monitor 3G-SDI 4KHDMI AV input and output
Shipping calculated at checkout
Only 10 in stock
Shipping
US/ CA: 3-7 days delivery local warehouse/ Amazon
EU/ AU: 3-10 days delivery Amazon
JP: 2-3 days delivery Amazon
Worldwide 200+ Country：7-10 days delivery
VAT for EU customers:The VAT will be charged when Europe customers place the order on our official store or Amazon Store.
Warranty
1 year warranty time and 14 days return.
Return to US,CA, EU, JP, AU local warehouse, other countries return to HK warehouse.
US subsidiaries provide fast and convenient local after-sales service.
More detail: Shipping Policy | Warranty Policy
Ideal Monitoring Solution for Broadcast Studio
The broadcast studio need to use multiple camera inputs simultaneously.FEELWOLRD Q41 has four independently controlled screens that can monitor images from different signals.
Fly Away Kit
For live production of large-scale event, performance, competition and other projects, always need to consider the portability of equipment.Take your Q41 monitors anywhere in the world by mounting them in portable fly away kits.The metal housing can effectively dissipate the heat to prevent the portable rack trap too much heat.
Perfect for Mobile Broadcast Truck
In mobile broadcast truck, you need to save every inch of space.Q41 with compact design, ideal for install on monitor wall of broadcast truck.

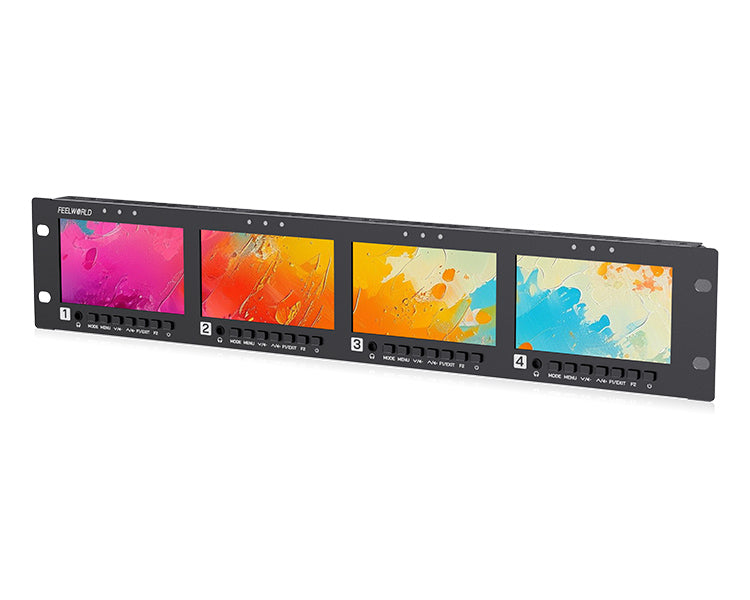

4*4.5-inch HD Screen
Q41 is equipped with 4 independently 4.5-inch high resolution IPS panel，a wider field of view and clearly present more detailed image. 8bit color depth with 16.7M colors display.

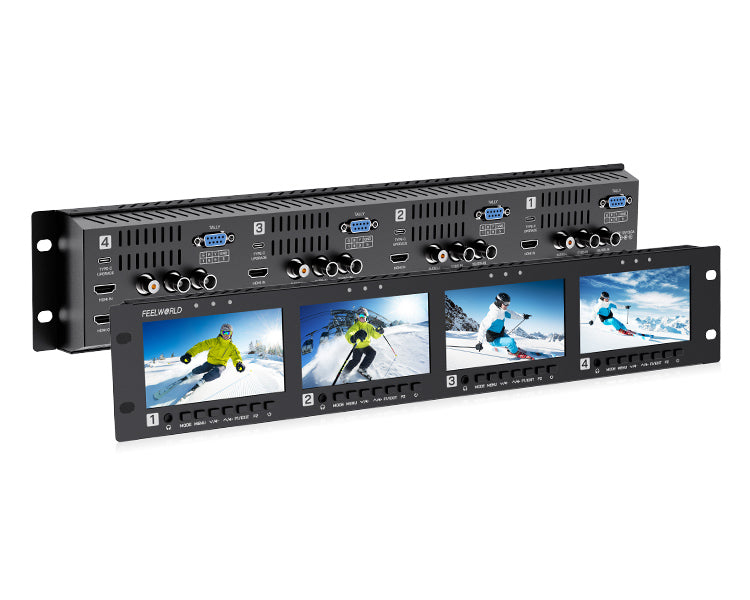

2RU Rackmount Design
Suitable for 19 inch width cabinet installation with 2RU mounting height and slim metal design,occupying only a small part of volume， ideal for installation in equipment racks and monitor walls.
New MENU Interface, More Intuitive
Q41 adopts new UI menu, take the software functions are iconized, it is more convenient and quickly to operate the function.
Full Range of Auxiliary Functions
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. The user stores the LUT document in the root directory of the USB flash drive, and imports via connecting the USB-A to USB-C adapter and the USB-C interface of the device (up to 32 custom files can be imported), maintaining creative intent, always.
Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. Q41 becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
Intuitive Button Operation

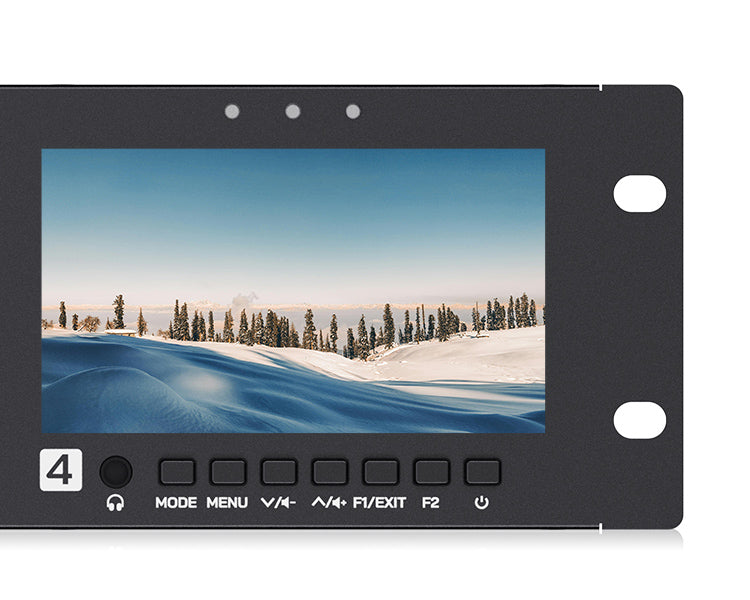

Each panel is equipped with intuitive buttons to control the screen independently, the 2 custom function keys can be set the common function as shortcut key. All buttons clear at a glance, easy to setup.

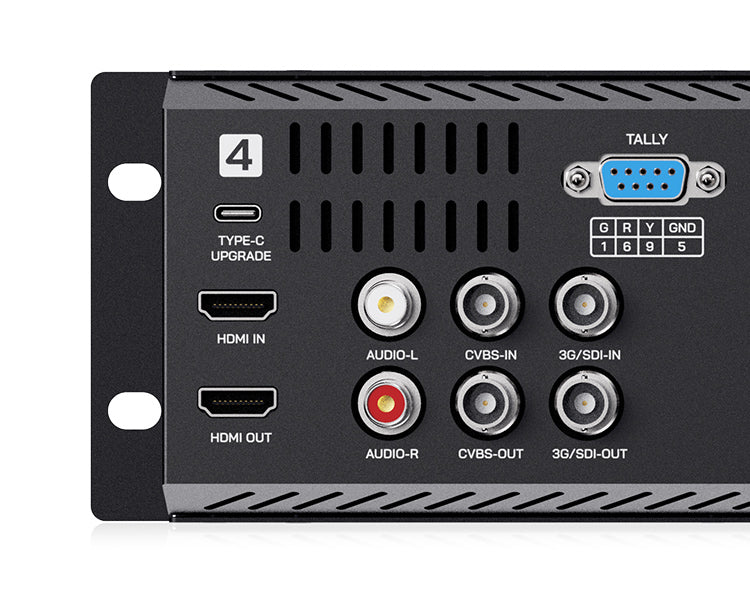

The each panel with 3G-SDI, HDMI 2.0 support up to 4K 60Hz and CVBS video signal inputs and outputs. Plus, it also have L/R audio. Suitable for multiple applications.
Q41 with Tally function, perfect for live broadcasts.The front of each screen including tally light displayed in red, green or yellow to signify on air, preview or recording.This means during live production you will always know when you are recording or on-air. Each rear panel is equipped with an industry standard parallel pin Tally signal connector.

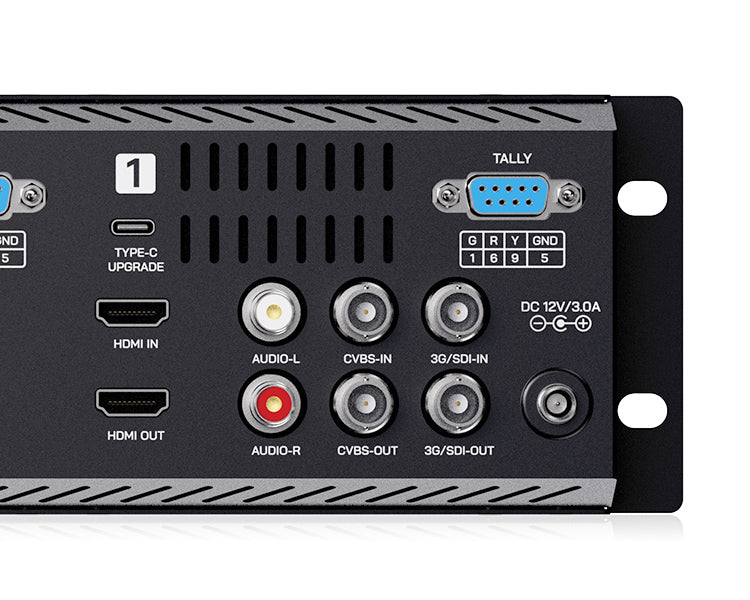

The monitor comes with DC 12V direct plug-in port，you can use the attached 3A power adapter to power it.
Built-in up to 11 languages, that means T51 PLUS-H is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!
| Model | Q41 |
| Screen Size | 4.5"×4 |
| Resolution | 1280×720 pixels |
| Dot pitch | 0.0771（H)x0.0771(V) mm |
| Aspect Ratio | 16:9 |
| Brightness | 350cd/m² |
| Contrast Ratio | 1200:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
| 1 X BNC | 3G-SDI |
| 1 X HDMI | HDMI 2.0 |
| 1 X BNC | Video |
| 2 X RCA | Audio(L/R) |
| 1 X BNC | 3G-SDI |
| 1 X HDMI | HDMI 2.0 |
| 1 X BNC | Video |
| Audio Out | Stereo Headphone × 1 |
| 720p(60/59.94/50/30/29/25/24/23.98) |
| 1080i(60/59.94/50) |
| 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
| 3840×2160p (60/50/30/29.97/25/24/23.98) |
| 4096×2160p (60/50/30/29.97/25/24/23.98) |
| Input Voltage &Current | DC 12V/3A |
| Power Consumption | ≤32W |
| Power Connector | DC |
| Working Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |
| Install Way | Rackmount |
| Unit Size | 482.5x87.5x35.8 mm |
| Unit Weight | 1832g |
| Outer Carton Qty | 5 |
| Outer Carton Size | 540x480x210(mm) |
| Gross Weight | kg |
1× Monitor
1× 3A Power Adapter
4× Tally Kit
1× USB-A to USB-C Adapter
1× Manual
