FEELWORLD FRM1001G Dual 10.1" 4RU Rackmount Monitor 12G SDI 4K HDMI 1920x1200 IPS
Regular price
$999.99
Shipping calculated at checkout
Only 2 in stock
Shipping
US/ CA: 3-7 days delivery local warehouse/ Amazon
EU/ AU: 3-10 days delivery Amazon
JP: 2-3 days delivery Amazon
Worldwide 200+ Country：7-10 days delivery
VAT for EU customers:The VAT will be charged when Europe customers place the order on our official store or Amazon Store.
Warranty
1 year warranty time and 14 days return.
Return to US,CA, EU, JP, AU local warehouse, other countries return to HK warehouse.
US subsidiaries provide fast and convenient local after-sales service.
More detail: Shipping Policy | Warranty Policy
Perfect 4K Broadcast Quality Monitoring
No matter where you need to monitor 4K SDI or 4K HDMI signals, the FEELWORLD FRM1001G is your ideal choice.It comes with two independent 10.1-inch displays, allowing you to monitor two different signal sources simultaneously.Supports 4K@60Hz input and loop out, and features a 4RU rack-mount design for easy installation in video walls or OB vans.Perfect for broadcasting, post-production, on-set monitoring, flight case systems, OB vans, and more.
No matter where you need to monitor 4K SDI or 4K HDMI signals, the FEELWORLD FRM1001G is your ideal choice.It comes with two independent 10.1-inch displays, allowing you to monitor two different signal sources simultaneously.Supports 4K@60Hz input and loop out, and features a 4RU rack-mount design for easy installation in video walls or OB vans.Perfect for broadcasting, post-production, on-set monitoring, flight case systems, OB vans, and more.

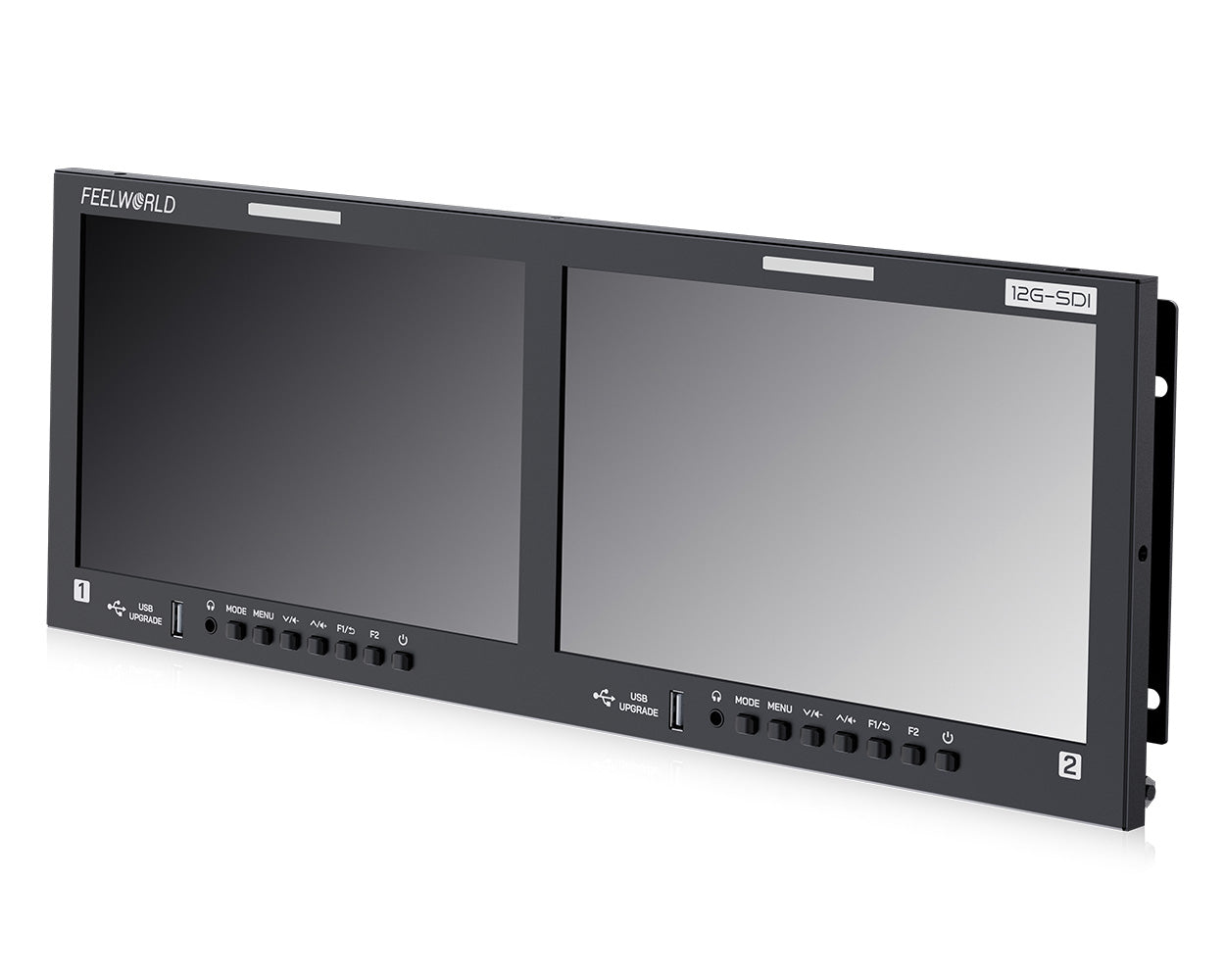

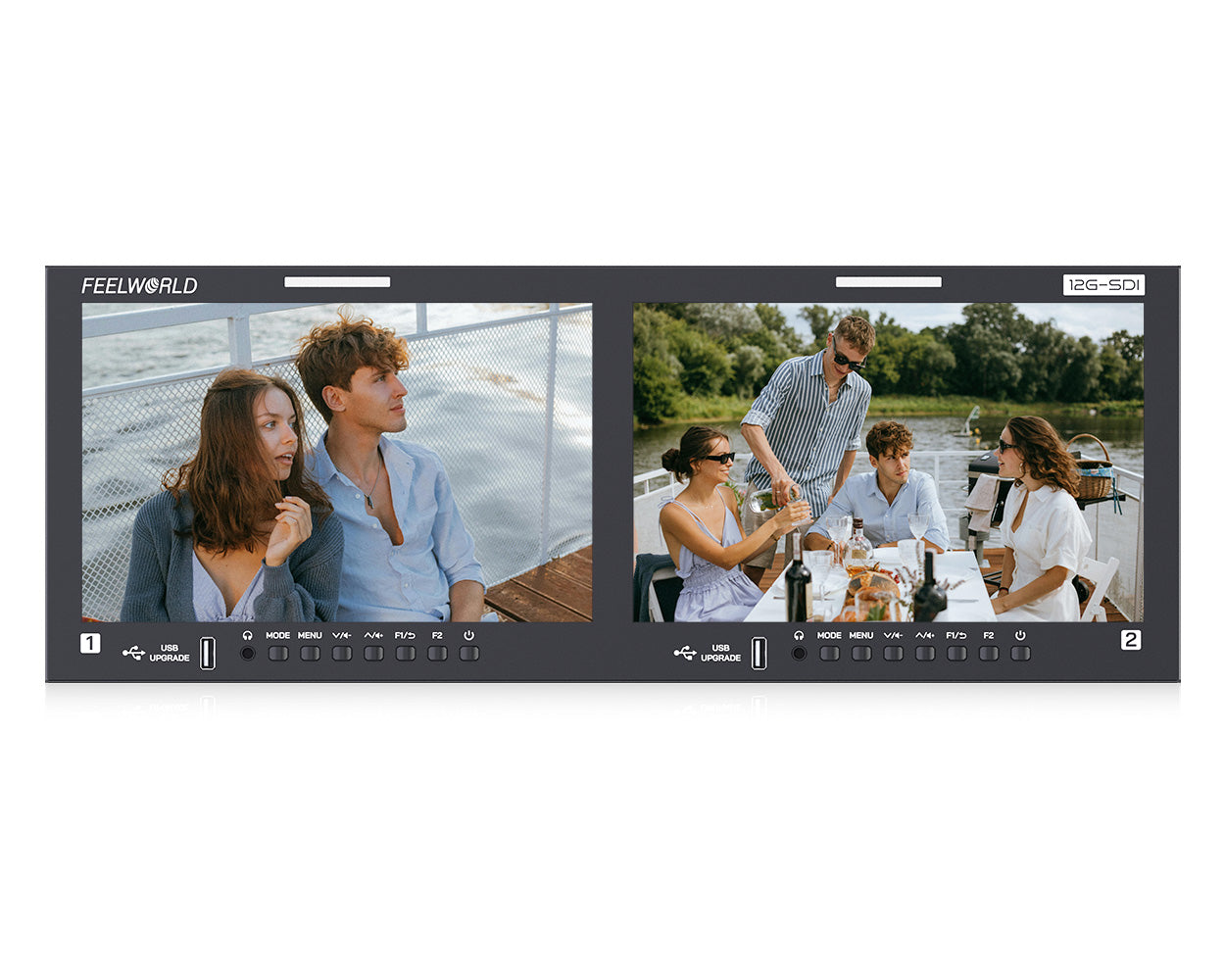

Dual 10.1" Full HD IPS
Clearly checking and capture every nuance
FRM1001G equipped with dual 10.1-inch high resolution 1920x1200 panels that allow you to check out two video signals at the same time, making it easy to create a multi-camera monitoring scenario. Vibrant color reproduction for high-quality imaging.160°wide viewing angle allows you to enjoy a more perfect visual experience.

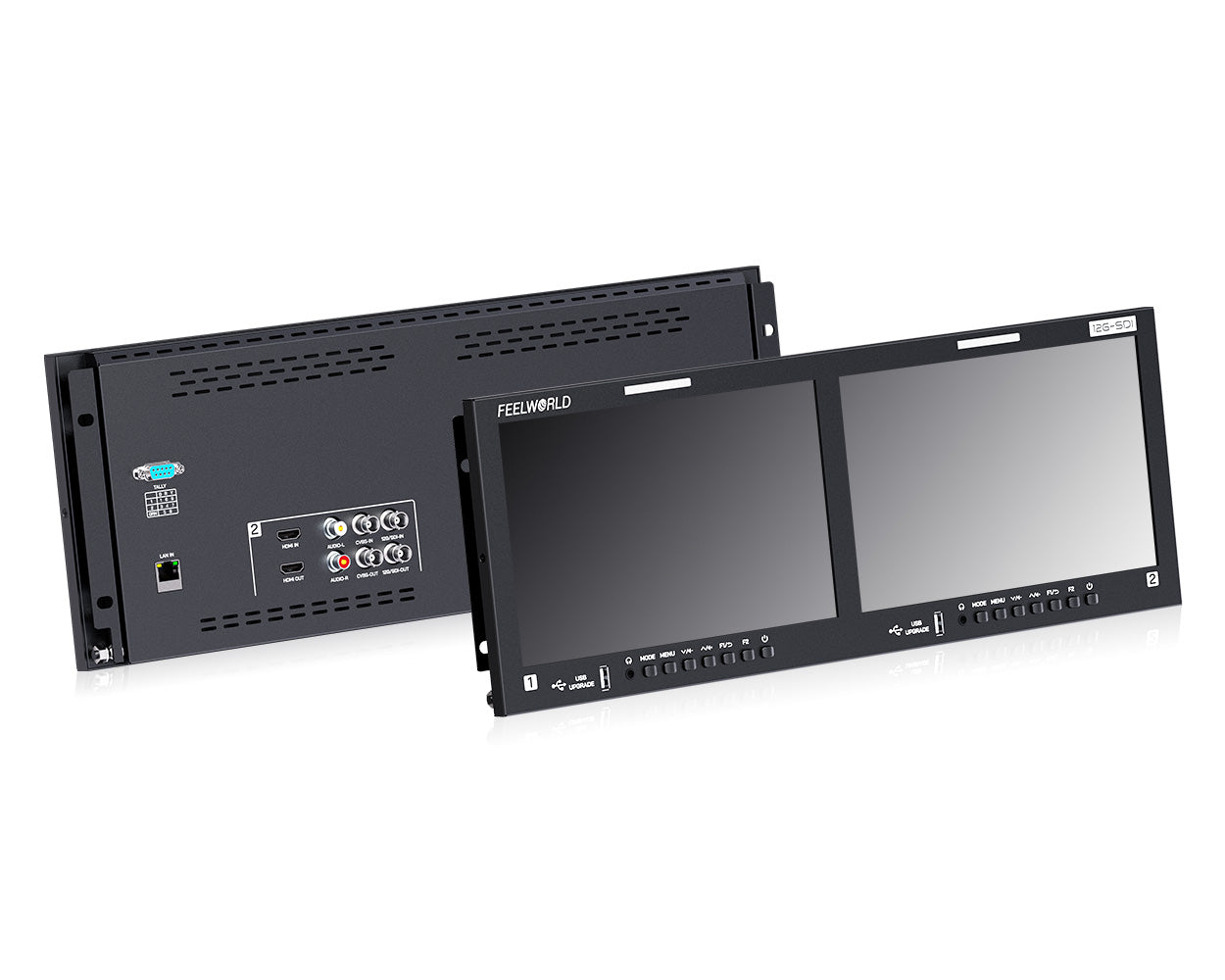

Compact 4RU Rackmount Design
FRM1001G with 4 rack units high, and the thickness only 25mm and a standard 19 inch rack width, this means it is ideal for installation in equipment racks and monitor walls.
FRM1001G with 4 rack units high, and the thickness only 25mm and a standard 19 inch rack width, this means it is ideal for installation in equipment racks and monitor walls.
12G-SDI High Speed Transmission
Adopting 12G-SDI single link technology and compatibility with 6G-SDI/3G-SDI/HD-SDI/SD-SDI, supporting 12Gbps per second transmission rate, better meeting the video transmission needs of high definition and high frame rate.
Adopting 12G-SDI single link technology and compatibility with 6G-SDI/3G-SDI/HD-SDI/SD-SDI, supporting 12Gbps per second transmission rate, better meeting the video transmission needs of high definition and high frame rate.
Full Range of Auxiliary Functions
Load Custom 3D LUTs，Preview Filming Look in Field Shooting
Supports to load 32 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in 4 types(S-Log2,s-Log3, C-Log, V-Log) or upload .cube files define your own creative cinematic style Whatever you like. The user stores the LUT document in the root directory of the USB flash drive, and insert to the USB interface of the device (up to 32 custom files can be imported).
Supports to load 32 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in 4 types(S-Log2,s-Log3, C-Log, V-Log) or upload .cube files define your own creative cinematic style Whatever you like. The user stores the LUT document in the root directory of the USB flash drive, and insert to the USB interface of the device (up to 32 custom files can be imported).
Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can view two independent sources simultaneously and choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. FRM1001G becomes the ideal choice for live production monitoring,so you no longer need to use a separate expensive scopes!
Save your budget
Built-in waveform monitoring, you can view two independent sources simultaneously and choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. FRM1001G becomes the ideal choice for live production monitoring,so you no longer need to use a separate expensive scopes!
SDI Time Code
The monitor supports time code display under SDI signal,including LTC and VITC types，synchronization with the camera. Through the time code, you can quickly and accurately find a specific frame in the video It is particularly convenient to identify specific frame rates in filming and television post production and video production
The monitor supports time code display under SDI signal,including LTC and VITC types，synchronization with the camera. Through the time code, you can quickly and accurately find a specific frame in the video It is particularly convenient to identify specific frame rates in filming and television post production and video production
Flexible and Intuitive Button Operation

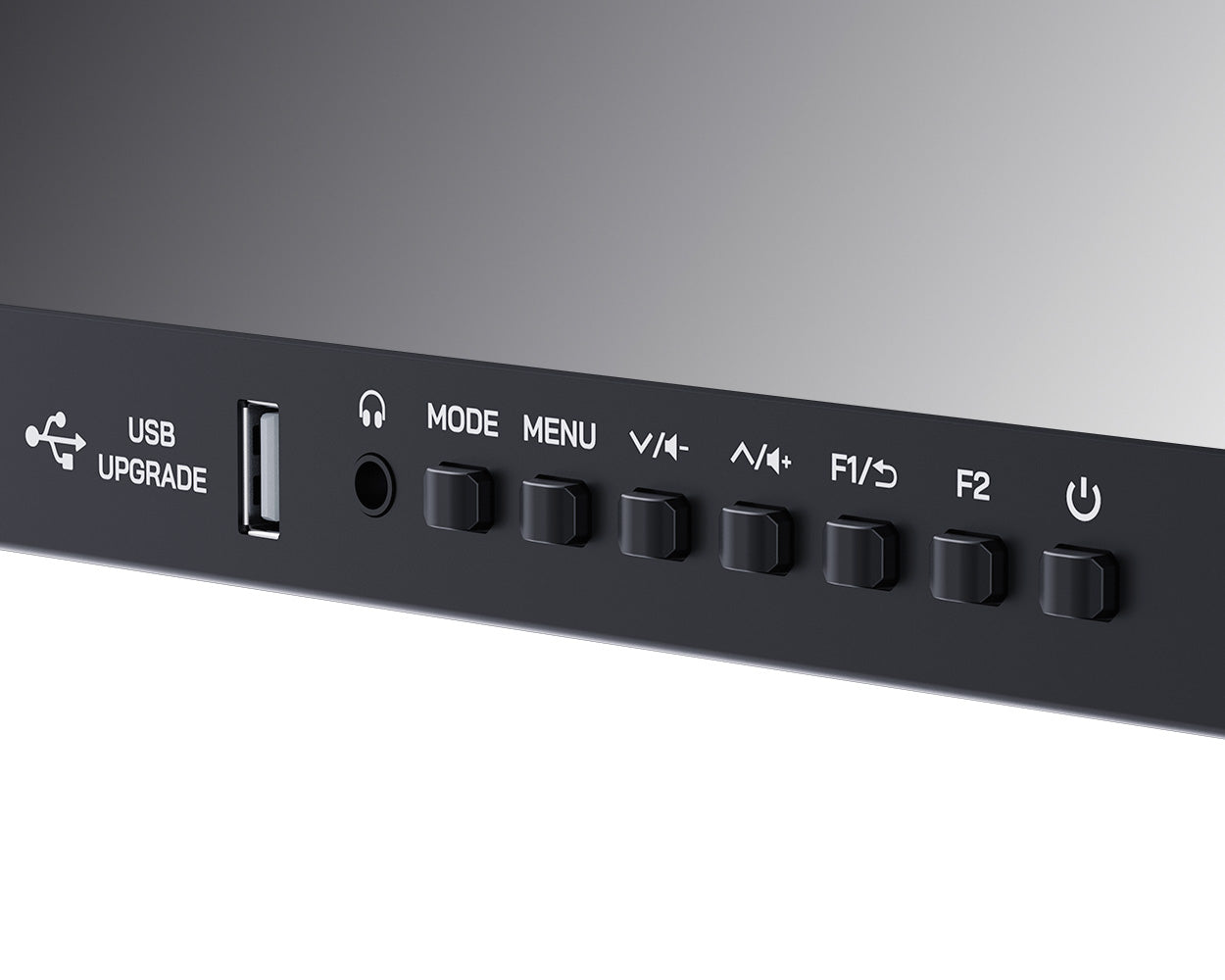

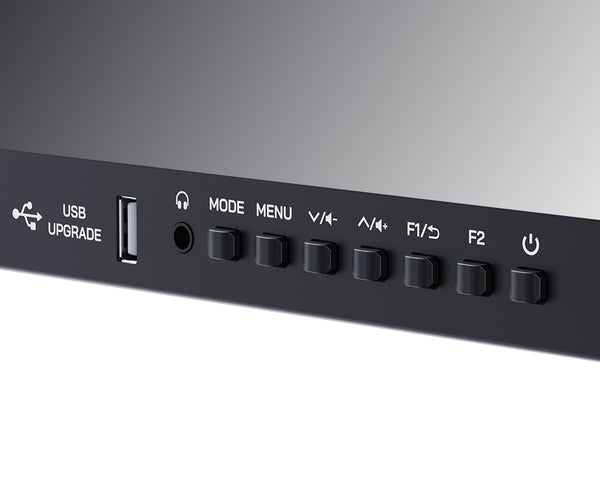

The FRM1001G is equipped with 2 exquisite front panels, each fitted with intuitive buttons that come with independent control screens — enabling quick and simple operation. It also features two F shortcut keys, allowing photographers to pre-set shortcut functions according to the actual needs of the shooting scene and quickly call up the required functions during shooting.
The FRM1001G is equipped with 2 exquisite front panels, each fitted with intuitive buttons that come with independent control screens — enabling quick and simple operation. It also features two F shortcut keys, allowing photographers to pre-set shortcut functions according to the actual needs of the shooting scene and quickly call up the required functions during shooting.
12G-SDI/HDMI2.0 Video Signal
The monitor is equipped with 12G-SDI/HDMI2.0 input and loop out, support up to 4K 60Hz video signals. In addition, the monitor also comes with CVBS and Audio L/R interfaces, meet the different needs.
The monitor is equipped with 12G-SDI/HDMI2.0 input and loop out, support up to 4K 60Hz video signals. In addition, the monitor also comes with CVBS and Audio L/R interfaces, meet the different needs.
3-Color Tally Indicator, Enhance Team Cooperation
FRM1001G features front-facing green, red and yellow Tally indicators on each screen — intuitively showing Preview, On Air and Record status at a glance. Designed for seamless live broadcast workflows, it’s your perfect partner for professional on-site broadcasting.

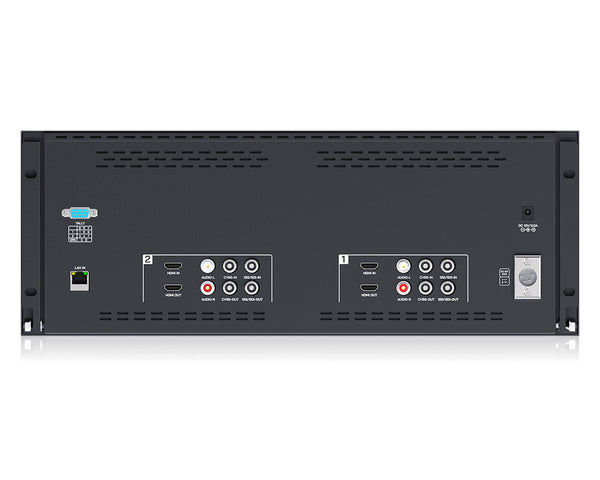

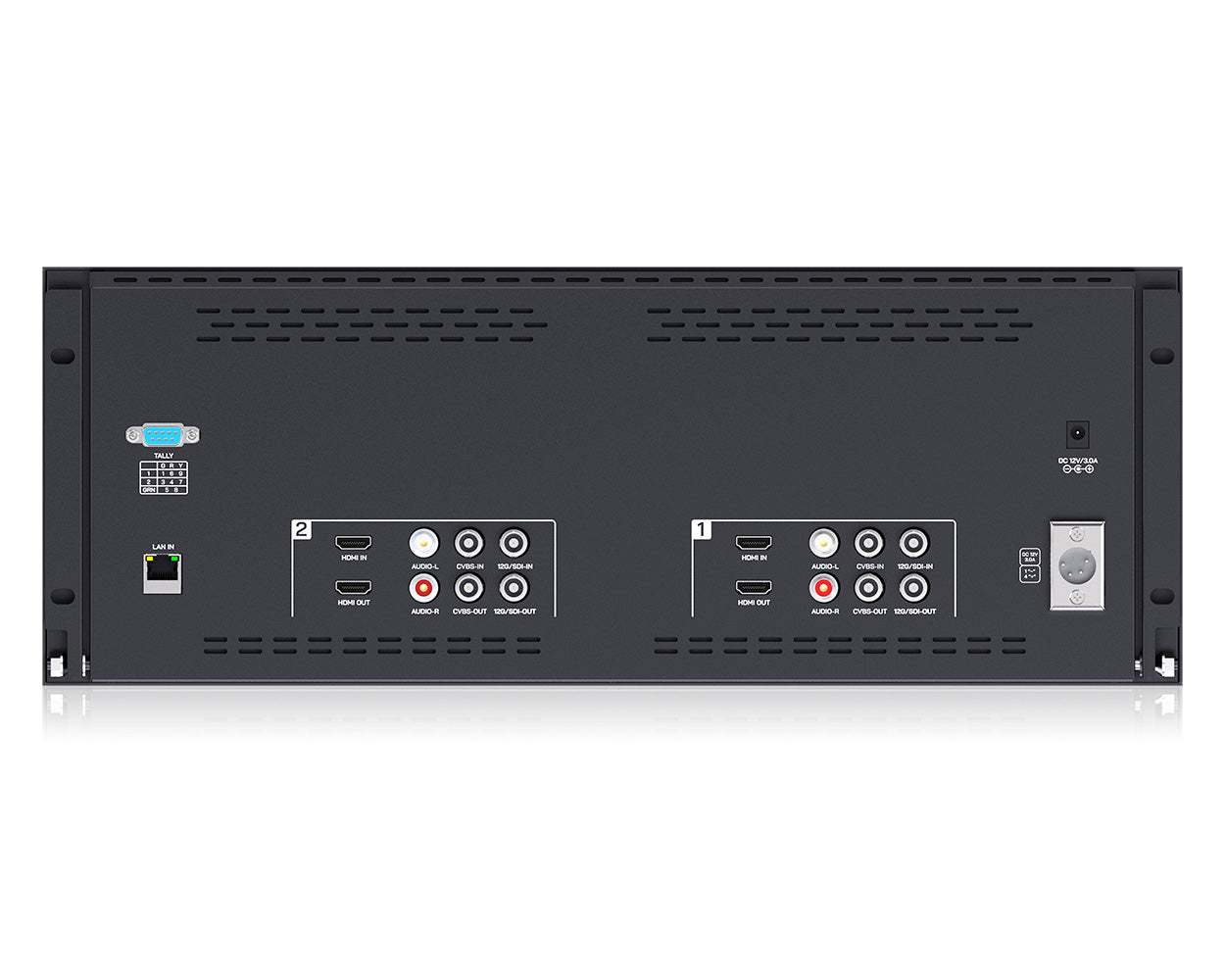

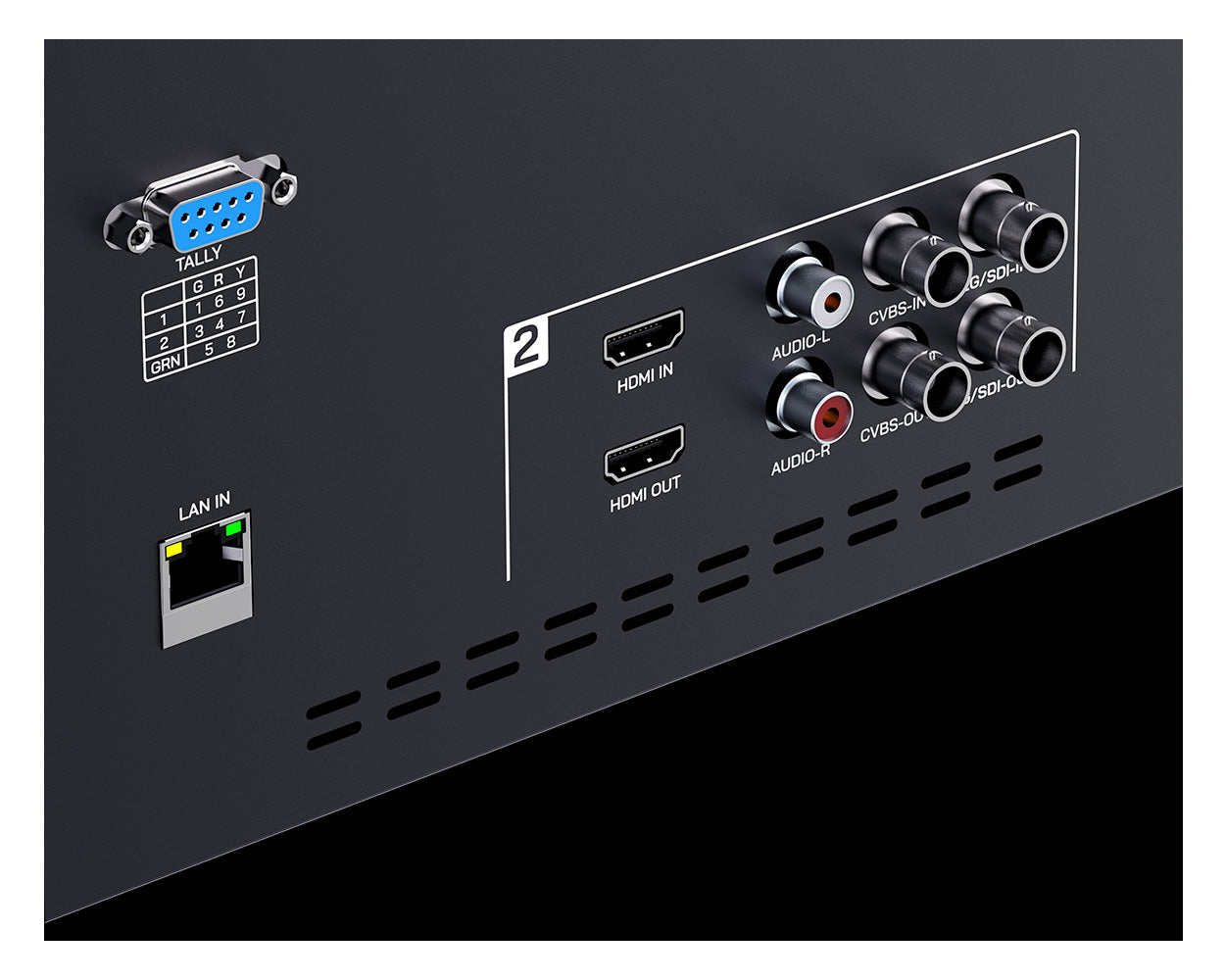

Tally signals are easily connectable via the DB9 Tally interface on the rear of the monitor, ensuring stable and reliable performance for every live production.
FRM1001G features front-facing green, red and yellow Tally indicators on each screen — intuitively showing Preview, On Air and Record status at a glance. Designed for seamless live broadcast workflows, it’s your perfect partner for professional on-site broadcasting.
Tally signals are easily connectable via the DB9 Tally interface on the rear of the monitor, ensuring stable and reliable performance for every live production.
Easy Remote Control
Connecting the LAN interface of FRM1001G can remotely adjustment for the monitor via the control software GPIO, which makes it very easy to set up a matching monitor.
Note: the software is suitable for Windows system at present.
Connecting the LAN interface of FRM1001G can remotely adjustment for the monitor via the control software GPIO, which makes it very easy to set up a matching monitor.
Note: the software is suitable for Windows system at present.
Flexible Power Supply
FRM1001G comes with DC 12V and 4 pin XLR connector (suitable for 12V/3A power adapter), strong power for the screens.
FRM1001G comes with DC 12V and 4 pin XLR connector (suitable for 12V/3A power adapter), strong power for the screens.
11 Languages Supporting
Built-in up to 11 languages, that means FRM1001G is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!
Built-in up to 11 languages, that means FRM1001G is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!
Specifications
Display Spec.
| Model | FRM1001G |
| Screen Size | 10.1"×2 IPS |
| Resolution | 1920×1200 pixels |
| Dot pitch | 0.1128(H)×0.1128 (W) mm |
| Color Depth | 8bit |
| Aspect Ratio | 16:10 |
| Brightness | 500cd/m² |
| Contrast Ratio | 1500:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
Signal Input (Each LCD)
| 1 X BNC | 12G-SDI |
| 1 X HDMI | HDMI 2.0 |
| 1 X BNC | Video |
| 2 X RCA | Audio(L/R) |
| 1 X Tally | DB9 |
Signal Output (Each LCD)
| 1 X BNC | 12G-SDI |
| 1 X HDMI | HDMI 2.0 |
| 1 X BNC | Video |
Audio (Each LCD)
| 1X Audio Out | Stereo Headphone |
Control Interface
| 1X LAN | RJ45 |
Other Interface
| 1X USB | USB-A (Firmware update/ LUT import) |
12G-SDI Support Format
| 720p(60/59.94/50/30/29/25/24/23.98) |
| 1080i(60/59.94/50) |
| 1080p(60/59.94/50/30/29.97/25/24/23.98) |
| 3840×2160p (60/50/30/29.97/25/24/23.98) |
| 4096×2160p (60/50/30/29.97/25/24/23.98) |
HDMI Support Format
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/23.98) |
| 3840×2160p (60/50/30/29.97/25/24/23.98) |
| 4096×2160p (60/50/30/29.97/25/24/23.98) |
CVBS (Video) Support Format
| PAL/NTSC auto recognize |
General
| Input Voltage | DC9～24V |
| Power Consumption | 29W |
| Power Input | DC 12V(suitable for 5.5x2.1mm power plug); 4-pin XLR |
| Working Temperature | -10°C~60°C |
| Storage Temperature | -30°C~70°C |
| Install Way | Rack Mount |
| Unit Size | 482x177x25 mm |
| Unit Weight | 2048g |
| Outer Carton Qty | 5pcs |
| Outer Carton Size | 560*410*320(mm) |
| Gross Weight | kg |
Accessories
Packaging List:
1× Monitor
1× 3A Power Adapter
1× Tally Kit
1×Quick Start Guide
1× Monitor
1× 3A Power Adapter
1× Tally Kit
1×Quick Start Guide
