D101 PLUS Dual 10.1"4RU Rackmount Monitor 4K HDMI SDI 1920x1200IPS
Regular price
$739.99
Shipping calculated at checkout
Only 5 in stock
Shipping
US/ CA: 3-7 days delivery local warehouse/ Amazon
EU/ AU: 3-10 days delivery Amazon
JP: 2-3 days delivery Amazon
Worldwide 200+ Country：7-10 days delivery
VAT for EU customers:The VAT will be charged when Europe customers place the order on our official store or Amazon Store.
Warranty
1 year warranty time and 14 days return.
Return to US,CA, EU, JP, AU local warehouse, other countries return to HK warehouse.
US subsidiaries provide fast and convenient local after-sales service.
More detail: Shipping Policy | Warranty Policy
Perfect Video Monitoring Solution
FEELWORLD D101 PLUS is ideal for high end broadcast monitoring,it features 3G SDI,4K HDMI and more video interfaces and has 2 independent 10.1-inch displays can be monitor two different cameras simultaneously.All D101 PLUS include Ethernet so you can connect them to your network and centrally control all your monitors from a single computer.It easy to install in video wall or broadcast truck thanks to its 4RU form factor. You can use them for broadcast, post production, on set monitoring, flyaway kits, broadcast trucks and more.
FEELWORLD D101 PLUS is ideal for high end broadcast monitoring,it features 3G SDI,4K HDMI and more video interfaces and has 2 independent 10.1-inch displays can be monitor two different cameras simultaneously.All D101 PLUS include Ethernet so you can connect them to your network and centrally control all your monitors from a single computer.It easy to install in video wall or broadcast truck thanks to its 4RU form factor. You can use them for broadcast, post production, on set monitoring, flyaway kits, broadcast trucks and more.

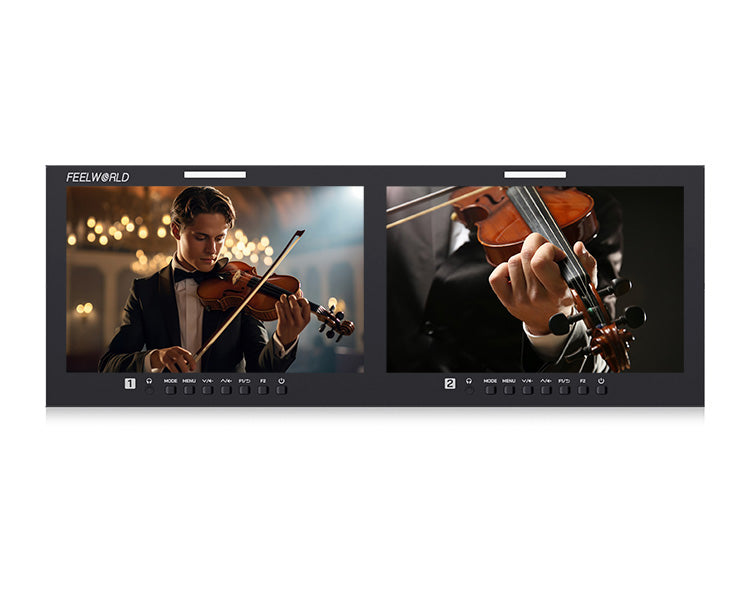

Dual 10.1-inch Full HD Screen
Clearly checking and capture every nuance
D101 PLUS is equipped with dual independently 10.1-inch high resolution IPS panel，160° wide field of view and clearly present more detailed image. 8bit color depth with 16.7M colors display.
Clearly checking and capture every nuance
D101 PLUS is equipped with dual independently 10.1-inch high resolution IPS panel，160° wide field of view and clearly present more detailed image. 8bit color depth with 16.7M colors display.

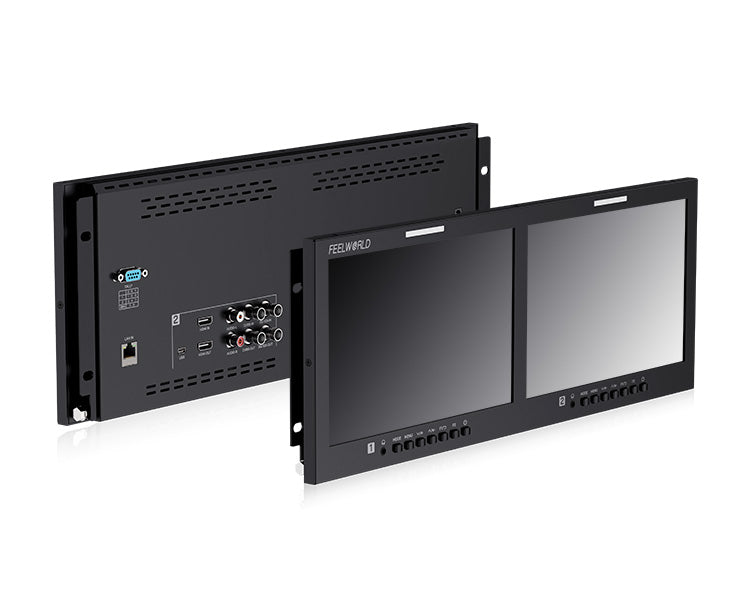

4RU Rack Mount Design
Suitable for 19 inch width cabinet installation with 4RU mounting height and slim metal design,occupying only a small part of volume， ideal for installation in equipment racks and monitor walls.
Suitable for 19 inch width cabinet installation with 4RU mounting height and slim metal design,occupying only a small part of volume， ideal for installation in equipment racks and monitor walls.

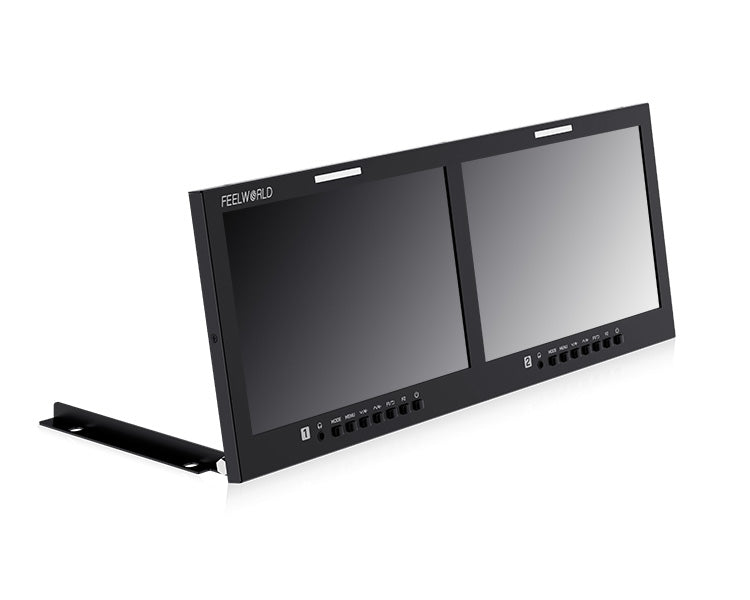

Use for Desktop
The innovation design of D101 PLUS that make it can be use for desktop application, just put down the two metal stripes the rear of monitor.
The innovation design of D101 PLUS that make it can be use for desktop application, just put down the two metal stripes the rear of monitor.
Full Range of Auxiliary Functions
SDI Time Code
The monitor supports time code display under SDI signal,including LTC and VITC types，synchronization with the camera. Through the time code, you can quickly and accurately find a specific frame in the video It is particularly convenient to identify specific frame rates in filming and television post production and video production
The monitor supports time code display under SDI signal,including LTC and VITC types，synchronization with the camera. Through the time code, you can quickly and accurately find a specific frame in the video It is particularly convenient to identify specific frame rates in filming and television post production and video production
Load Custom 3D LUTs，Preview Filming Look in Field Shooting
Supports to load 32 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. The user stores the LUT document in the root directory of the USB flash drive, and imports via connecting the mini USB to USB cable and the USB interface of the device (up to 32 custom files can be imported), maintaining creative intent, always.
Supports to load 32 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. The user stores the LUT document in the root directory of the USB flash drive, and imports via connecting the mini USB to USB cable and the USB interface of the device (up to 32 custom files can be imported), maintaining creative intent, always.
Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. D101 PLUS becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. D101 PLUS becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
Easy Remote Control
All displays can be perfectly adjusted by a connected computer under the control of software.so you can focus on other operation on the workbench at the same time.
Note: the software is suitable for Windows system at present.
All displays can be perfectly adjusted by a connected computer under the control of software.so you can focus on other operation on the workbench at the same time.
Note: the software is suitable for Windows system at present.

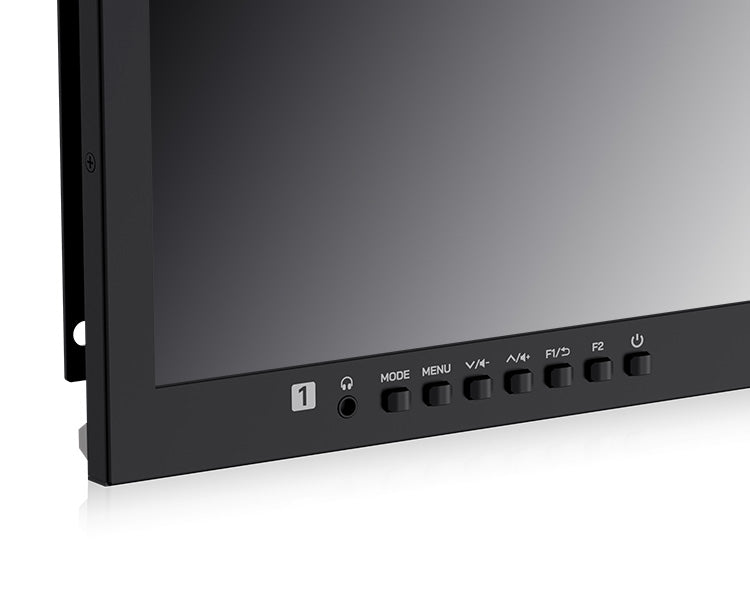

Intuitive Button Operation
Each panel is equipped with intuitive buttons to control the screen independently, the 2 custom function keys can be set the common function as shortcut key. All buttons clear at a glance, easy to setup.
Each panel is equipped with intuitive buttons to control the screen independently, the 2 custom function keys can be set the common function as shortcut key. All buttons clear at a glance, easy to setup.

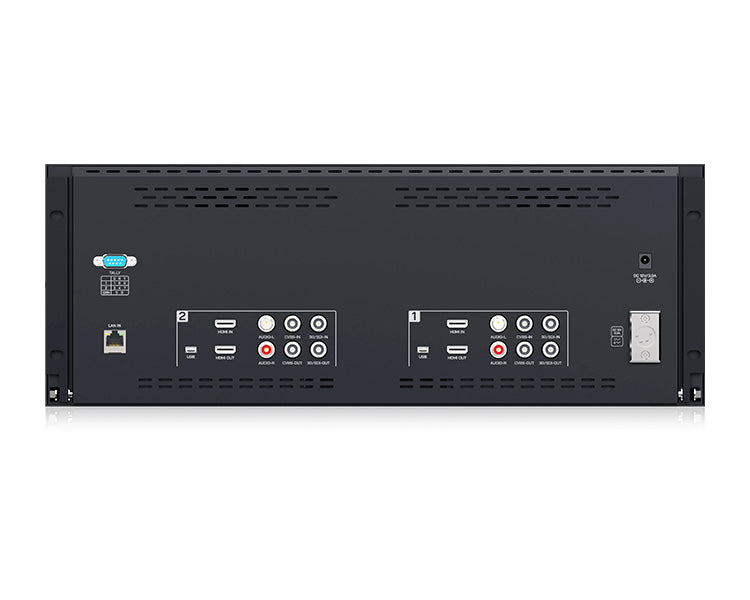

Rich Video Interfaces
D101 PLUS is design for broadcast work and post-production, each panel with 3G-SDI, 4K HDMI and CVBS signal inputs and outputs. Plus, it also have L/R audio.
D101 PLUS is design for broadcast work and post-production, each panel with 3G-SDI, 4K HDMI and CVBS signal inputs and outputs. Plus, it also have L/R audio.

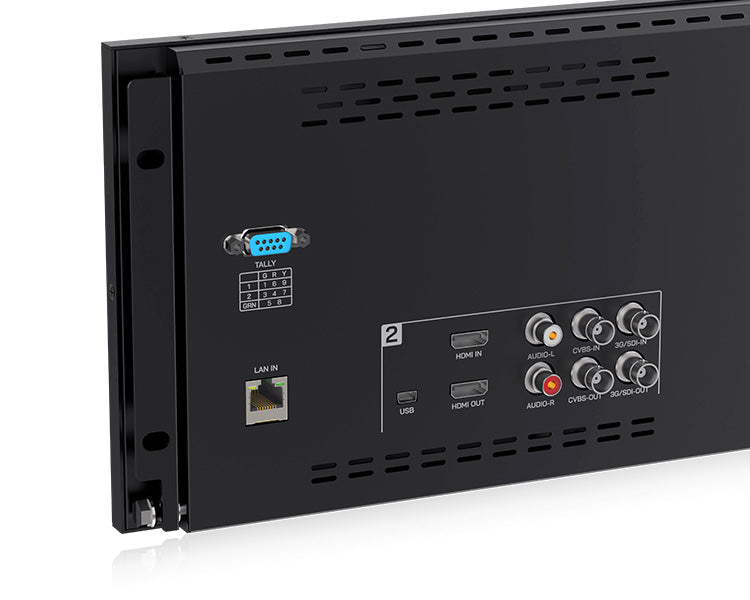

3-color TALLY Light, Enhance Team Cooperation
D101 PLUS with Tally function, perfect for live broadcasts.The front of each screen including tally light,displayed in red, green or yellow to signify on air, preview or recording This means during live production you will always know when you are recording or on-air. Tally is connected via an industry standard parallel pin connector on the rear panel.
D101 PLUS with Tally function, perfect for live broadcasts.The front of each screen including tally light,displayed in red, green or yellow to signify on air, preview or recording This means during live production you will always know when you are recording or on-air. Tally is connected via an industry standard parallel pin connector on the rear panel.
Flexible Power Supply
The monitor comes with DC 12V socket（suitable for 5.5*2.1mm power plug) and 4 pin XLR connector， provide the strong power for the screens.
The monitor comes with DC 12V socket（suitable for 5.5*2.1mm power plug) and 4 pin XLR connector， provide the strong power for the screens.
11 Languages Supporting
Built-in up to 11 languages, that means D101 PLUS is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!
Built-in up to 11 languages, that means D101 PLUS is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!
Specifications
Display Spec.
| Model | D101 PLUS |
| Screen Size | 10.1"×2 IPS |
| Resolution | 1920×1200 pixels |
| Dot pitch | 0.1128(H)×0.1128 (W) mm |
| Aspect Ratio | 16:10 |
| Brightness | 500cd/m² |
| Contrast Ratio | 1500:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
Input (Each LCD)
| 1 X BNC | 3G-SDI |
| 1 X HDMI | HDMI |
| 1 X BNC | Video |
| 2 X RCA | Audio(L/R) |
Output (Each LCD)
| 1 X BNC | 3G-SDI |
| 1 X HDMI | HDMI |
| 1 X BNC | Video |
Audio (Each LCD)
| Audio Out | Stereo Headphone × 1 |
SDI Support Format
| 720p(60/59.94/50/30/29/25/24/23.98) |
| 1080i(60/59.94/50) |
| 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
HDMI Support Format
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
| 4K 3840×2160p (60/50/30/29.97/25/24/23.98) |
| 4K 4096×2160p (60/50/30/29.97/25/24/23.98) |
CVBS (Video) Support Format
| PAL/NTSC auto recognize |
General
| Input Voltage | DC9～24V |
| Power Consumption | ≤24W |
| Power Connector | DC/ 4-pin XLR |
| Working Temperature | -10°C~60°C |
| Storage Temperature | -30°C~70°C |
| Install Way | Rack Mount |
| Unit Size | 482x177x25 mm |
| Unit Weight | 2048g |
| Outer Carton Qty | 5pcs |
| Outer Carton Size | 560*410*320(mm) |
| Gross Weight | kg |
Advanced Features
| * Waveform (RGB、YUV、Y) |
| * Vectorscope |
| * Histogram (RGB1、RGB2、Y) |
| * Custom LUTs (up to 32) |
| * Focus Assist(Red, Green, Blue) |
| * Check Field (Red,Green,Blue,Mono) |
| * Embedded Audio |
| * Over Exposure |
| * Pixel to Pixel |
| * Center Marker (Red, Green, Blue, Black, White, Gray) |
| * Ratio Marker (4:3、13:9、14:9、15:9、16:9、1.85:1、2.35:1) |
| * Image Flip (H, V, H/V) |
| * Image Freeze |
| * Zoom Mode (2X、4X、9X、16X、User) |
| * False Color |
| * Scan Mode(Under Scan, Over Scan) |
| * Anamorphic (1.33X, 1.6X, 2.0X, 2.0X MAG, User) |
| * Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen) |
| * Custom Color Temperature |
| * Built-in LED tally indicators (Red, Green, Yellow) |
Accessories
Packaging List:
1× Monitor
1× 3A Power Adapter
1× Mini USB to USB Cable
1× Tally Kit
1× Operation Manual
1× Monitor
1× 3A Power Adapter
1× Mini USB to USB Cable
1× Tally Kit
1× Operation Manual
