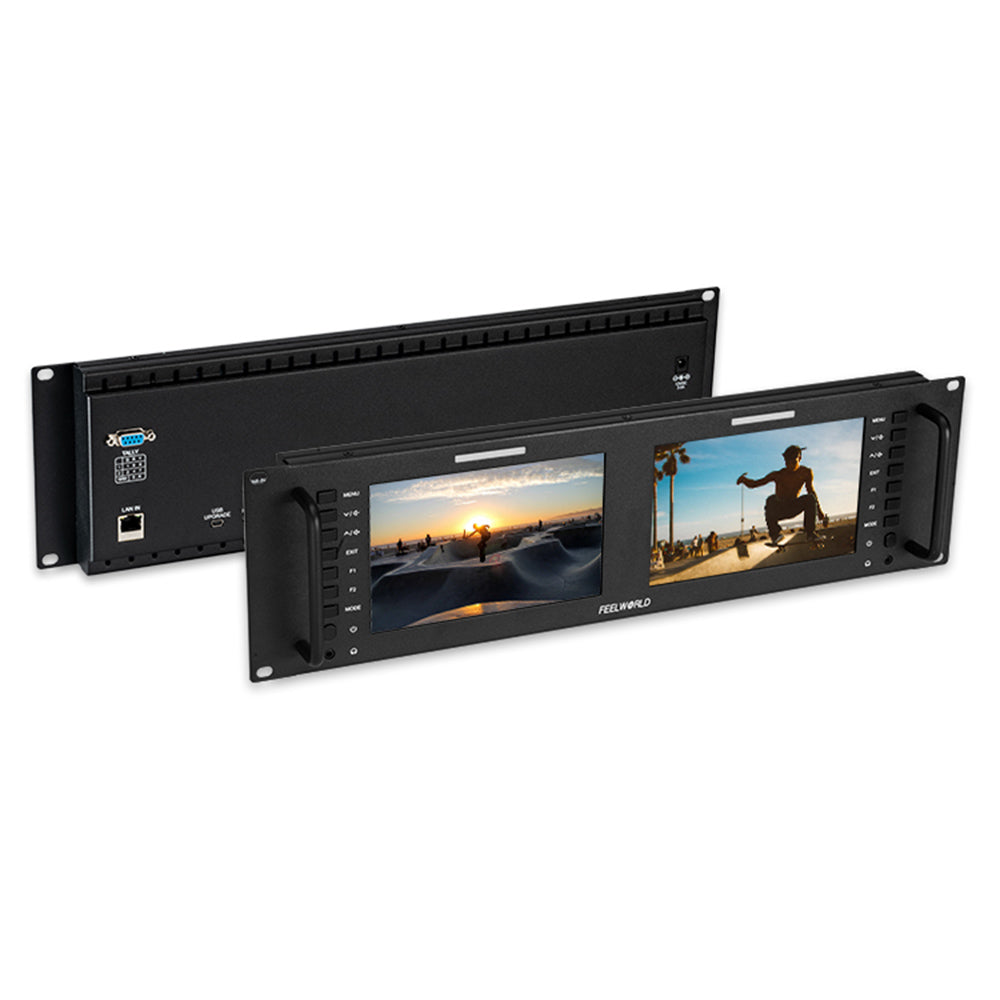

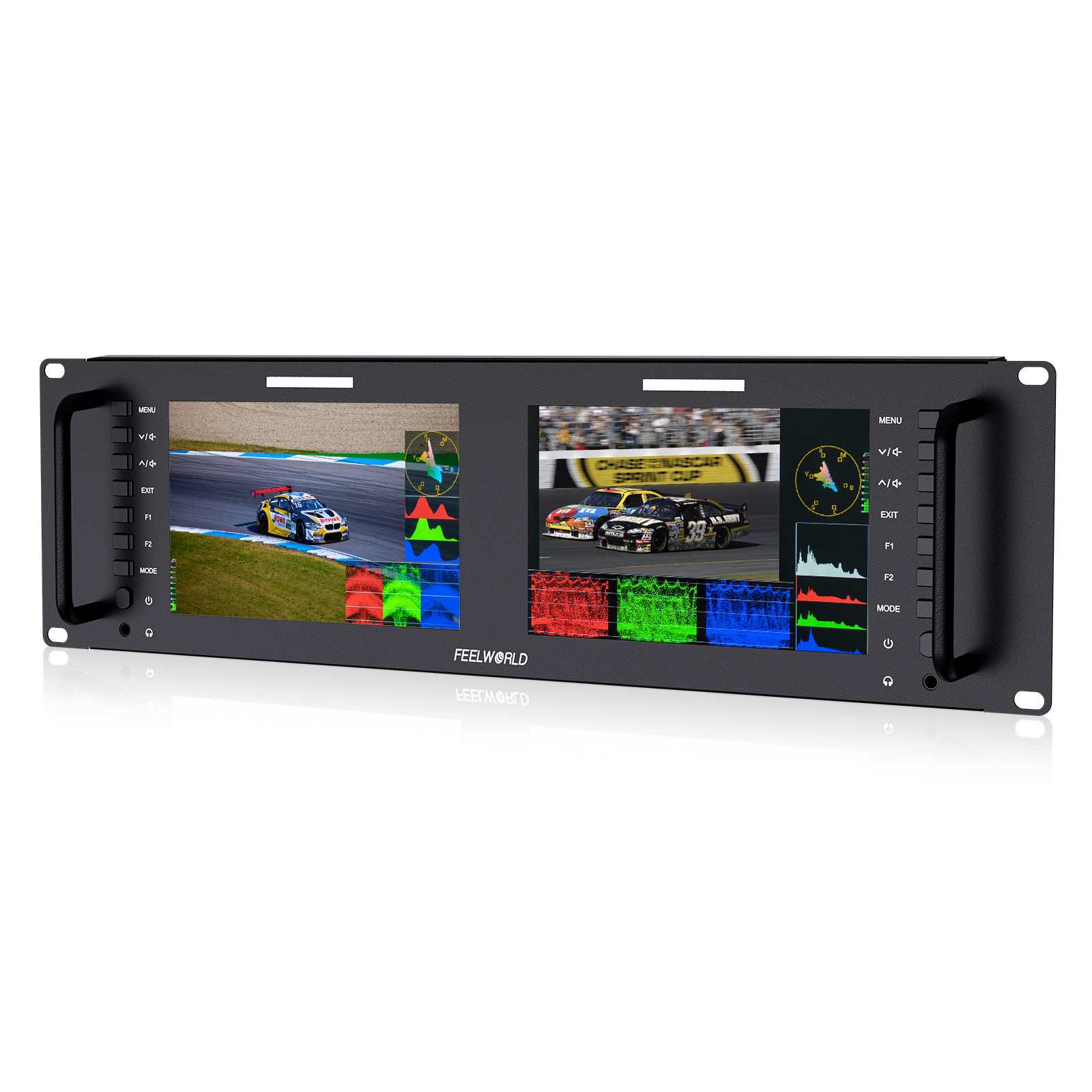

FEELWORLD D71 PLUS 7" 3RU HDMI SDI Rack Mount Monitor With Waveform and LUT

Product image 1FEELWORLD D71 PLUS 7" 3RU HDMI SDI Rack Mount Monitor With Waveform and LUT
Product image 2FEELWORLD D71 PLUS 7" 3RU HDMI SDI Rack Mount Monitor With Waveform and LUT
Product image 3FEELWORLD D71 PLUS 7" 3RU HDMI SDI Rack Mount Monitor With Waveform and LUT
Product image 4FEELWORLD D71 PLUS 7" 3RU HDMI SDI Rack Mount Monitor With Waveform and LUT
Product image 5FEELWORLD D71 PLUS 7" 3RU HDMI SDI Rack Mount Monitor With Waveform and LUT
Product image 6FEELWORLD D71 PLUS 7" 3RU HDMI SDI Rack Mount Monitor With Waveform and LUT

Regular price $669.99

. Stock in US, EU, JP, AU, CA, RU local warehouse

US/ CA/ RU: 3-7 days delivery
EU/ AU: 3-10 days delivery
JP: 2-3 days delivery
. Shiping Worldwide 200+ Country
7-10 days delivery.

. Warranty: One year warranty time and 14 days return and refund for US, EU, JP, AU, RU.

VAT for EU customers: The VAT is asked by EU government, and it will be charged when you place the order even if you buy our products on our Amazon Store. There is no difference wherever you buy it, and the VAT is included in the price on those online shopping plates.

More detailShipping Policy | Warranty Policy

rack mount monitor

rack mount broadcast monitor

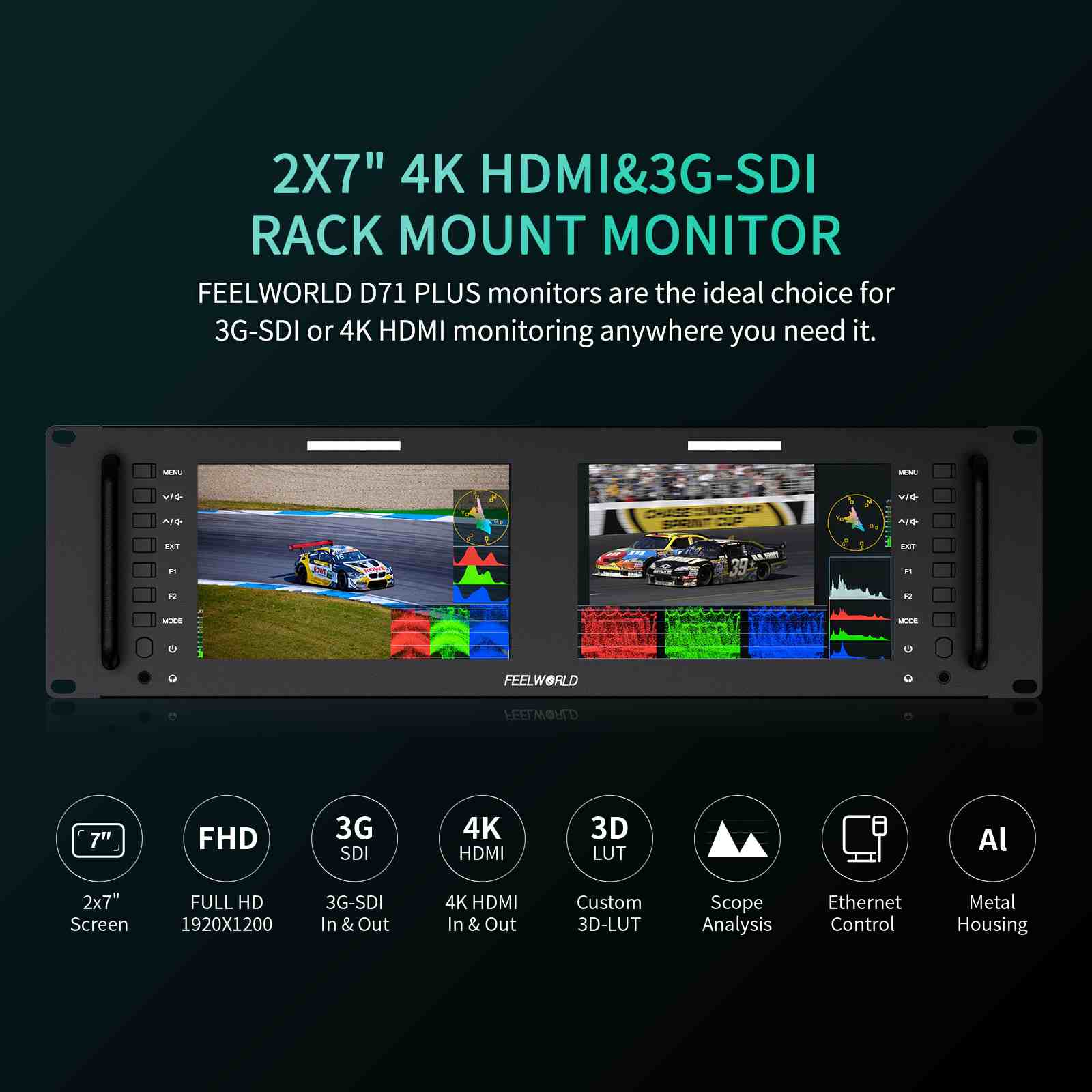

Ideal Choice for SDI/4K HDMI Monitoring
FEELWORLD D71 PLUS monitors are the ideal choice for 3G-SDI or 4K HDMI monitoring anywhere you need it. It has 2 independent 7 inch displays can be monitor two different cameras simultaneously, it easy to install in video wall or broadcast truck thanks to its 3RU form factor. You can use them for broadcast, post production, on set monitoring, flyaway kits, broadcast trucks and more.

rackmount monitor

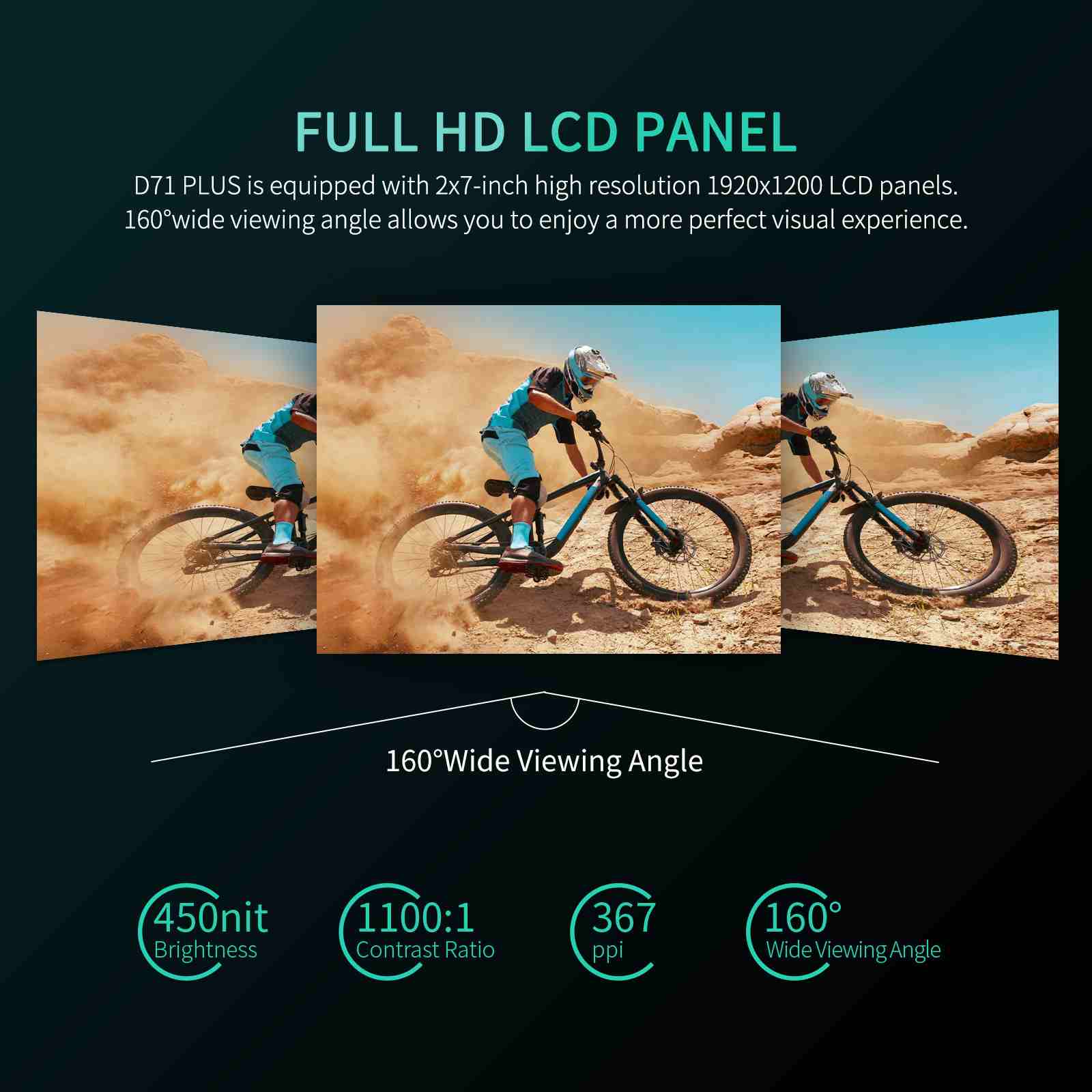

Full HD LCD Panel
D71 PLUS is equipped with 2x7-inch high resolution 1920x1200 LCD panels.True color reproduction and provide excellent details.160°wide viewing angle allows you to enjoy a more perfect visual experience.

rack monitor

sdi rack monitor

Ultra Thin Design
Ultra thin and metal housing, strong and durable. The 3RU installation size can be easy to install in TV wall or broadcast truck, etc.

dual monitor rack mount

Intuitive Button Operation
D71 PLUS has 2 exquisite front panels equipped with intuitive buttons for independent control of the screen, as well as F shortcut key, the frequently used functions are clear at a glance, making the operation quickly and easily.

rackmount sdi monitor

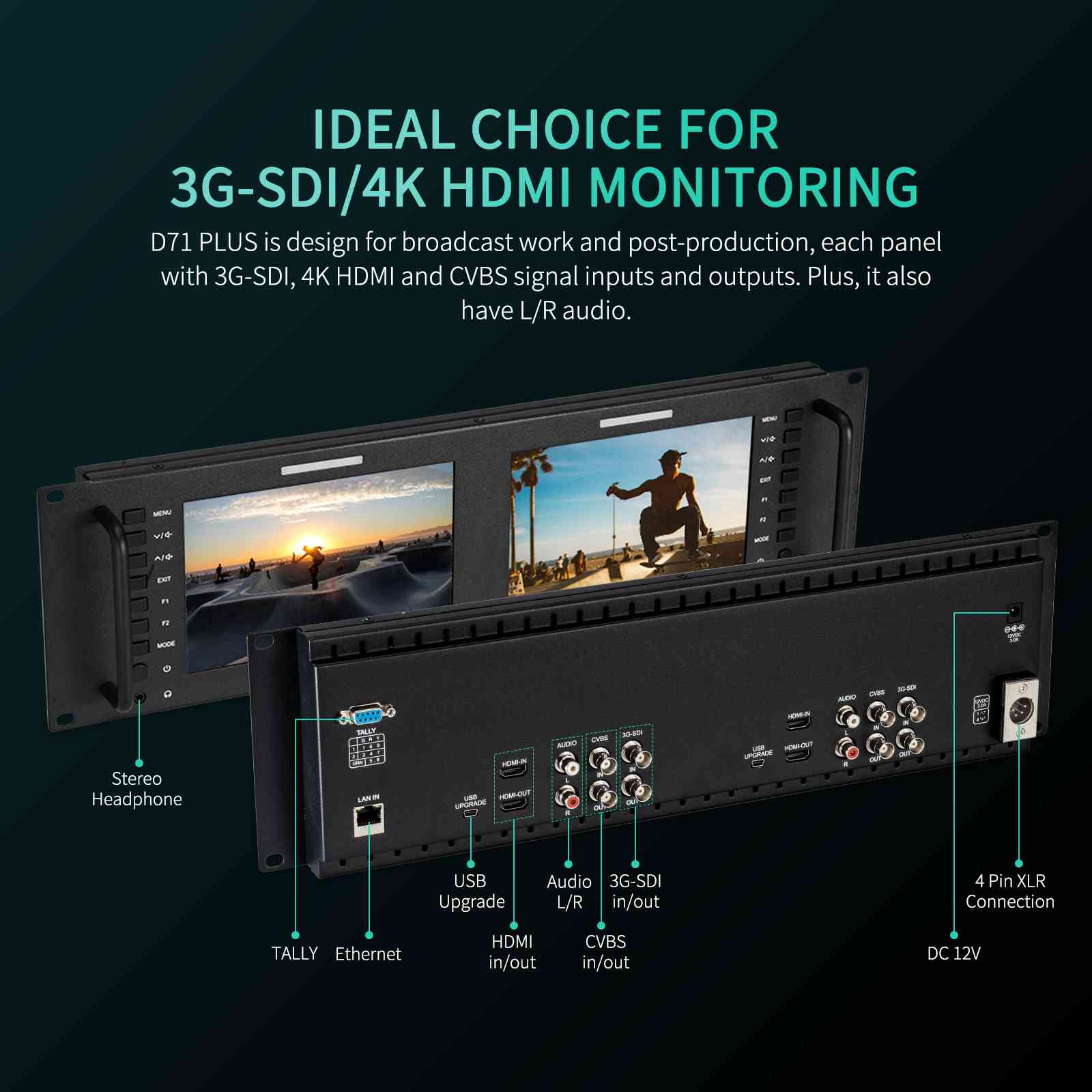

Multiple Video Interfaces
D71 PLUS is design for broadcast work and post-production, each panel with 3G-SDI, 4K HDMI and CVBS signal inputs and outputs. Plus, it also have L/R audio.

dual rack monitor

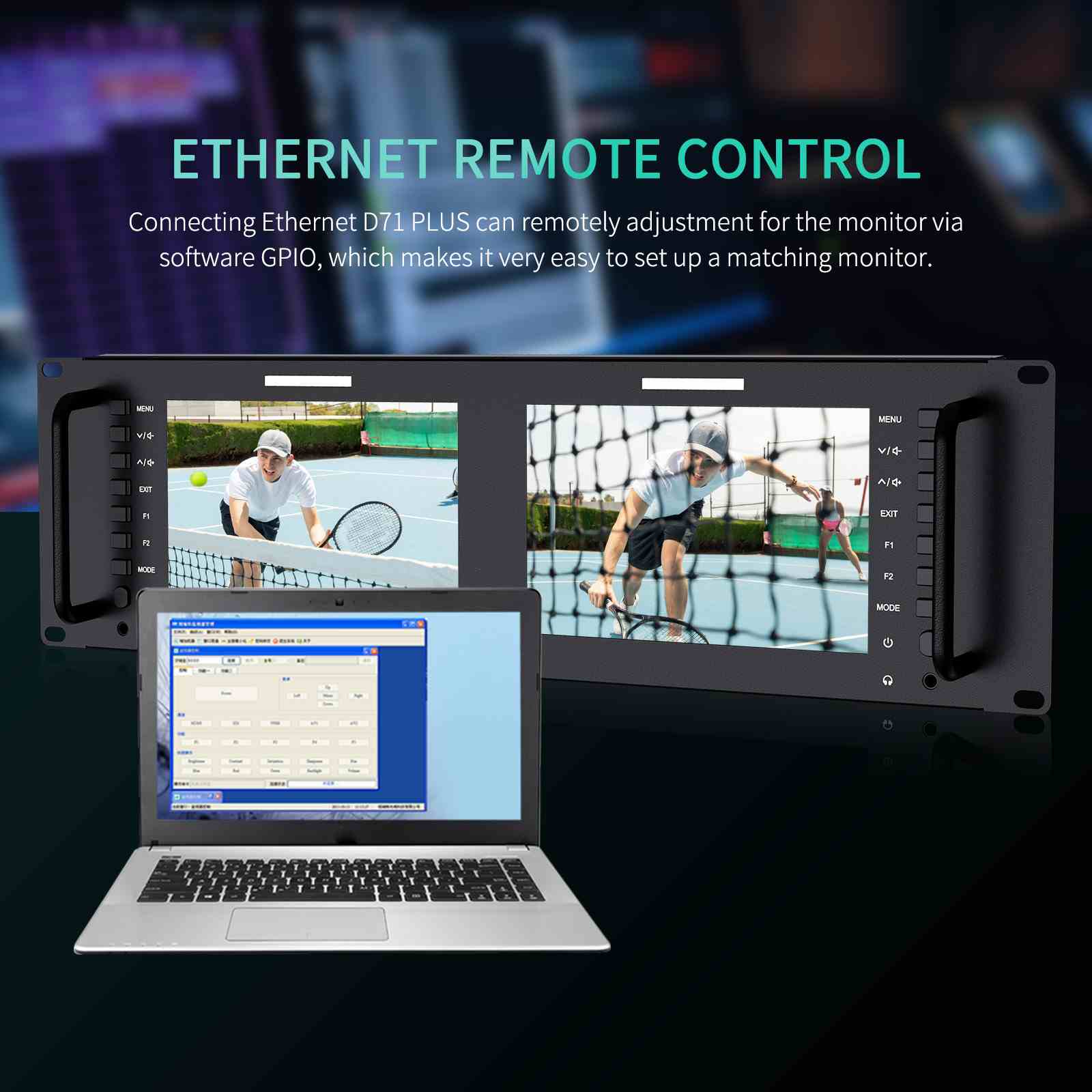

Ethernet Remote Control
Connecting Ethernet D71 PLUS can remotely adjustment for the monitor via software GPIO, which makes it very easy to set up a matching monitor.

Note: the software is suitable for Windows system at present.

rack mount monitor

rack mount monitor

rack mount monitor

rack mount monitor

Flexible Power Supply
D71 PLUS comes with DC 12V and 4 pin XLR connector (suitable for 12V/3A power adapter), strong power for the screens.

SDI broadcast monitor

broadcast monitor

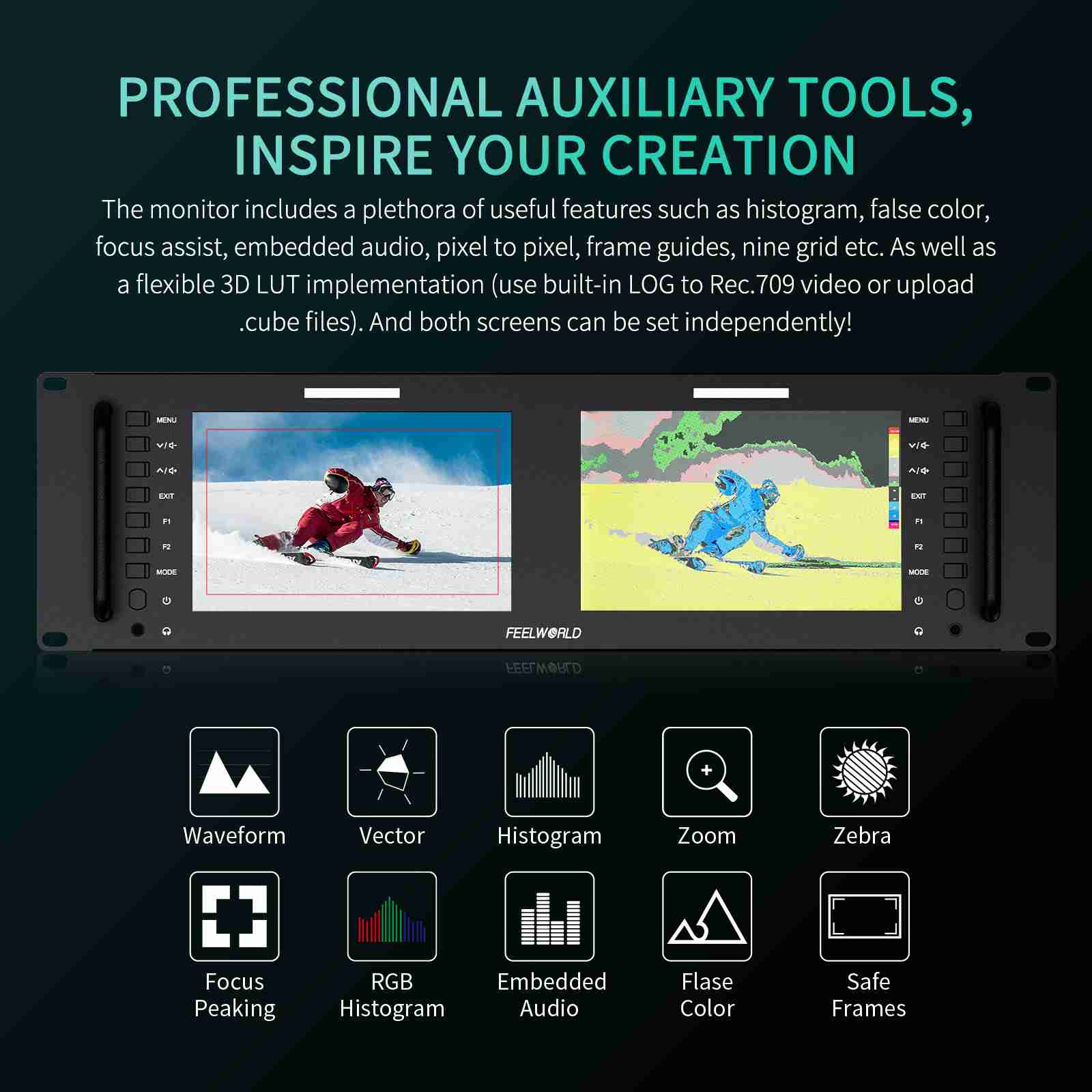

Professional Auxiliary Tools, Inspire Your Creation
The monitor includes a plethora of useful features such as histogram, false color, focus assist, embedded audio, pixel to pixel, frame guides, nine grid etc. As well as a flexible 3D LUT implementation (use built-in LOG to Rec.709 video or upload .cube files). And both screens can be set independently!

rack monitor

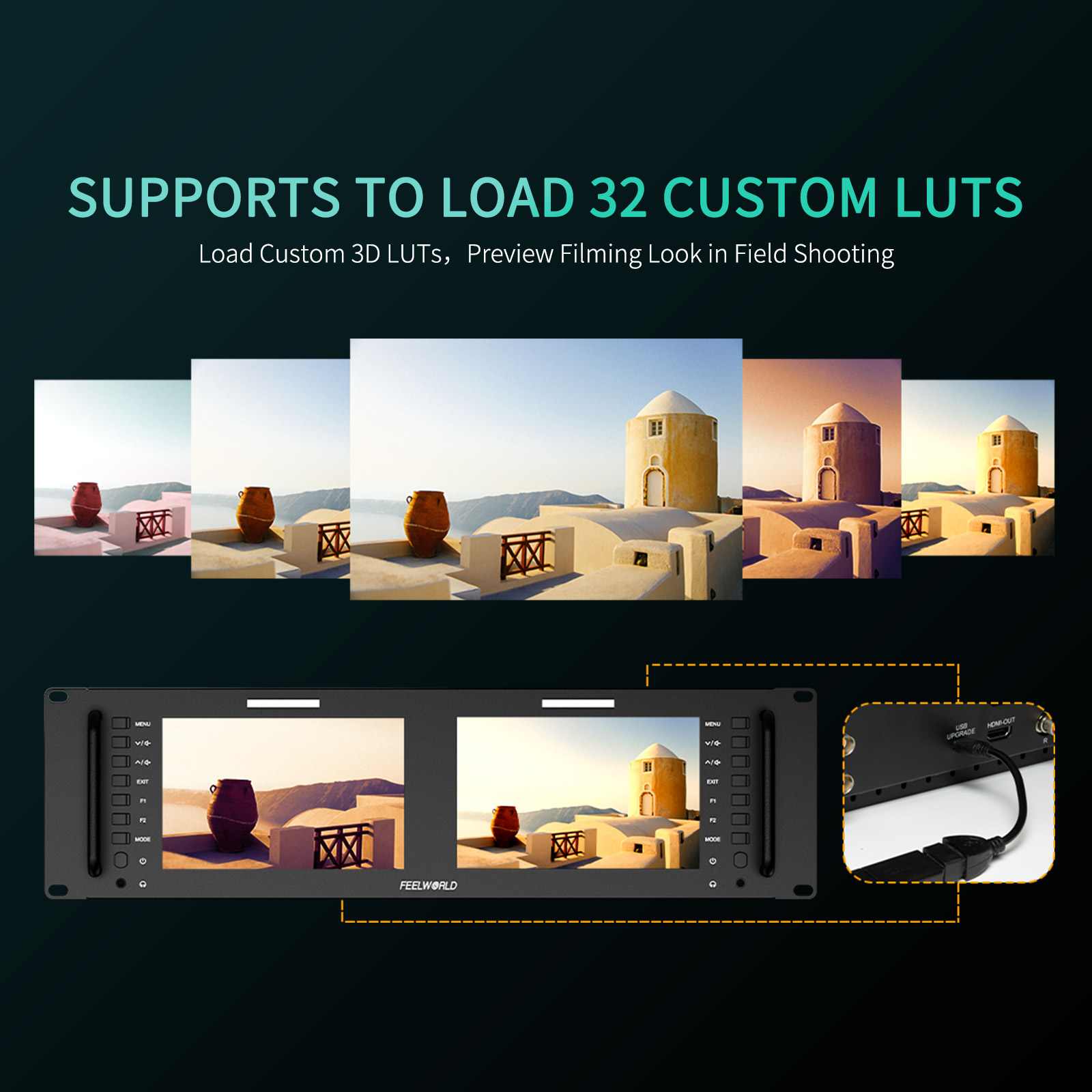

Load Custom 3D LUTs,Preview Filming Look in Field Shooting
Supports to load 32 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. The user stores the LUT document in the root directory of the U flash drive, and imports via connecting the USB adapter cable and the USB interface of the device (up to 32 custom files can be imported), maintaining creative intent, always.

rack mount broadcast monitor

Accurate waveform monitoring
Save your budget
When you need to analyze image quality more accurately than simply looking at the picture then use D71 PLUS's built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vector, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. D71 PLUS becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

rackmount monitor

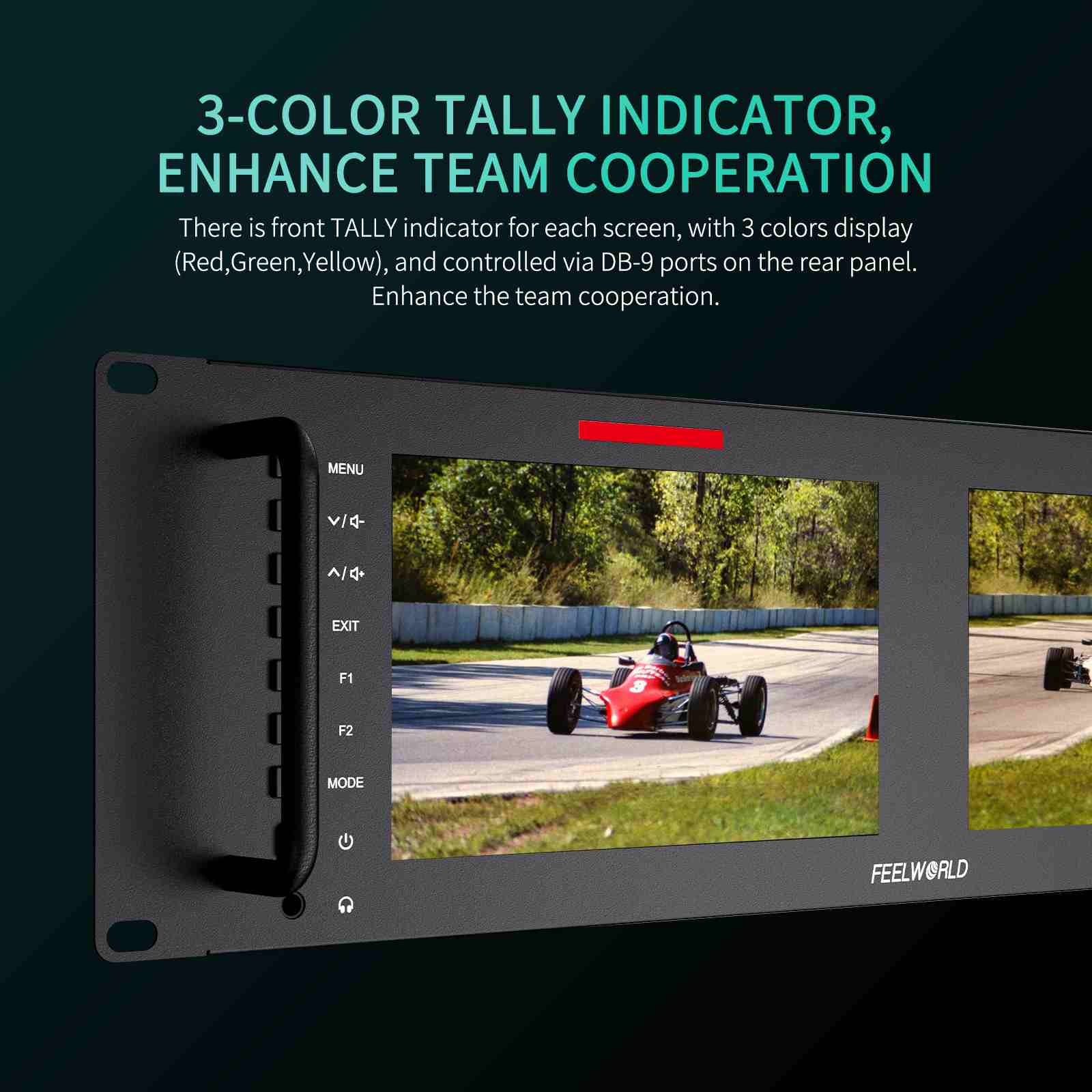

3-Color Tally Indicator, Enhance Team Cooperation
There is front TALLY indicator for each screen, with 3 colors display (Red,Green,Yellow), and controlled via DB-9 ports on the rear panel. Enhance the team cooperation.

sdi rack monitor

Perfect Monitoring for Broadcast Organization
Use multiple D71 PLUS units to monitor lots of camera inputs simultaneously. The built-in Tally function can display red, green or yellow indicator, allows you always know when you are recording or on-air.

rack mount monitor

Broadcast Truck
Mobile Broadcast Monitoring Solution
In mobile broadcast truck, you need every inch of space and you need minimal heat so you need a monitoring solution that is lightweight and compact, the D71 PLUS is the ideal solution. Imagine having all your video sources displayed on 7 inch LCD screens so you can see camera detail and quality.

rackmount monitor

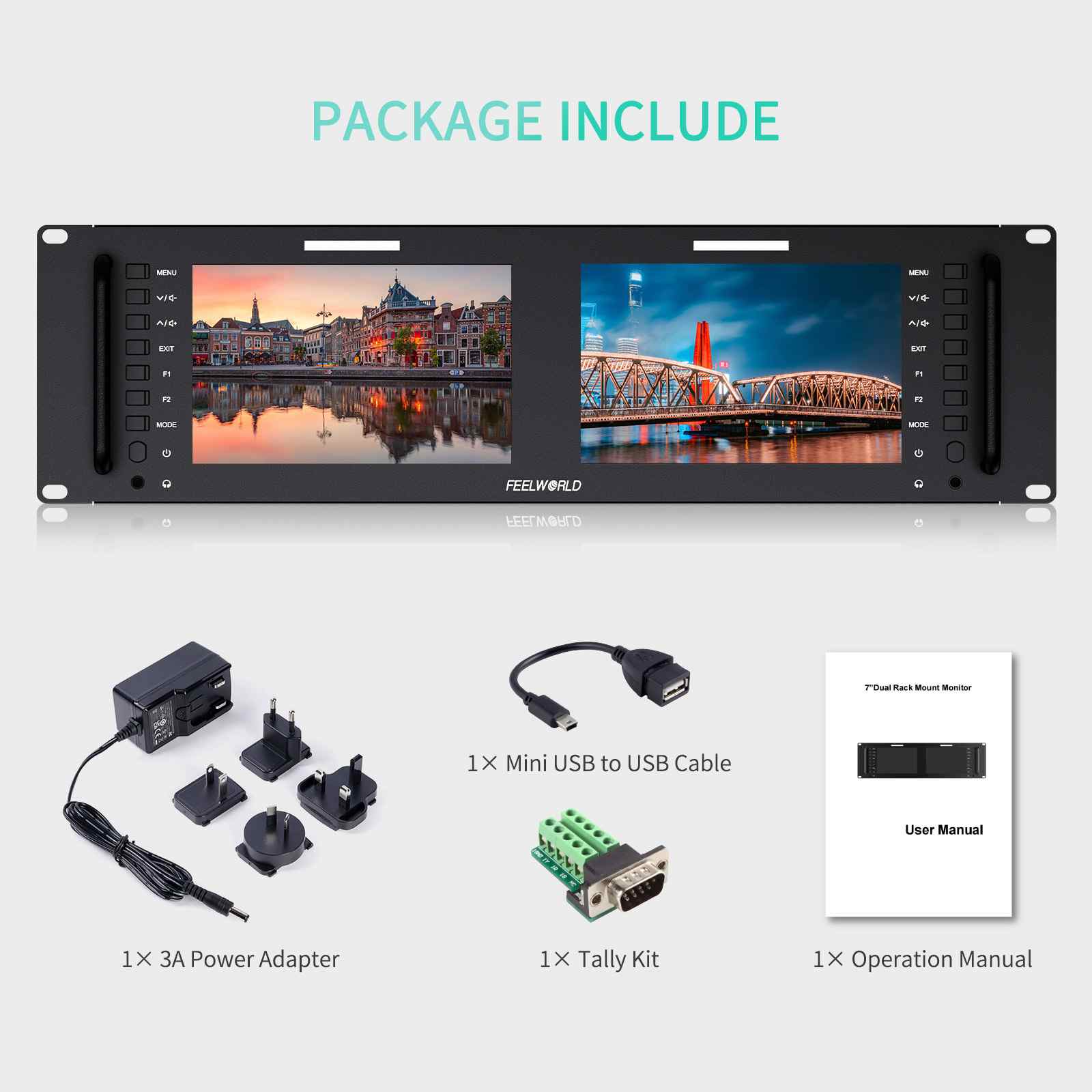

Standard Accessories:
1× 3A Power Adapter
1× Tally Kit
1× Operation Manual

Display Spec.
 Model  D71 PLUS
 Screen Size  7"×2 IPS
 Resolution  1920×1200 pixels
 Dot pitch  0.07875(H)×0.07875 (W) mm
 Aspect Ratio  16:10
 Brightness  450cd/m²
 Contrast Ratio  1100:1
 Backlight  LED
 Viewing Angle  80°/80°(L/R) 80°/80°(U/D)
Input (Each LCD)
 1 X BNC  3G-SDI
 1 X BNC  Video
 2 X RCA  Audio(L/R)
Output (Each LCD)
 1 X BNC   3G-SDI
 1 X BNC  Video
Audio (Each LCD)
 Audio Out  Stereo Headphone × 1
SDI Support Format
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
HDMI Support Format
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 3840×2160p (30/29.97/25/24/23.98 Hz)
DCI 4K 4096×2160p (24Hz)
CVBS (Video) Support Format
PAL/NTSC auto recognize
 Input Voltage  DC9~24V
 Power Consumption  ≤21W
 Power Connector  DC/ 4-pin XLR
 Working Temperature  -10°C~60°C
 Storage Temperature  -30°C~70°C
 Install Way  Rack Mount
 Unit Size  482.6Lx132Hx30.5D mm
 Unit Weight  1890g
