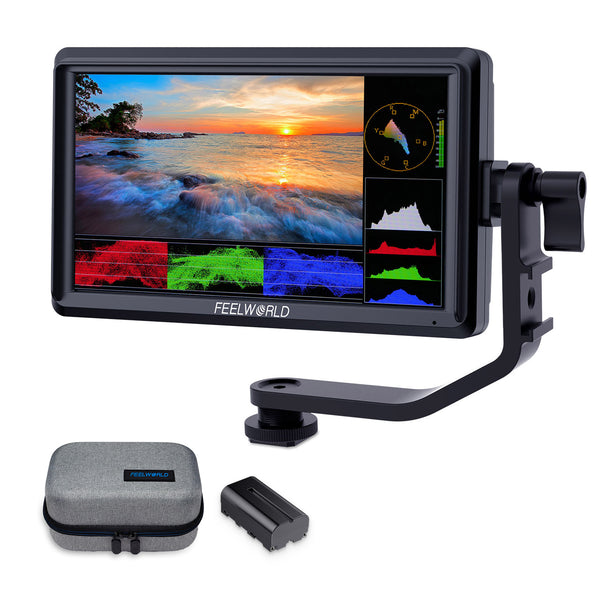

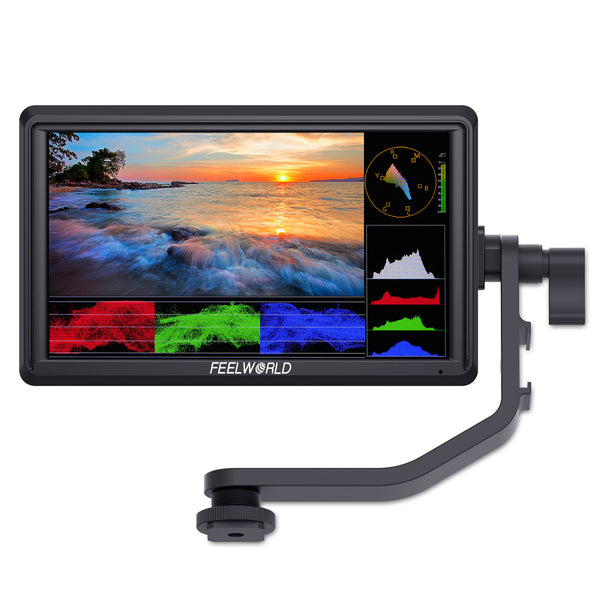

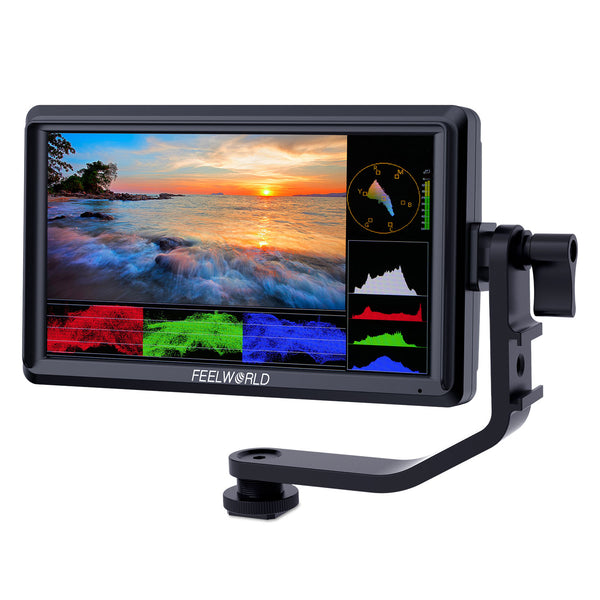

FEELWORLD FW568 V2 5.5 inch DSLR Camera Field Monitor with Waveform LUTs Video Peaking Focus Assist

Product image 1FEELWORLD FW568 V2 5.5 inch DSLR Camera Field Monitor with Waveform LUTs Video Peaking Focus Assist
Product image 2FEELWORLD FW568 V2 5.5 inch DSLR Camera Field Monitor with Waveform LUTs Video Peaking Focus Assist
Product image 3FEELWORLD FW568 V2 5.5 inch DSLR Camera Field Monitor with Waveform LUTs Video Peaking Focus Assist
Product image 4Camera Field Video Monitor
Product image 5Camera Field Video Monitor
Product image 6Camera Field Video Monitor
Product image 7FEELWORLD FW568 V2 5.5 inch DSLR Camera Field Monitor with Waveform LUTs Video Peaking Focus Assist
Product image 8FEELWORLD FW568 V2 5.5 inch DSLR Camera Field Monitor with Waveform LUTs Video Peaking Focus Assist
Product image 9Camera Field Video Monitor

Regular price $125.99



 . Stock in US, EU, JP, AU, CA, RU local warehouse

US/ CA/ RU: 3-7 days delivery
EU/ AU: 3-10 days delivery
JP: 2-3 days delivery
. Shiping Worldwide 200+ Country
7-10 days delivery.

 . Stock in US, EU, JP, AU, RU local warehouse and delivered by Amazon logistics

US/ RU: 3-7 days delivery
EU/ AU: 3-10 days delivery
JP: 2-3 days delivery

. Shiping Worldwide 200+ Country:7-10days delivery

. Warranty: One year warranty time and 14 days return and refund for US, EU, JP, AU, RU.

VAT for EU customers: The VAT is asked by EU government, and it will be charged when you place the order even if you buy our products on our Amazon Store. There is no difference wherever you buy it, and the VAT is included in the price on those online shopping plates.

More detailShipping Policy | Warranty Policy

 camera monitor

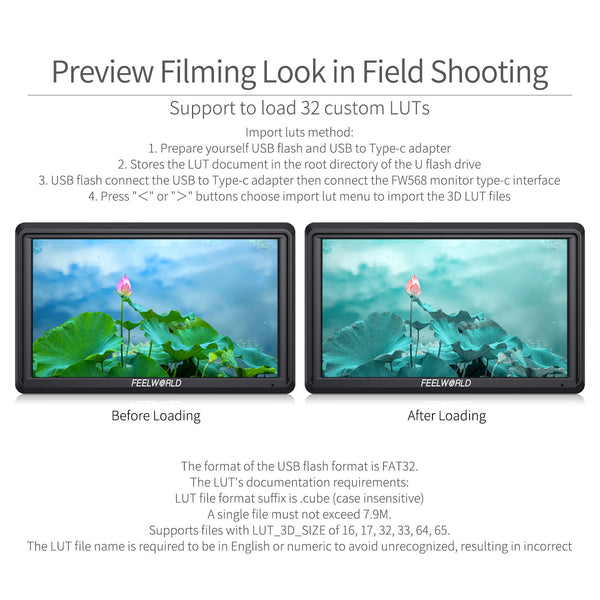

FEELWORLD FW568 Update to FW568 V2 Version with Waveform and 3D LUT

Dear friends, thank you very much love and support the FEELEWORLD monitor, in order to improve user experience, we update the FW568 monitor to FW568 V2 with waveform and 3D LUT function, support load 32 custom LUTs. Preview film look in field
The FW568 screen resolution is1920x1080 update to FW568 V2 resolutions 1920x1152.
field monitor

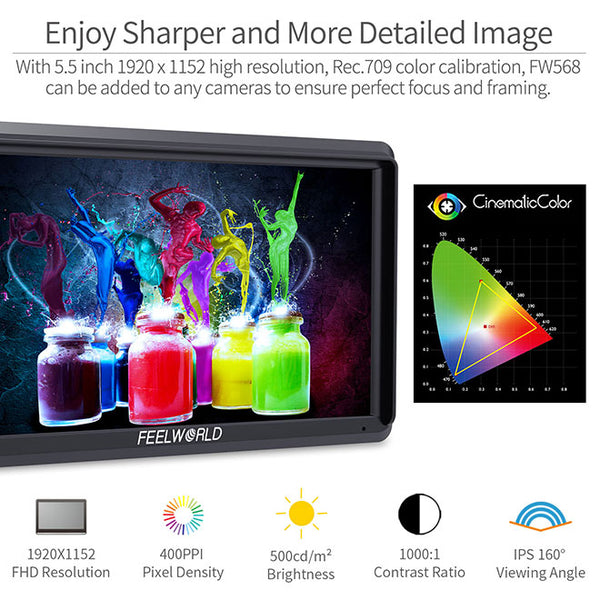

5.5” LCD, 1920x1152 Resolution
High resolution, brighter full of colors
The FW568 V2 provides a sharp image, ideal for focus pulling and image analysis on set and in the field. With native 1920x1152 high resolution and 16:9 display, 500cd/m2 brightness, 1000:1 contrast ratio, delivers excellent detail, so you can enjoy sharper and richer colors image, full-screen display uniform, no difference, no trailing. Its size, weight and resolution make it an attractive option for DSLR shooters looking to attach it straight to the camera.
nikon field monitor
Large Viewing Angles for All-round Visibility
IPS monitor, gives you a large visual view to enjoy, offers consistent image clarity and colors from 160-degree viewing angle vertically and horizontally. And the wide viewing angle makes it easy for multiple crew members to watch at the same time.
dslr camera monitor screen
True Color · Professional Color Calibration
Use Rec.709 color standard
Accurate color reproduction
small monitor
field monitor
Intuitive Controls and Menus
The menu controls are intuitive and easy to use. Two different feature buttons which are programmable to the various features that you use the most.
hdmi monitor dslr

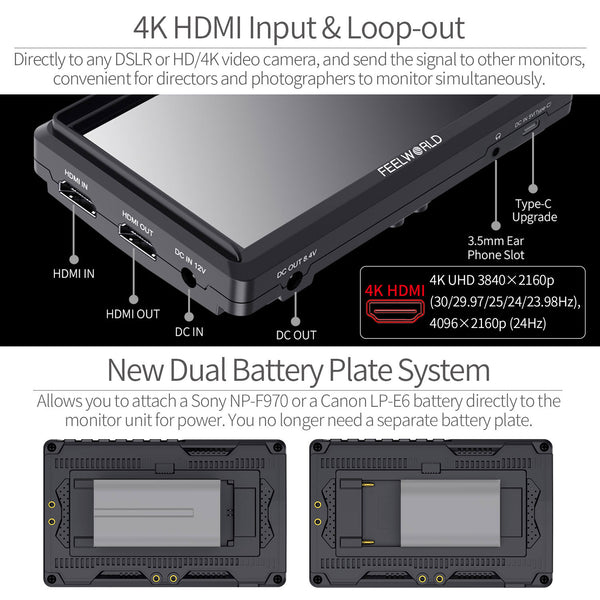

4K HDMI Input & Loop Output
The FW568 has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. The HDMI output can transmission to broadcast monitor, convenience director and photographer monitoring at the same time.
external monitor camera

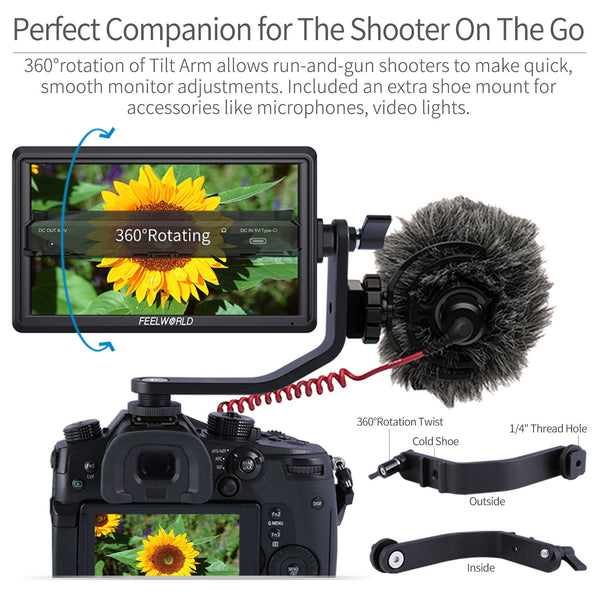

Multiple Installation Methods
Convenient for various angle monitoring
The FEELWORLD FW568 has a standard 1/4" mounting point (bottom, right) for attaching it to the camera and rig. The 1/4 screw can remove mounted to the bottom or right side.
monitor for camera dslr
Flexible Install Both on Camera and Gimbal
If you install it on the bottom of the device, you can also combine the image flip function to maintain the correct orientation of the screen!
FW568 equipped with one 1/4 screw, if you also want to fast install at gimbal, you can buy one more 1/4 screw.
portable monitor for camera
Newest Sunshade Design, Easy Install
The FW568 monitor is equipped with a sunshade, which allows the photographer to focus more on the video and avoid the interference of strong light, providing a better visual experience.
hdmi monitor camera

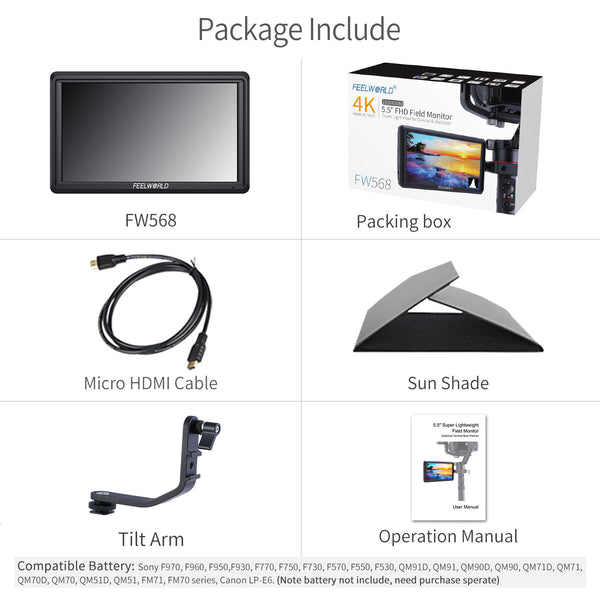

Package Include

Standard Accessories

 Micro HDMI Cable
1× Sunshade
1× Tilt Arm
1× Operation Manual

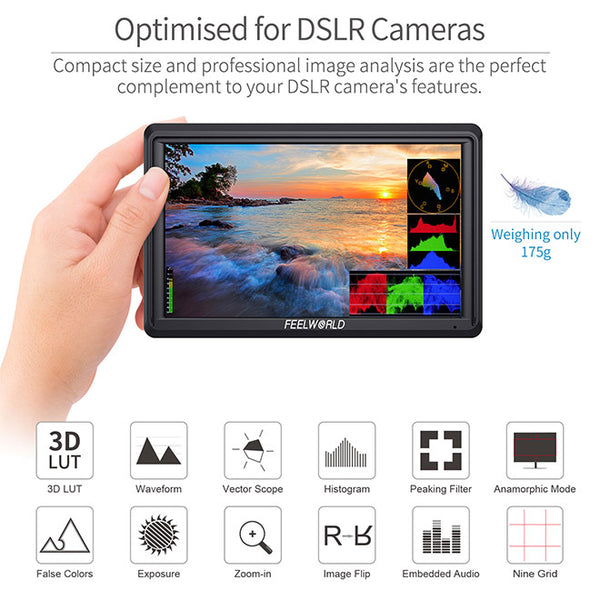

Video Assist Functions
1. High Resolution: Full HD 1920x1152
2. High Contrast: 1000:1
3. High Brightness: 500cd/m²
4. 160° wide viewing angles IPS Panel

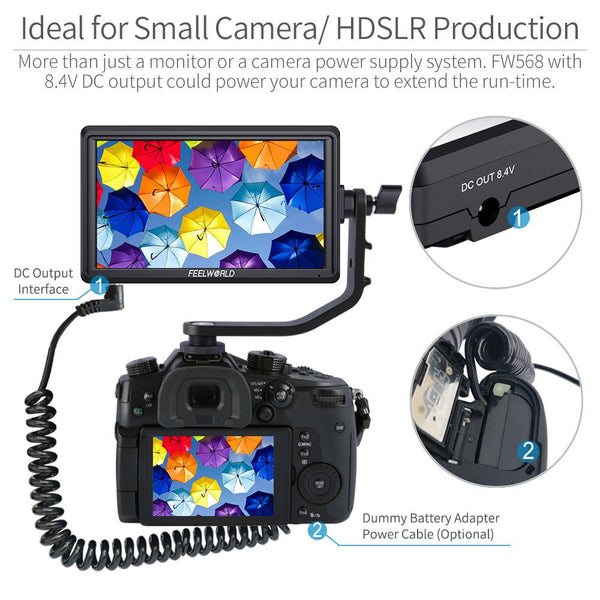

5. Provides auxiliary power out; allowing shooters to power their cameras
6. Custom 3D LUT import (up to 32)
7. All waves
8. Waveform (RGB, Y, YUV)
9. Histogram (RGB1, Y, RGB2)
10. Peaking Focus Assist (Red,Green,Blue three colors optional highlight over parts of the image in focus)
11. False Colors
12. Zebra Exposure
13. Nine Grid
14. Scan Mode (Under Scan, Over Scan)
15. Zoom (4x,9x,16x)
16. Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
17. Pixel to Pixel
18. Center Marker
19. Safe Area (80%,85%,90%,93%,96%,2.35:1)
20. Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
21. Marker Color (Red,Green,Blue,White,Black)
22. Check Field (Red/Green/Blue/Mono)
23. Image Flip (H, V, H/V)
24. Image Freeze
25. Zoom All (0~500 adjustable)
26. U/D & L/R Zoom (0~500 adjustable)
27. Color Temperature Adjustmentcamera field monitor

Embedded Audio Monitoring
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring. The audio meter is green, and will turn yellow when exceeds -20dB, and turn red when exceeds -9dB.

canon monitor

Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the putline color between red, green, blue according to different tone of the subject.

4k dslr monitor

False Colors
The False Colors filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.

hdmi camera monitor

Exposure (zebras)
The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern. It is considered overexposed and displays the moving warning lines onto the over exposed areas. 1-100IRE adjustable.

4k field monitor

Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.

hd 501 monitor

Zoom In (4X, 9X, 16X)
Image magnification is HD signal in any part, an amplification for high quality close-up.

5  camera monitor

Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
Built-in selection of no squeeze, 1.3× or 2.0× allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not de-squeeze in camera. A 2.0× mag mode, magnifies the center of your image so you can check the focus of your scaled image.

5” on camera monitor

Image Flip
The Horizontal,Vertical and Hor&Ver of the image around flip.

5 monitor dslr

Nine Grid
Zoom one of the images to realize the full screen. You can switch the Mark color between Red, Green, Blue, White, Black according to different tone of the subject.

smallhd focus sony

Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.

5 inch field monitor

Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1). You can switch the Mark color between Red, Green, Blue, White and Black according to different tone of the subject.

small hd focus 5

Ratio Marker
(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1). Frame blanking zone includes 6 Levels, from 0-6 (Transparent to Black). You can switch the Mark color between red, green, blue, white and black according to different tone of the subject.

5 inch camera monitor

Specifications
Display Spec.
 Model  FW568 V2
 Screen Size  5.5" IPS
 Resolution  1920x1152 pixels
 Pixel Pitch  0.0639 (H) x 0.0213 (W) mm
 Aspect Ratio  16:9
 Brightness  500cd/m²
 Contrast Ratio  1000:1
 Backlight  LED
 Viewing Angle  80°/80°(L/R) 80°/80°(U/D)

Input
 1 X HDMI  HDMI

Output
 1 X HDMI   HDMI
 1 X DC Output  DC Output

Audio
 Audio  Stereo Headphone

HDMI Input/ Output Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)

General
 Input Voltage  DC7~24V
 Power Consumption  ≤9W
 Power Connector  DC
 Working Temperature  -20°C~55°C
 Storage Temperature  -30°C~65°C
 Install Way   ¼-20 thread points
 Unit Size  142Lx87.2Hx27.5D (mm)
 Unit Weight  175g
 Color Box Size  186L*124W*80H(mm)
 Outer Carton Qty  10
 Outer Carton Size  465*200*326 (mm)
 Gross Weight  6.5kgs

Advanced Features
* All Waves
* Waveform (RGB, Y, YUV)
* Histogram (RGB1, Y, RGB2)
* Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
* False Colors
* Zebra Exposure (1-100IRE adjustable)
* Check Field (Red, Green, Blue, Mono)
* Scan Mode (Under Scan, Over Scan)
* Anamorphic Mode (1.3x, 2.0x, 2.0x mag)
* Image Flip (H, V, H/V)
* Image Freeze
* Center Marker
* Screen Marker (80%,85%,90%,93%,96%, 2.35:1)
* Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
* Color Temperature Adjustment
* Nine Grid (Zoom one of the images to realize the full screen)
* Zoom (4X, 9X, 16X)
* Aspect Ratio
* Pixel to Pixel
* Zoom All
* U/D Zoom
* L/R Zoom
