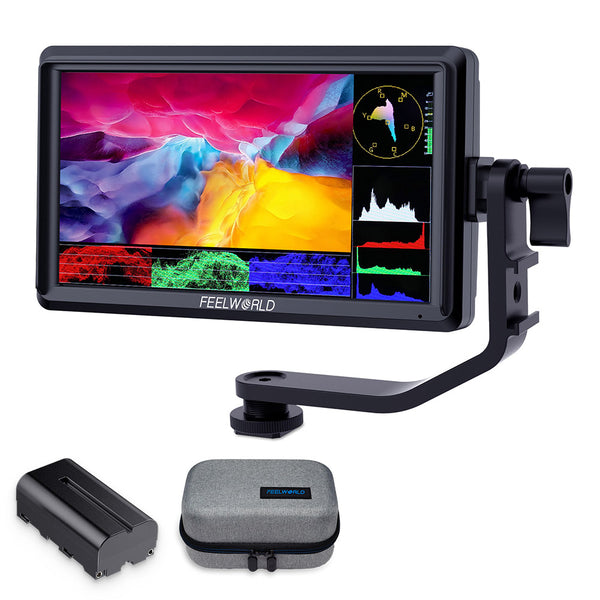

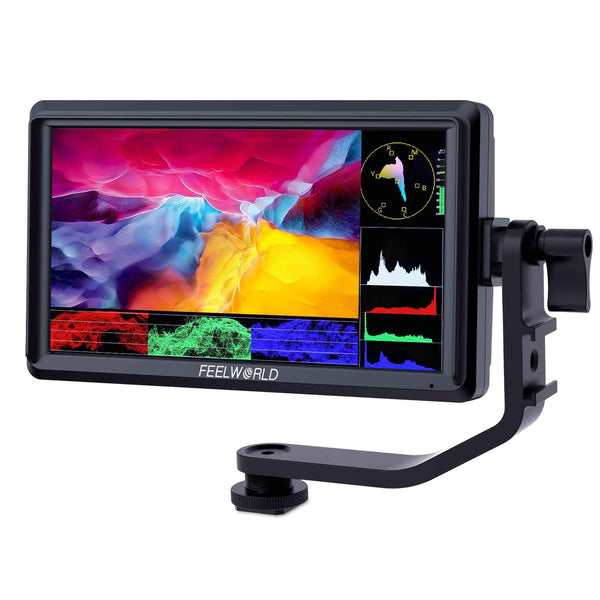

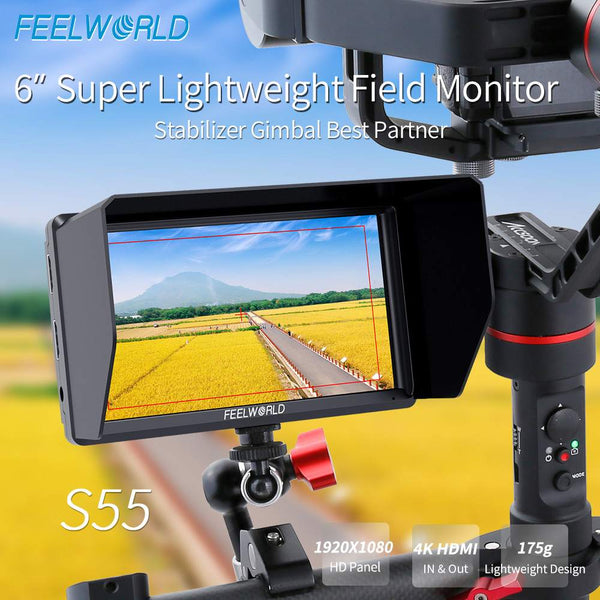

FEELWORLD S55 5.5 inch camera DSLR field monitor video assist IPS 1280x800 4K HDMI DC Out tilt arm

Product image 1feelworld s55 5.5 inch small field monitor full HD
Product image 2smallhd focus 5
Product image 35 camera monitor
Product image 4ikan 5 inch 4k monitor
Product image 5dslr monitor 5 inch
Product image 6zhiyun monitor 5.5
Product image 75 inch hdmi monitor
Product image 8smallhd 5
Product image 9feelworld 5 monitor

Regular price $139.00

Fast Shipping
Stock in US, Europe, Japan, Australia, China
FEELWORLD Newest Improve User Experience Design

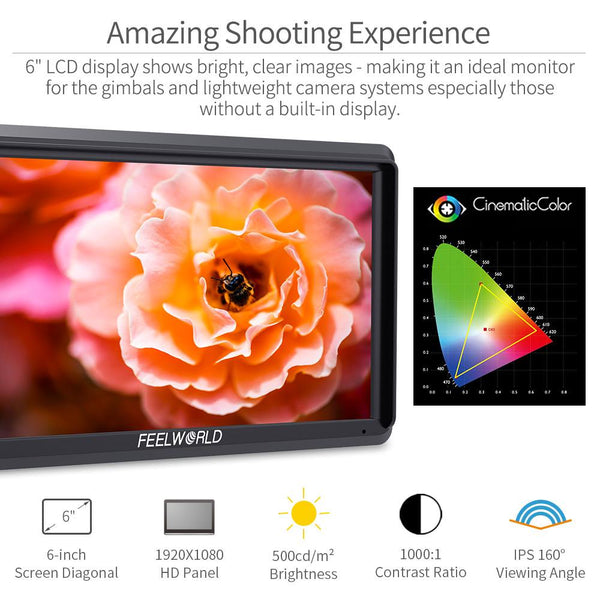

【Amazing Shooting Experience】5.5" LCD display with 1280X720 resolution shows bright, clear images - making it an ideal monitor for the gimbals and lightweight camera systems especially those without a built-in display.
【4K HDMI Input/ Output Without Delay】Support 4K format: 4K UHD 3840X2160p (30/29.97/25/24/23.98Hz), 4096X2160p (24Hz). S55 Features HDMI I/O connections to HDMI cameras and can output to larger on set monitors for instant review.

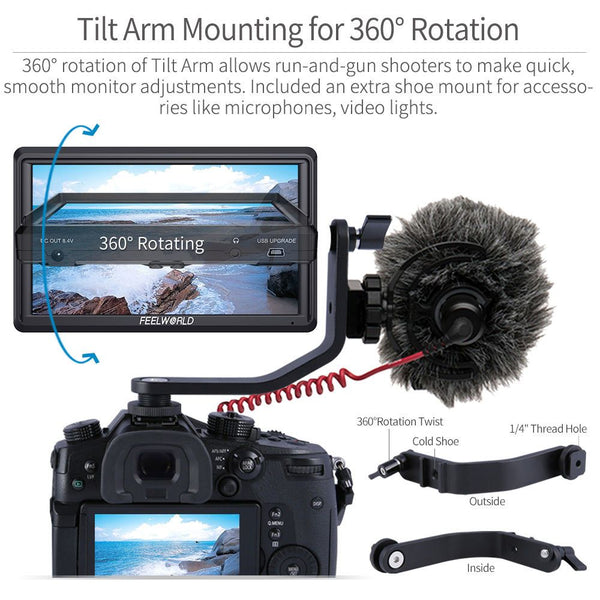

【Tilt Arm Mounting for 360° Rotation】360° rotation of Tilt Arm allows you tilt the view for excellent framing. Included an extra shoe mount for accessories like microphones, video lights.

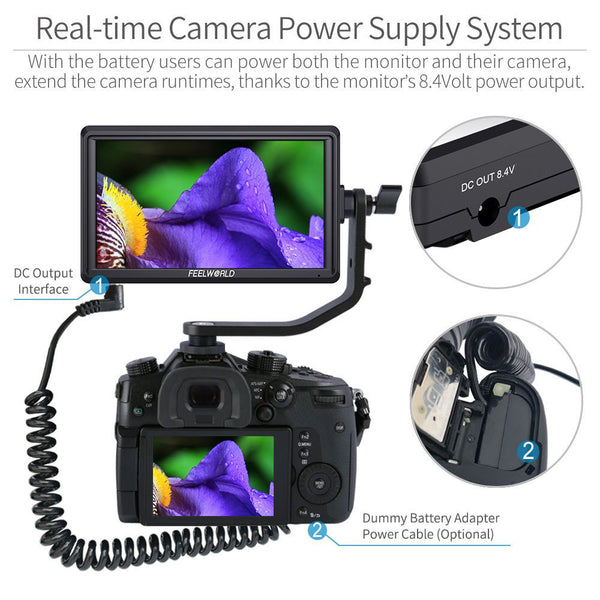

【Real-time Camera Power Supply System】With the battery users can power both the monitor and their camera, extend the camera runtimes, thanks to the monitor’s 8.4Volt power output. Dummy Battery (optional for Sony, Canon, Nikon, Panasonic). Integrates with a dual-purpose battery plate: compatible Sony F970, Canon LP-E6.

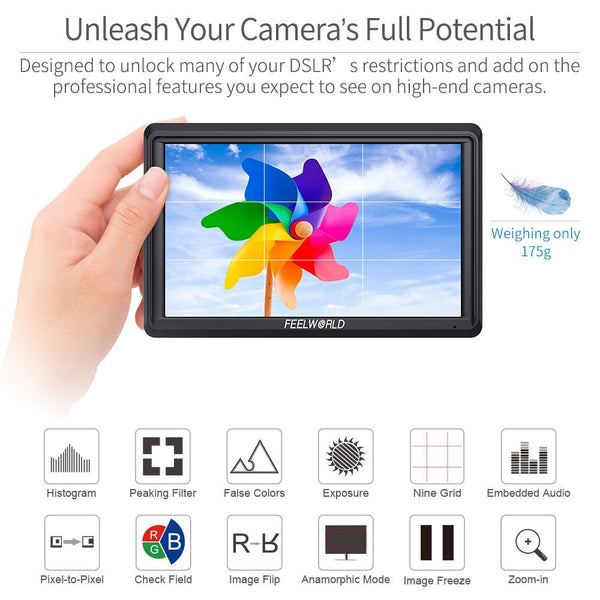

【Unleash Your Camera’s Full Potential】Have three fast keys for quick operation. Designed to unlock many of your DSLR’s restrictions and add on the professional features you expect to see on high-end cameras. Include Focus Assist, Histogram, False Colors, Zebra Exposure, Aspect Ratio, Image Flip, Nine Grid, Zoom, Anamorphic, Image Flip, Safe Area, etc.
external monitor dslr
5.5" Monitor with Widescreen
The high resolution 5.5" LCD display shows bright, clear images - making it an ideal monitor for the discerning DSLR user. The S55 features a panel with native 1280 x 720 resolution, 500cd/m2 brightness, 1000:1 contrast ratio, which facilitates the onscreen image to be a more vibrant, more accurate rendition of what the camera sensor sees.
video camera monitors
Different Angles, The Same Beautiful Picture
IPS monitor, gives you a large visual view to enjoy, offers consistent image clarity and colors from 160-degree viewing angle vertically and horizontally. And the wide viewing angle makes it easy for multiple crew members to watch at the same time.
ultra thin monitor
True Color · Professional Color Calibration
Use Rec.709 color standard
Accurate color reproduction
small monitor
Intuitive Controls and Menus
The menu controls are intuitive and easy to use. Two different feature buttons which are programmable to the various features that you use the most.
hd field monitor

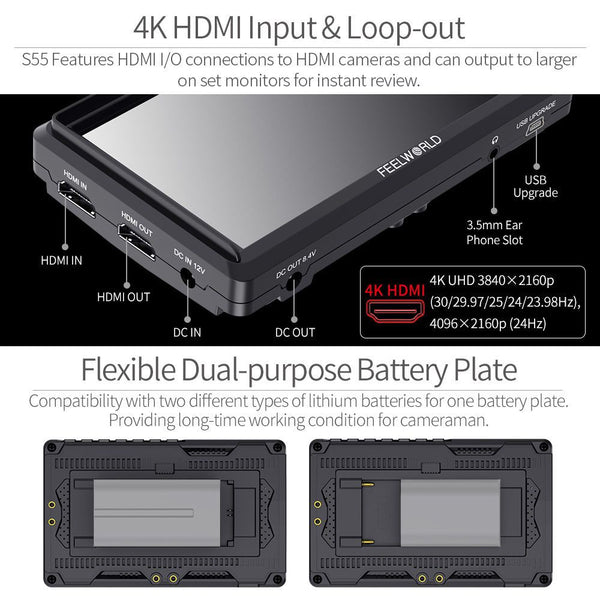

4K HDMI Input & Loop Output
The S55 has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. The HDMI output can transmission to broadcast monitor, convenience director and photographer monitoring at the same time.
4k field monitor with peak focus
Multiple Installation Methods
Convenient for various angle monitoring
The FEELWORLD S55 has a standard 1/4" mounting point (bottom, right) for attaching it to the camera and rig. The 1/4 screw can remove mounted to the bottom or right side.
5inch camera monitor
Flexible Install Both on Camera and Gimbal
If you install it on the bottom of the device, you can also combine the image flip function to maintain the correct orientation of the screen!
S55 equipped with one 1/4 screw, if you also want to fast install at gimbal, you can buy one more 1/4 screw.
sokani 5  monitor
Newest Sunshade Design, Easy Install
The S55 monitor is equipped with a sunshade, which allows the photographer to focus more on the video and avoid the interference of strong light, providing a better visual experience.
hdmi monitor camera
Video Assist Functions
* Brightness Histogram
* Embedded Audio
* Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
* False Colors
* Zebra Exposure (1-100IRE adjustable)
* Scan Mode (Under Scan, Over Scan)
* Check Field (Red, Green, Blue, Mono)
* Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
* Image Flip (H, V, H/V)

* Image Freeze
* Center Marker
* Screen Marker (80%,85%,90%,93%,96%, 2.35:1)
* Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
* Color Temperature Adjustment
* Nine Grid (Zoom one of the images to realize the full screen)
* Zoom (4X, 9X, 16X)
* Aspect Ratio
* Pixel to Pixel
* Zoom All (0~100 adjustable)
* U/D Zoom (0~100 adjustable)
* L/R Zoom (0~100 adjustable)

Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left:Dark, Right:Bright)and a stack of the number of pixels at each level of brightness along the vertical axis.

camera field monitor

Embedded Audio Monitoring
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring. The audio meter is green, and will turn yellow when exceeds -20dB, and turn red when exceeds -9dB.

canon monitor

Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the putline color between red, green, blue according to different tone of the subject.

4k dslr monitor

False Colors
The False Colors filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.

hdmi camera monitor

Exposure (zebras)
The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern. It is considered overexposed and displays the moving warning lines onto the over exposed areas. 1-100IRE adjustable.

4k field monitor

Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.

hd 501 monitor

Zoom In (4X, 9X, 16X)
Image magnification is HD signal in any part, an amplification for high quality close-up.

5  camera monitor

Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
Built-in selection of no squeeze, 1.3× or 2.0× allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not de-squeeze in camera. A 2.0× mag mode, magnifies the center of your image so you can check the focus of your scaled image.

5” on camera monitor

Image Flip
The Horizontal,Vertical and Hor&Ver of the image around flip.

5 monitor dslr

Nine Grid
Zoom one of the images to realize the full screen. You can switch the Mark color between Red, Green, Blue, White, Black according to different tone of the subject.

smallhd focus sony

Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.

5 inch field monitor

Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1). You can switch the Mark color between Red, Green, Blue, White and Black according to different tone of the subject.

small hd focus 5

Ratio Marker
(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1). Frame blanking zone includes 6 Levels, from 0-6 (Transparent to Black). You can switch the Mark color between red, green, blue, white and black according to different tone of the subject.

5 inch camera monitor

Specifications
Display Spec.
  • Screen Size: 5.5" IPS
  • Resolution: 1280x720 pixels
  • Pixel Pitch: 0.0945(H) x 0.0315(W) mm
  • Aspect Ratio: 16:9
  • Brightness: 500cd/m²
  • Contrast Ratio: 1000:1
  • Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)
Input/ Output
  • Input: 1 X 4K HDMI
  • Output: 1X 4K HDMI, DC Output
  • Audio:  3.5mm Stereo Headphone
  • HDMI Input/ Output Support Format: 480i/576i/480p/576p; 1080i (60/59.94/50); 720p (60/59.94/50/30/29/25/24/23.98); 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF); 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
General
  • Input Voltage: DC7~24V
  • Consumption: ≤9W
  • Connector: DC
  • Working Temperature: -20°C~55°C
  • Storage Temperature: -30°C~65°C
  • Install Way: One removable  ¼-20 thread points
  • Unit Size: 142Lx87.2Hx27.5D (mm)
  • Unit Weight: 175g

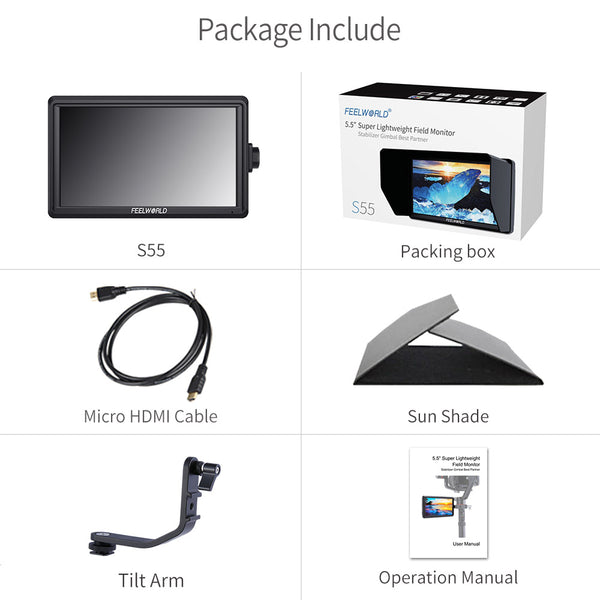

Package Included
Standard Accessories

 Micro HDMI Cable
1× Sunshade
1× Tilt Arm
1× Operation Manual
