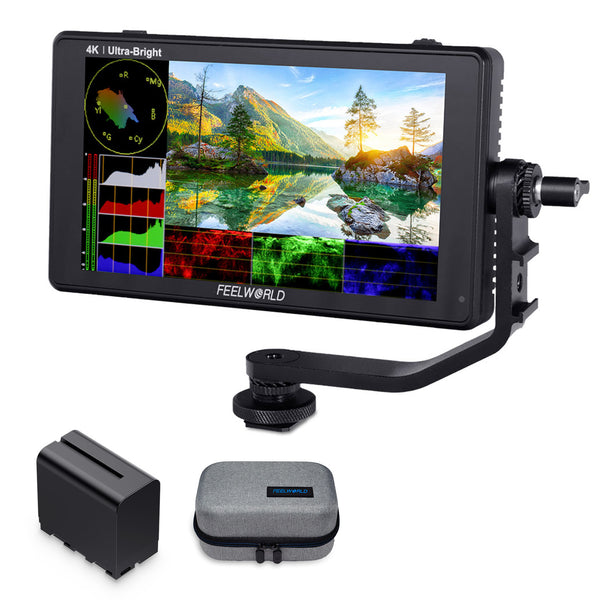

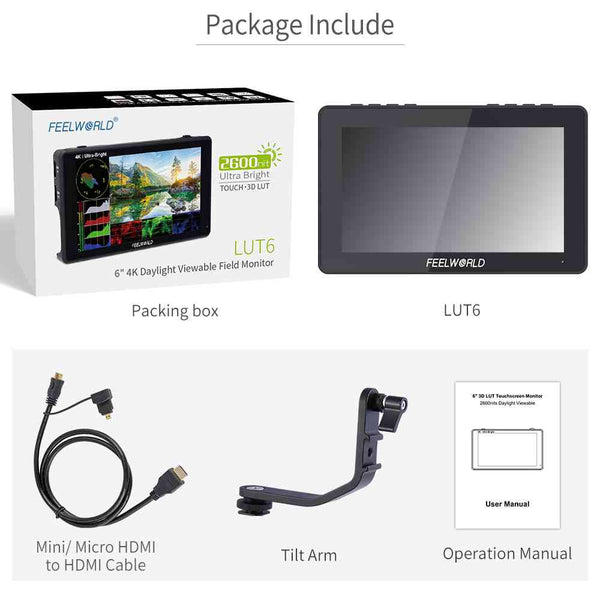

【Package Include】1× Mini/ Micro HDMI to HDMI Cable, 1× Tilt Arm, 1× Manual【Note: battery not include】.【One year warranty】We are always do do our best to improve our product and better services, just feel free to contact us.

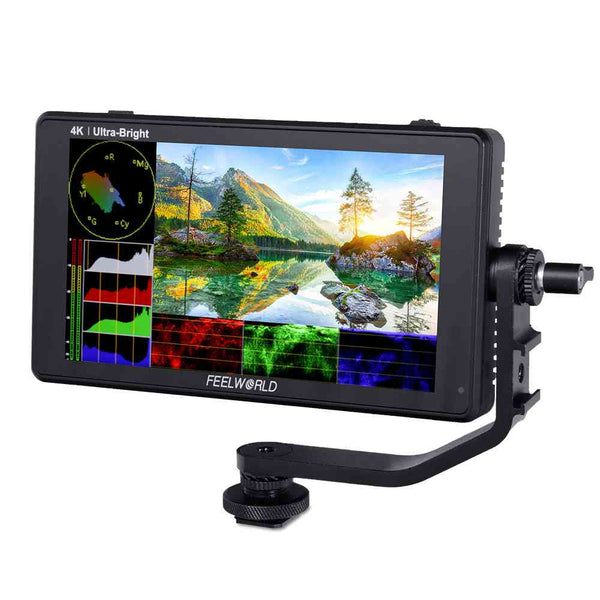

Designed for Every Situation The LUT6 equips filmmakers with the benefits of a large on-camera display without making the camera set up feel cumbersome. The front features a large high resolution, daylight viewable LCD touchscreen, there are video connections on the left side and SD card slot on the bottom, and space for a NP-F battery on the back. The outer frame features standard 1/4" mount points on the bottom and right for attaching it to camera and rig. This design detail makes the LUT6 easy to attach to a camera and easy to share with a team member or client on set.

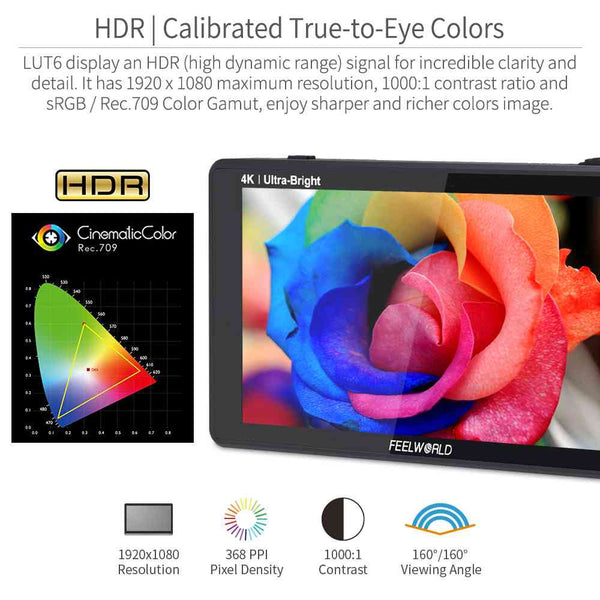

Built-in HDR/De-log 3DLUT LUT6 has built-in HLG 2020, HLG 709, HLG P3 HDR 3D LUT, and Rec709 De-slog3 LUTs, includes SLOG2, SLOG3, LOGC, VLOG. The monitor can display an HDR (high dynamic range) signal for incredible clarity and detail, simplifies the complexities of shooting Log and HDR, helping you to replicate post-production workflows at the moment when it matters most–while shooting.
Support Touch Screen and Button Control Menu You can also get a quick glance at your menu settings and features with an easy tap on the screen. It also supports physical buttons control. Tap/Rotate the wheel button for quick selection and function settings. Tap the power switch to turn off the touch function, designed to prevent misuse.

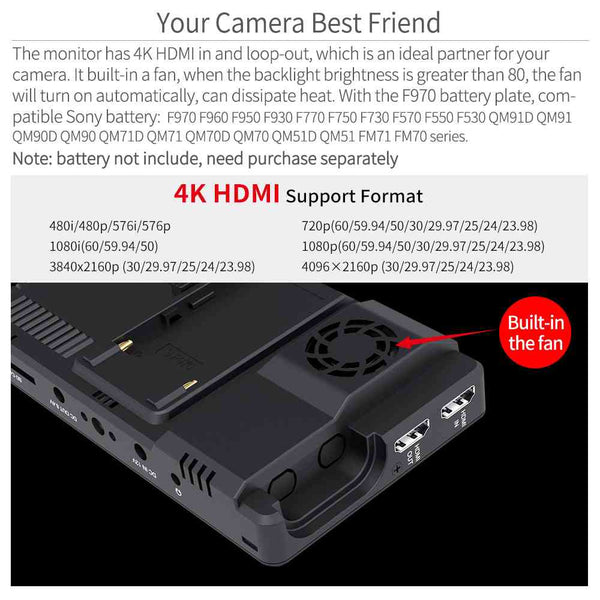

4K HDMI Loop-out The LUT6 has 4K HDMI in and loop-out, it's the ability to display live picture on multiple displays at once while still maintaining the original video quality. Connect to Wireless Transmitter Transmission to film crew director monitoring at the same time. Without the cable more flexible to transition between scenes effortlessly for outdoor shooting.
Connect to Director Monitor Display live picture on multiple displays simultaneously.

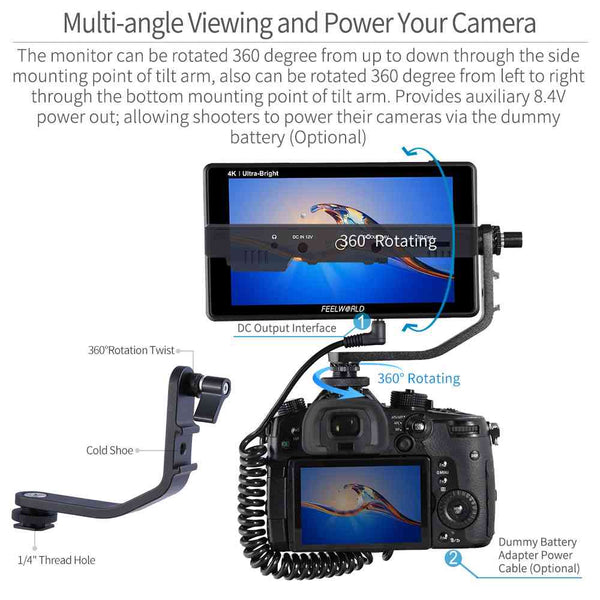

Attach to Cameras, Equipment Carts or Hang It Anywhere The standard sized mounting points make it easy to mount and are compatible with third party rigging equipment. There are 2 mounting points located on the bottom and right easy to mount.
1× Mini/ Micro HDMI to HDMI Cable 1× Tilt Arm 1× Manual
Video Assist Functions

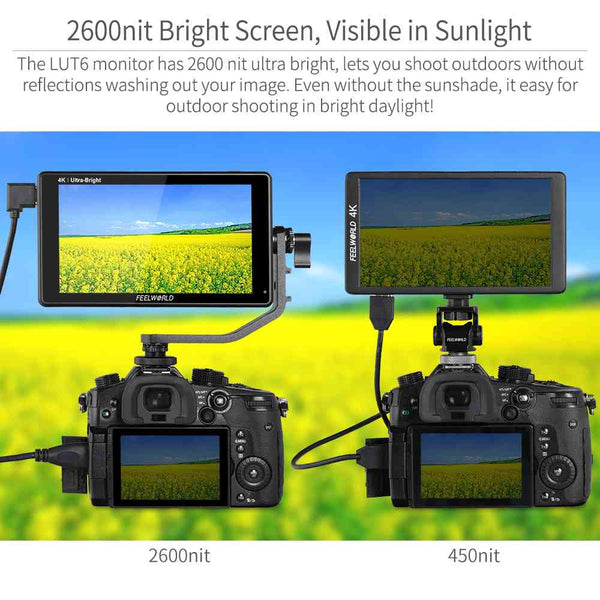

* Support 3D LUT Log to Rec.709, user 3D LUT Upload * Support Touch Menu * Support HDR Monitoring * High Resolution: Full HD 1920x1080, High Contrast: 1000:1 * 2600nit Daylight Viewable * 160° wide viewing angles IPS Panel * Provides auxiliary power out; allowing shooters to power their cameras * Parade (RGB, YUV, Y) * Vector Scope * RGB Histogram * Histogram * Peaking Focus Assist (red, green,blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable) * False Colors * Zebra Exposure (1%~100% adjustable) * Scan Mode (Under Scan, Over Scan) * Zoom (100%~300%) * Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag) * Pixel to Pixel * Nine Grid * Center Marker * Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1) * Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1) * Marker Color (red, green, blue, white, black, yellow) * Check Field (red, green, blue, gray) * Image Flip (H, V, H/V) * Image Freeze * Color Temperature Adjustment

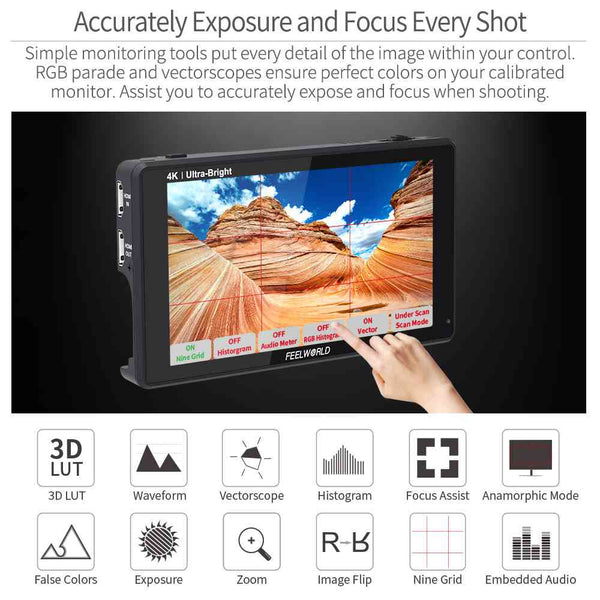

Video Analysis Assistant Pattern Waveform / Vector scope / Histogram
Waveform This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.
Vectorscope Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.
Brightness Histogram The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left:Dark, Right:Bright)and a stack of the number of pixels at each level of brightness along the vertical axis.
RGB Histogram RGB histogram is a graphical display of the distribution of tones, shows the Red, Green and Blue channels histograms. Suitable for HD-SDI and HDMI signal monitoring.
All Scopes Mode This mode shrinks your video image to approximately the size of a 6" display and tiles your choice of waveform, vectorscope, histogram, and embedded audio on the border of your video.
Audio Meter Monitoring The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring. Under SDI audio, it supports 4-ch embedded audio meters display. Under HDMI audio, only 2 channels audio displays are supported.
Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the peaking color between yellow, red, green, blue, white according to different tone of the subject. The focus level can be adjusted from 1 to 10 levels.
The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.
Exposure (Zebras) The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern. It is considered overexposed and displays the moving warning lines onto the over exposed areas. There is a 1%-100% zebra value that can be adjusted.
Check Field Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or gray pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Zoom In (100%～300%) Image magnification is HD signal in any part, an amplification for high quality close-up. The touch panel can help you zoom in quickly, zoom out and move the image after zooming in.
Anamorphic Mode Built-in selection of no squeeze, 1.25x, 1.33x, 1.5x, 2.0x or 2.0x mag allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not de-squeeze in camera.
Image Flip Image flip is to flip the image horizontally, vertically, and horizontally/vertically. Simultaneously turning on the horizontally flip and the vertical flip can achieve horizontal/vertical simultaneous flipping.
Nine Grid Nine grid is the most common and basic composition method. The area of the picture is divided into nine equal grids.
Pixel to Pixel Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.
Center Marker & Safety Marker Safety Marker for View Finding and Composition (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1). You can switch the Mark color between Yellow, Red, Green, Blue, White and Black according to different tone of the subject.
Ratio Marker There are a variety of ratio marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1); the transparency of the ratio marker has 4 display effects optional (0%, 25%, 50%, 75%). You can switch the marker colors between yellow, red, green, blue, white and black according to different tone of the subject.

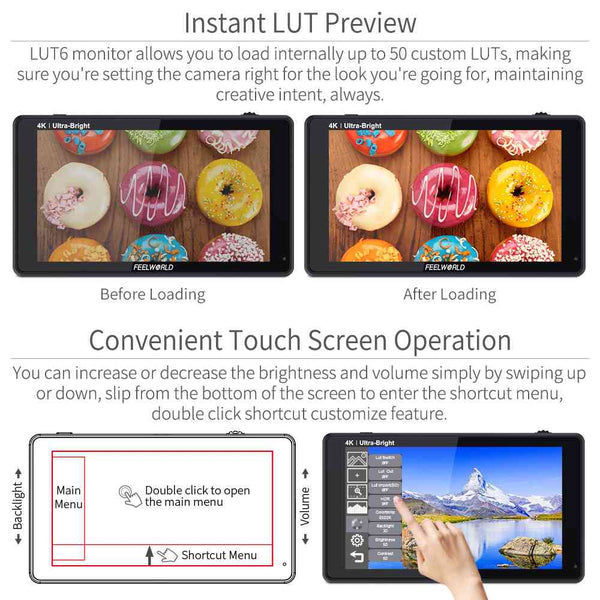

User LUT Cube Import
Provides S-log2/3, V-log, Log-C etc, to convert log mode to REC709 for all major cameras. The LUT loading function makes the color calibration work of the previous shooting easier and more intuitive, optimizes the workflow and improves work efficiency. User creative 3D LUT cube or calibration 3D LUT cube can be uploaded to monitor by SD card.
Input: 1 X HDMI Output: 1 X HDMI, 1 X DC (Barrel (3.5mm outer, 1.1mm inner) barrel output for powering cameras via camera specific adaptor) Audio: 3.5mm Stereo Headphone HDMI Input/ Output Support Format: 480i/576i/480p/576p 1080i (60/59.94/50) 720p (60/59.94/50/30/29.97/25/24/23.98) 1080p (60/59.94/50/30/29.97/25/24/23.98) 3840x2160p (30/29.97/25/24/23.98) 4096×2160p (30/29.97/25/24/23.98)
General Input Voltage: DC7～24V Power Consumption: ≤16W Working Temperature: -20°C~50°C Storage Temperature: -30°C~60°C Install Way: 1/4"-20 Thread Socket (Right, Bottom) Battery Plate: F970 Battery Plate Unit Size: 162Lx93.2Hx29D(mm) Unit Weight: 300g Battery Plate: Dual F970 Battery Plate Compatible Battery: Sony F970, F960, F950,F930, F770, F750, F730, F570, F550, F530, QM91D, QM91, QM90D, QM90, QM71D, QM71, QM70D, QM70, QM51D, QM51, FM71, FM70 series. Because the FEELWORLD LUT7S monitor is the ultra bright, we recommend use Sony F970 battery, two F970 batteries can use 4-5 hours. (Note battery not include, need purchase separate)
