![monitor camera](https://cdn.shopifycdn.net/s/files/1/0034/9968/8005/files/field-monitors-for-dslr_10398f5f-5728-42c4-a4e1-ea933f5a3dd7.jpg?v=1639551670)
![external camera screen](https://cdn.shopifycdn.net/s/files/1/0034/9968/8005/files/1_591deb0b-66e5-47ef-b001-d268d92754ae.jpg?v=1639552386)
![external camera monitor](https://cdn.shopifycdn.net/s/files/1/0034/9968/8005/files/3_6980a4f2-a4fd-46bd-8b35-69c8f954e914.jpg?v=1639552477)
Standard Accessories:
1× Mini HDMI Cable
1× Sunshade
1× Hot Shoe Mount
1× F970 Battery Plate
1× Tally Kit
1× U bracket
1× Operation Manual
Features
1. Wide view angle IPS Screen, High resolution 1920x1200, bright, colorful display
2. High Contrast: 800:1
3. High Brightness: 320cd/m²
4. 160°wide viewing angles IPS Panel
5. 3G-SDI, HDMI, Ypbpr, Video, Audio(L/R) inputs and 3G-SDI, HDMI, Ypbpr, Video loop-through outputs
6. Histogram
7. Peaking Focus Assist (Red,Green,Blue three colors optional highlight over parts of the image in focus)
8. False Colors
9. Zebra Exposure
10. Nine Grid
11. Embedded Audio Meter
12. Camera Mode
13. Zoom (4x,9x,16x)
14. Anamorphic Mode (1.3x,2.0x,2.0x mag)
15. Pixel to Pixel
16. Center Marker
17. Safe Area (80%,85%,90%,93%,96%,2.35:1)
18. Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
19. Marker Color (Red,Green,Blue,White,Black)
20. Check Field (Red/Green/Blue/Mono)
21. Image Flip (H, V, H/V)
22. Image Freeze
23. Zoom All
24. U/D & L/R Zoom
25. Color Temperature Adjustment
Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left:Dark, Right:Bright)and a stack of the number of pixels at each level of brightness along the vertical axis.
Embedded Audio Monitoring
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring. The audio meter is green, and will turn yellow when exceeds -20dB, and turn red when exceeds -9dB.
Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the putline color between red, green, blue according to different tone of the subject.
False Color
The False Color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.
Exposure (zebras)
The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern. It is considered overexposed and displays the moving warning lines onto the over exposed areas. 1-100IRE adjustable.

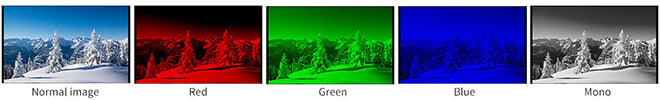

Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
![camera field monitor](https://cdn.shopifycdn.net/s/files/1/0034/9968/8005/files/check-field_d032d78e-35c6-47af-a809-742e3fb949b6.jpg?v=1639553674)

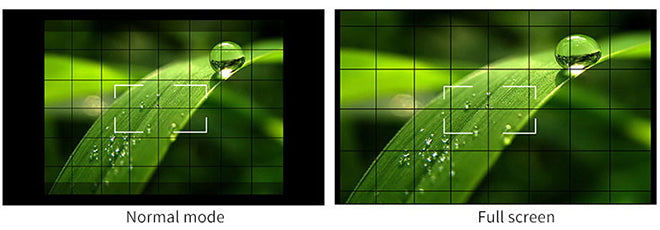

It will be full screen under camera mode.
![dslr video monitor](https://cdn.shopifycdn.net/s/files/1/0034/9968/8005/files/Camera-Mode-Function_6ccb0b0f-14fa-4725-b27c-eae0c4bf0808.jpg?v=1639553755)

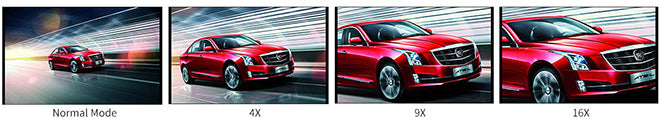

Image magnification is HD signal in any part, an amplification for high quality close-up.
![dslr hdmi monitor](https://cdn.shopifycdn.net/s/files/1/0034/9968/8005/files/Zoom-In-_4X_-9X_-16X_fb50f156-cad4-4d2c-b5dc-205dc0972cd0.jpg?v=1639553825)

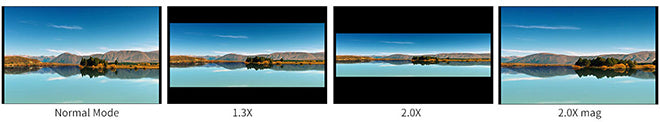

Built-in selection of no squeeze, 1.3× or 2.0× allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not de-squeeze in camera.
![dslr field monitor](https://cdn.shopifycdn.net/s/files/1/0034/9968/8005/files/Anamorphic-Mode_78a077e9-6b52-42af-95b8-f139a06d048d.jpg?v=1639553890)
Image Flip
The Horizontal,Vertical and Hor&Ver of the image around flip.
Nine Grid
Zoom one of the images to realize the full screen. You can switch the Mark color between Red, Green, Blue, White, Black according to different tone of the subject.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.
Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1). You can switch the Mark color between Red, Green, Blue, White and Black according to different tone of the subject.
Ratio Marker
(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1). Frame blanking zone includes 6 Levels, from 0-6 (Transparent to Black). You can switch the Mark color between red, green, blue, white and black according to different tone of the subject.
SPECIFICATIONS
Model | FW1018SPV1 (FW1018PV1: W/O SDI) |
Screen Size | 10.1" IPS |
Resolution | 1920×1200 pixels |
Dot pitch | 0.113(H)×0.113 (W) mm |
Aspect Ratio | 16:10 |
Brightness | 320cd/m² |
Contrast Ratio | 800:1 |
Backlight | LED |
Viewing Angle | 85°/85°(L/R) 85°/85°(U/D) |

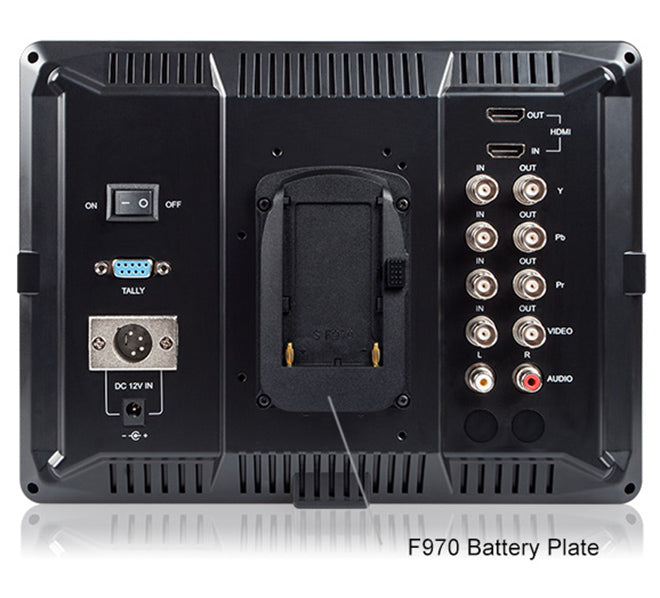

1 X BNC | 3G-SDI |
1 X HDMI | HDMI |
1 X BNC | Y |
1 X BNC | Pb |
1 X BNC | Pr |
1 X BNC | Video |
2 X RCA | Audio(L/R) |

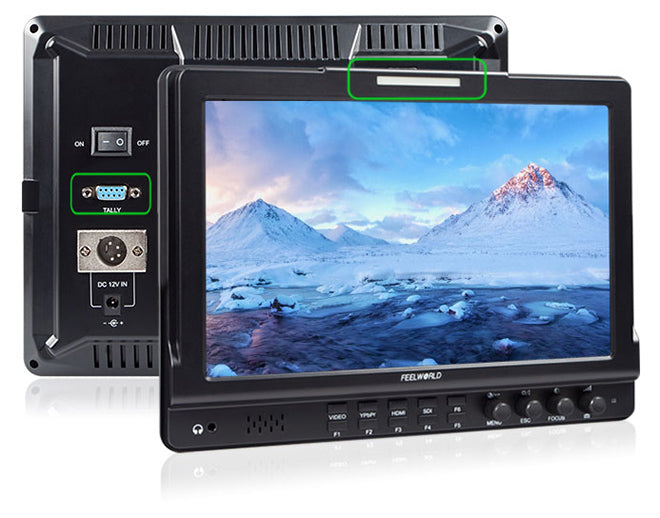

1 X DB-9 | Tally |
1 X BNC | 3G-SDI |
1 X HDMI | HDMI |
1 X BNC | Y |
1 X BNC | Pb |
1 X BNC | Pr |
1 X BNC | Video |
Audio | Stereo Headphone, Speaker |
480i/576i |
720p(60/59.94/50/30/29/25/24/23.98) |
1080i(60/59.94/50) |
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
480i/576i/480p/576p |
1080i (60/59.94/50) |
720p (60/59.94/50/30/29/25/24/23.98) |
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
4K UHD 3840×2160p (30/29.97/25/24/23.98 Hz), 4096×2160p (24Hz) |
Input Voltage | DC7~24V |
Power Consumption | ≤12W |
Power Connector | DC/ 4-pin XLR |
Battery Plate | F970 (Standard); D28S, LP-E6, V-Mount, Anton Bauer (Optional) |
Working Temperature | -20°C~55°C |
Storage Temperature | -30°C~65°C |
Install Way | 1/4"-20 Thread Socket (3 sides left&right&bottom) |
Unit Size | 258L×192H×39D mm |
Unit Weight | 810g |
Color Box Size | 304L*85w*265H(mm) |
Outer Carton Qty | 5 |
Outer Carton Size | 477*319*317 (mm) |
Gross Weight | 16.8kgs |
* Brightness Histogram |
* Embedded Audio |
* Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus) |
* False Colors |
* Zebra Exposure (1-100IRE adjustable) |
* Check Field (Red, Green, Blue, Mono) |
* Camera Mode |
* Anamorphic Mode (1.3x, 2.0x, 2.0x mag) |
* Image Flip (H, V, H/V) |
* Image Freeze |
* Center Marker |
* Screen Marker (80%,85%,90%,93%,96%, 2.35:1) |
* Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1) |
* Color Temperature Adjustment |
* Nine Grid (Zoom one of the images to realize the full screen) (Nonsupport in 4K input) |
* Zoom (4X, 9X, 16X) (Nonsupport in 4K input) |
* Aspect Ratio (Nonsupport in 4K input) |
* Pixel to Pixel (Nonsupport in 4K input) |
* Zoom All (Nonsupport in 4K input) |
* U/D Zoom (Nonsupport in 4K input) |
* L/R Zoom (Nonsupport in 4K input) |
