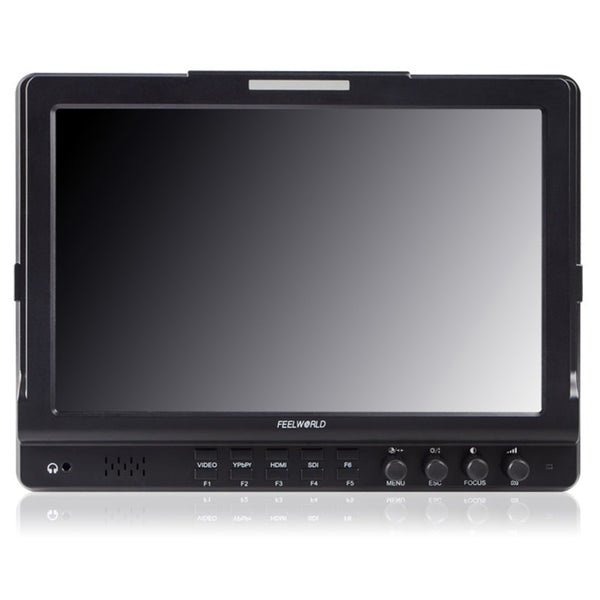

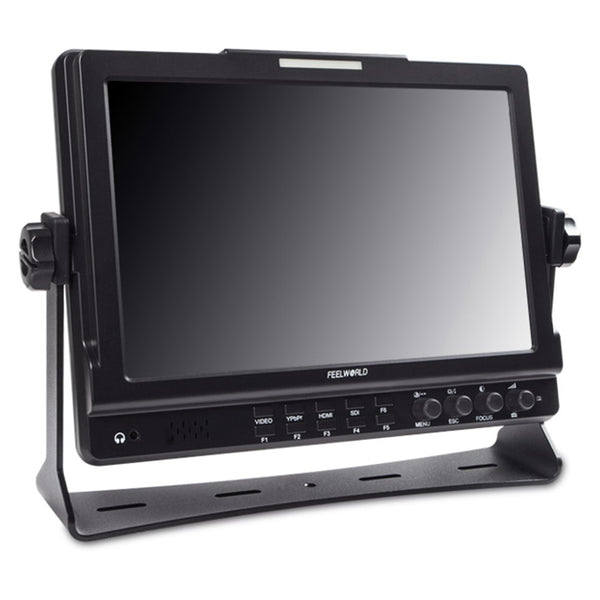

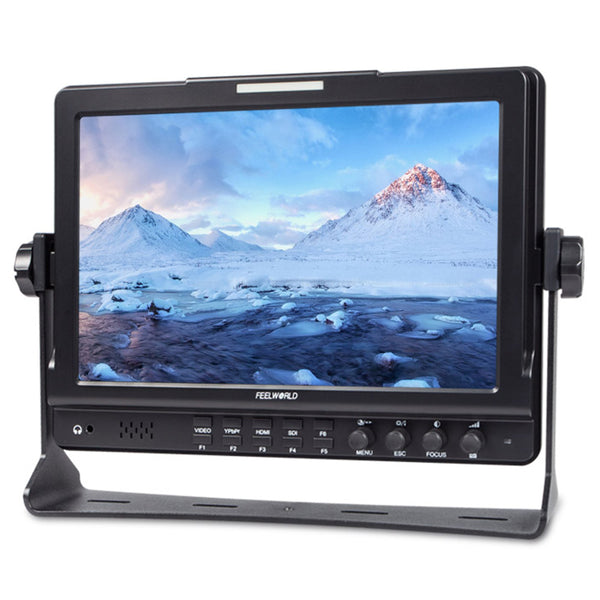

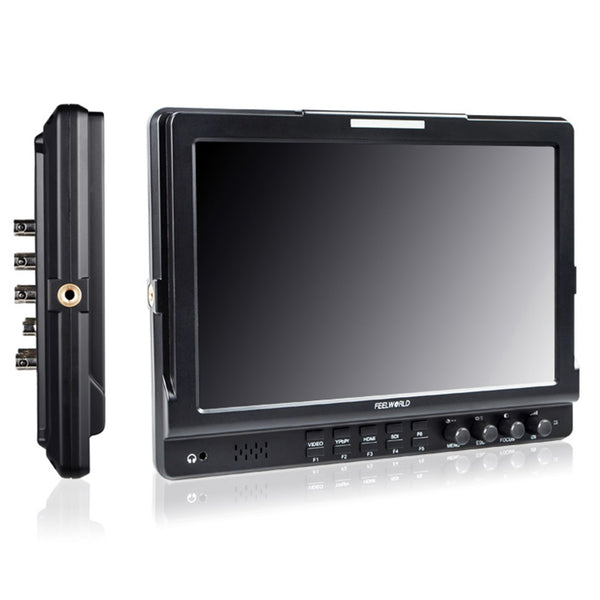

FEELWORLD FW1018V1 10.1" IPS 1920x1200 HDMI DSLR Camera Field Monitor with Peaking Focus
Regular price
$289.99
Shipping calculated at checkout
Only 12 in stock
. Stock in US, EU, JP, AU, CA, RU local warehouse
US/ CA/ RU: 3-7 days delivery
EU/ AU: 3-10 days delivery
JP: 2-3 days delivery
. Shiping Worldwide 200+ Country
7-10 days delivery.
. Warranty: One year warranty time and 14 days return and refund for US, EU, JP, AU, RU.
. VAT for EU customers: The VAT is asked by EU government, and it will be charged when you place the order even if you buy our products on our Amazon Store. There is no difference wherever you buy it, and the VAT is included in the price on those online shopping plates.
More detail: Shipping Policy | Warranty Policy
The FEELWORLD FW1018V1 10.1”IPS HD LCD On-Camera monitor is one of the best monitors of its kind. Thanks to FEELWORLD's good price-quality ratio, many professional photographers and videographers choose for FEELWORLD. The monitor also features image measurement functions like Focus Assist, Center Marker, Safe Frame, Check Field, Camera Mode, Aspect Ratio, Image Flip, Pixel-to-Pixel and Image Freeze you will be able to analyze the image. These functions are assignable across six function buttons on the front panel.
The large size 10.1 inch enables you to focus clearly on your shots and eliminate the guesswork from framing. It blows up your tiny built-in camera screen to a much larger display that enables easier viewing and won't strain your eyes. With brightness levels of 320cd/m², a 800:1 contrast ratio and 170° vertical and horizontal viewing angles this monitor is a useful tool when shooting video or stills, providing you with a larger image than your camera's built-in viewfinder or LCD screen. FW1018V1 provides maximum versatility with multiple inputs: HDMI, Ypbpr, Video, Audio(L/R) and HDMI, Ypbpr, Video loop-through output, you can connect it directly to any DSLR or HD video.
1920X1200 IPS FHD PanelEnjoy Consistent Images from Any Perspective. FW1018V1 uses an IPS panel, which provides a wide 170°/170° viewing angle and brightness output, up to 320cd/m². This means you'll be able to see accurate, consistent and bright images from any viewing point.
Professional Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.
3-color Tally Light
DB-9 input signal
There is front TALLY lights with 3 colors display, and controlled via DB-9 ports on the rear panel.
Flexible Battery SystermThe monitor is powered from 4-pin XLR connector, or 12V DC input with the included power adapter (optional), and FW1018V1 has flexible battery systerm that supports F970, LP-E6, D28S, Anton, Sony V mount plates of your choice.
Standard Accessories:
1× Mini HDMI Cable
1× Sunshade
1× Hot Shoe Mount
1× F970 Battery Plate
1× Tally Kit
1× U bracket
1× Operation Manual
1× Mini HDMI Cable
1× Sunshade
1× Hot Shoe Mount
1× F970 Battery Plate
1× Tally Kit
1× U bracket
1× Operation Manual
FEATURES
1. Wide view angle IPS Screen, High resolution 1920x1200, bright, colorful display
2. High Contrast: 800:1
3. High Brightness: 320cd/m²
4. 160°wide viewing angles IPS Panel
5. HDMI, Ypbpr, Video, Audio(L/R) inputs and HDMI, Ypbpr, Video loop-through outputs
6. Peaking Focus Assist
7. Nine Grid
8. Camera Mode
9. Zoom (4x,9x,16x)
10. Anamorphic Mode (1.3x,2.0x,2.0x mag)
11. Pixel to Pixel
12. Center Marker
13. Safe Area (80%,85%,90%,93%,96%,2.35:1)
14. Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
15. Marker Color (Red,Green,Blue,White,Black）
16. Check Field (Red/Green/Blue/Mono)
17. Image Flip (H, V, H/V)
18. Image Freeze
19. Zoom All
20. U/D & L/R Zoom
21. Color Temperature Adjustment
Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. It's shows Red highlight over parts of the monochrome image in focus.
Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Camera Mode Function
It will be full screen under camera mode.
It will be full screen under camera mode.
Zoom In (4X, 9X, 16X)
Image magnification is HD signal in any part, an amplification for high quality close-up.
Image magnification is HD signal in any part, an amplification for high quality close-up.
Anamorphic Mode
Built-in selection of no squeeze, 1.3× or 2.0× allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not de-squeeze in camera.
Built-in selection of no squeeze, 1.3× or 2.0× allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not de-squeeze in camera.
Image Flip
The Horizontal,Vertical and Hor&Ver of the image around flip.
The Horizontal,Vertical and Hor&Ver of the image around flip.
Nine Grid
Zoom one of the images to realize the full screen. You can switch the Mark color between Red, Green, Blue, White, Black according to different tone of the subject.
Zoom one of the images to realize the full screen. You can switch the Mark color between Red, Green, Blue, White, Black according to different tone of the subject.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.
Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1). You can switch the Mark color between Red, Green, Blue, White and Black according to different tone of the subject.
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1). You can switch the Mark color between Red, Green, Blue, White and Black according to different tone of the subject.

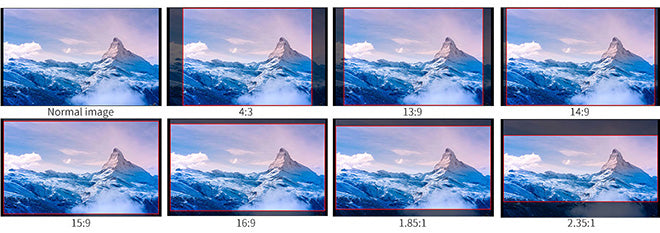

Ratio Marker
(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1). Frame blanking zone includes 6 Levels, from 0-6 (Transparent to Black). You can switch the Mark color between red, green, blue, white and black according to different tone of the subject.
(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1). Frame blanking zone includes 6 Levels, from 0-6 (Transparent to Black). You can switch the Mark color between red, green, blue, white and black according to different tone of the subject.
SPECIFICATIONS
| Model | FW1018V1 |
| Screen Size | 10.1" IPS |
| Resolution | 1920×1200 pixels |
| Dot pitch | 0.113(H)×0.113 (W) mm |
| Aspect Ratio | 16:10 |
| Brightness | 320cd/m² |
| Contrast Ratio | 800:1 |
| Backlight | LED |
| Viewing Angle | 85°/85°(L/R) 85°/85°(U/D) |

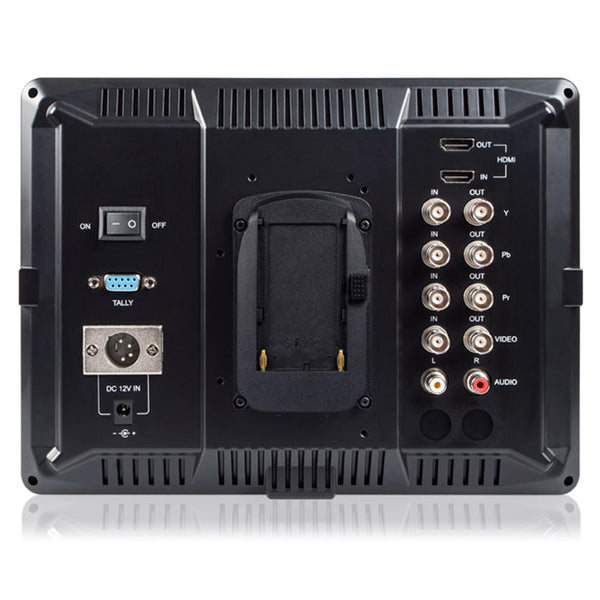

Input
| 1 X HDMI | HDMI |
| 1 X BNC | Y |
| 1 X BNC | Pb |
| 1 X BNC | Pr |
| 1 X BNC | Video |
| 2 X RCA | Audio(L/R) |
| 1 X DB-9 | Tally |
Output
| 1 X HDMI | HDMI |
| 1 X BNC | Y |
| 1 X BNC | Pb |
| 1 X BNC | Pr |
| 1 X BNC | Video |
Audio
| Audio | Stereo Headphone, Speaker |
SDI Support Format
| 480i/576i |
| 720p(60/59.94/50/30/29/25/24/23.98) |
| 1080i(60/59.94/50) |
| 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
HDMI Support Forma
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
| 4K UHD 3840×2160p (30/29.97/25/24/23.98 Hz), 4096×2160p (24Hz) |
General
| Input Voltage | DC7～24V |
| Power Consumption | ≤12W |
| Power Connector | DC/ 4-pin XLR |
| Battery Plate | F970 (Standard); D28S, LP-E6, V-Mount, Anton Bauer (Optional) |
| Working Temperature | -20°C~55°C |
| Storage Temperature | -30°C~65°C |
| Install Way | 1/4"-20 Thread Socket (3 sides left&right&bottom) |
| Unit Size | 258L×192H×39D mm |
| Unit Weight | 810g |
| Color Box Size | 304L*85w*265H(mm) |
| Outer Carton Qty | 5 |
| Outer Carton Size | 477*319*317 (mm) |
| Gross Weight | 16.8kgs |
Advanced Features
| * Peaking Focus Assist |
| * Check Field (Red, Green, Blue, Mono) |
| * Camera Mode |
| * Anamorphic Mode (1.3x, 2.0x, 2.0x mag) |
| * Image Flip (H, V, H/V) |
| * Image Freeze |
| * Center Marker |
| * Screen Marker (80%,85%,90%,93%,96%, 2.35:1) |
| * Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1) |
| * Color Temperature Adjustment |
| * Nine Grid (Zoom one of the images to realize the full screen) (Nonsupport in 4K input) |
| * Zoom (4X, 9X, 16X) (Nonsupport in 4K input) |
| * Aspect Ratio (Nonsupport in 4K input) |
| * Pixel to Pixel (Nonsupport in 4K input) |
| * Zoom All (Nonsupport in 4K input) |
| * U/D Zoom (Nonsupport in 4K input) |
| * L/R Zoom (Nonsupport in 4K input) |
