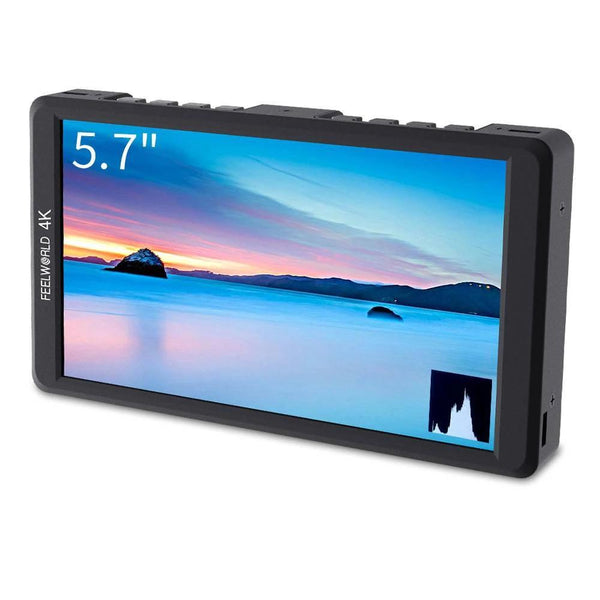

FEELWORLD F570 5.7 inch Small DSLR Camera Field Monitor full HD 1920x1080 4K HDMI Aluminum Housing

Product image 14k hdmi camera monitor
Product image 2Camera Field Video Monitor
Product image 3Camera Field Video Monitor
Product image 4Camera Field Video Monitor
Product image 5Camera Field Video Monitor
Product image 6Camera Field Video Monitor
Product image 7Camera Field Video Monitor

Regular price $189.99

Fast Free Shipping
Stock in US, Europe, Japan, Australia, China
Let your Video Shooting Easier
● FEELWORLD has been committed to providing the comprehensive broadcast monitoring and solutions for the professional filmmakers.

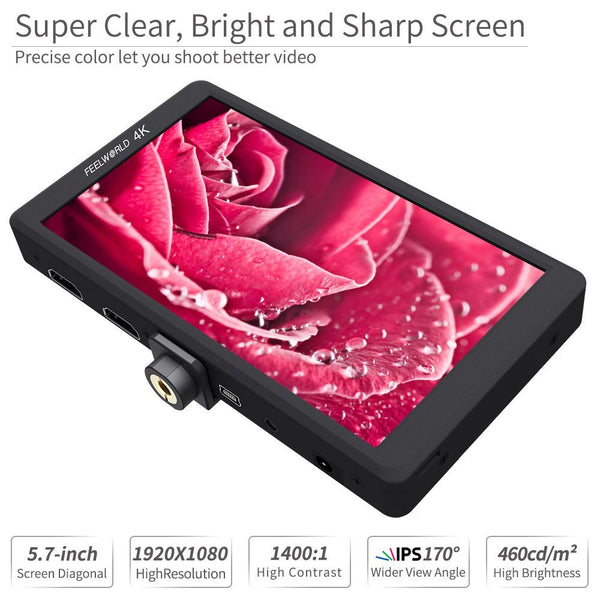

● 5.7" IPS screen,Full HD 1920x1080 high resolution,High brightness: 460cd/m2,High Contrast: 1400:1, support 4K HDMI input and output
● Viewing angle: 85°/85°(L/R) 85°/85°(U/D), wide 170° viewing angle makes it easy for multiple members of the crew to watch it at the same time
● Ultra-thin design 18.6mm thickness, compact and rugged for stabilizer,portable small and 280g lightweight monitor,it's easy to hold in your hands
● Professional Rec.709 HD color standard, and color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video
feelworld f570
Shoot Better Video
See and capture every detail with confidence
Whether it's a wedding, an indie film, or a television commercial, you need to make sure your images are perfectly sharp and captured at the highest possible quality, no matter what type of camera you use. FEELWORLD F570 helps you make sure every shot is in focus and gives you professional images
5.7 inch field monitor
True Color · Professional Color Calibration
Use Rec.709 color standard
Accurate color reproduction
small monitor
Multiple Install Way
To convenient the various angles monitoring
The 1/4 screw can remove mounted to the bottom or right side. It features standard 1/4" mount points for attaching it to cameras and rigs. The external 1/4 screw design is used to make the monitor lighter and thinner.
feelworld 5.7

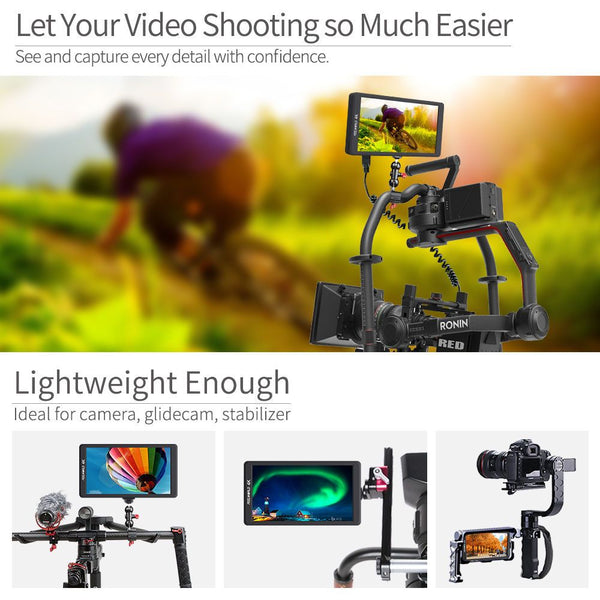

FEELWORLD F570 High resolution monitoring for stabilizer
4k ips monitor
Flexible Battery System
When connected to the 12V DC input you get continuous power or you can run it off of compatible rechargeable battery. And the F570 supports F970 (standard), D28S/D54, LP-E6 and U60 battery plate of your choice.
monitor 1920x1080

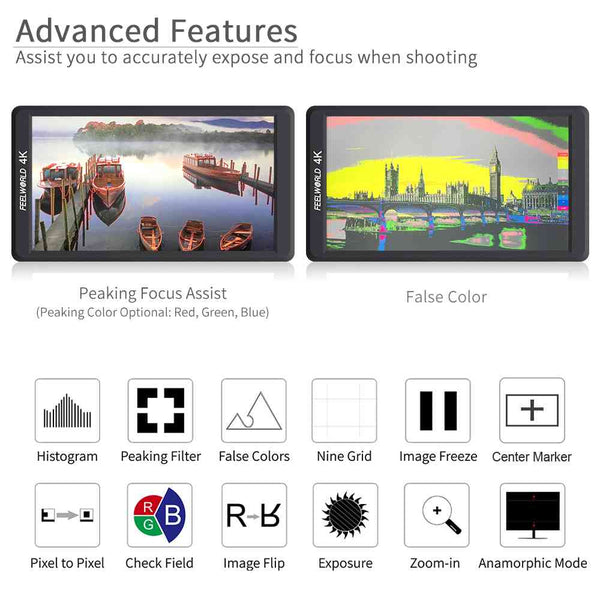

Video Assist Functions
* Brightness Histogram
* Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
* False Colors
* Zebra Exposure (1-100IRE adjustable)
* Scan Mode (Under Scan, Over Scan)
* Check Field (Red, Green, Blue, Mono)
* Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
* Image Flip (H, V, H/V)

* Image Freeze
* Center Marker
* Screen Marker (80%,85%,90%,93%,96%, 2.35:1)
* Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
* Color Temperature Adjustment
* Nine Grid (Zoom one of the images to realize the full screen)
* Zoom (4X, 9X, 16X)
* Aspect Ratio
* Pixel to Pixel
* Zoom All (0~100 adjustable)
* U/D Zoom (0~100 adjustable)
* L/R Zoom (0~100 adjustable)

Brightness Histogram
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left:Dark, Right:Bright)and a stack of the number of pixels at each level of brightness along the vertical axis.

camera field monitor

Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the putline color between red, green, blue according to different tone of the subject.

4k dslr monitor

False Colors
The False Colors filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.

hdmi camera monitor

Exposure (zebras)
The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern. It is considered overexposed and displays the moving warning lines onto the over exposed areas. 1-100IRE adjustable.

4k field monitor

Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.

hd 501 monitor

Zoom In (4X, 9X, 16X)
Image magnification is HD signal in any part, an amplification for high quality close-up.

5  camera monitor

Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
Built-in selection of no squeeze, 1.3× or 2.0× allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not de-squeeze in camera. A 2.0× mag mode, magnifies the center of your image so you can check the focus of your scaled image.

5” on camera monitor

Image Flip
The Horizontal,Vertical and Hor&Ver of the image around flip.

5 monitor dslr

Nine Grid
Zoom one of the images to realize the full screen. You can switch the Mark color between Red, Green, Blue, White, Black according to different tone of the subject.

monitor camera

Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.

5 inch field monitor

Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1). You can switch the Mark color between Red, Green, Blue, White and Black according to different tone of the subject.

small hdmi monitor

Ratio Marker
(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1). Frame blanking zone includes 6 Levels, from 0-6 (Transparent to Black). You can switch the Mark color between red, green, blue, white and black according to different tone of the subject.

5 inch camera monitor

Specifications
Display Spec.
  • Screen Size: 5.7" IPS
  • Resolution: 1920x1080 pixels
  • Pixel Pitch: 0.0657x0.0219 mm
  • Aspect Ratio: 16:9
  • Brightness: 460cd/m²
  • Contrast Ratio: 1400:1
  • Backlight: LED
  • Viewing Angle: 85°/85°(L/R) 85°/85°(U/D)
Input/ Output

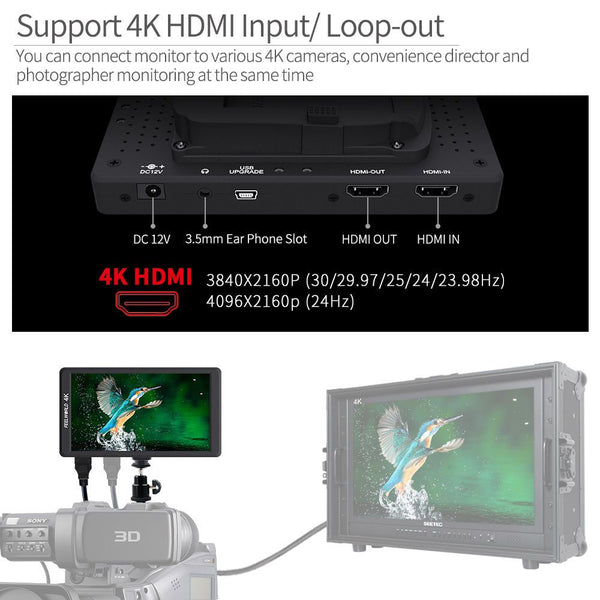

  • Input: 1 X 4K HDMI
  • Output: 1 X 4K HDMI
  • Audio:  3.5mm Stereo Headphone
  • HDMI Input/ Output Support Format: 480i/576i/480p/576p; 1080i (60/59.94/50); 720p (60/59.94/50/30/29/25/24/23.98); 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF); 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
General
  • Input Voltage: DC7~24V
  • Consumption: ≤8W
  • Connector: DC
  • Working Temperature: -20°C~55°C
  • Storage Temperature: -30°C~65°C
  • Install Way: One removable  ¼-20 thread points

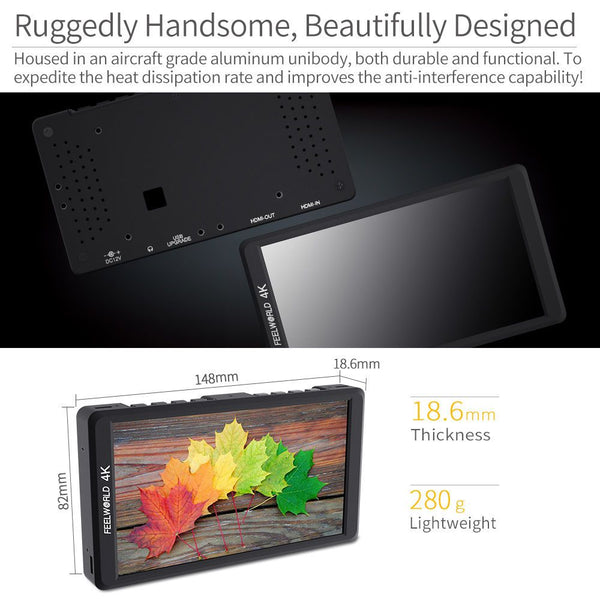

  • Unit Size: 148Lx82Hx18.63D (mm)
  • Unit Weight: 280g/310g (With F970 Plate)

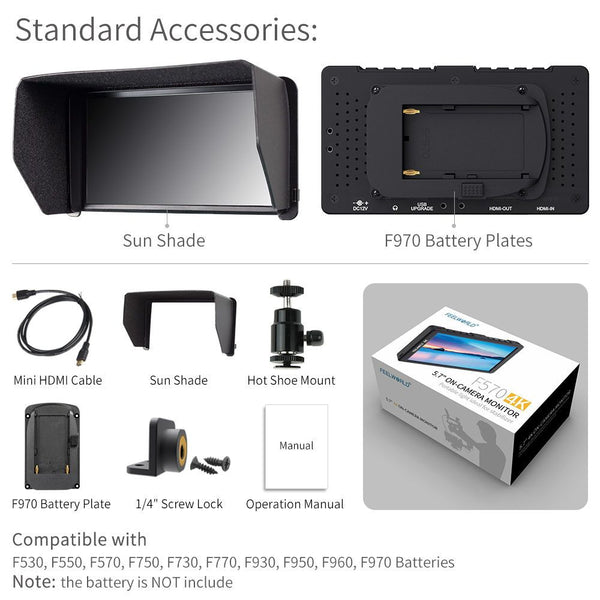

Package Included
Standard Accessories

 Mini HDMI Cable
1× Sunshade
1× Hot Shoe Mount
1× F970 Battery Plate
1× Operation Manual
