FEELWORLD T7S PRO 7 Inch 2000nit Aluminium Field DSLR Camera Monitor Ultra Bright 3G SDI 4K HDMI 60
Shipping calculated at checkout
Only 20 in stock
Shipping
US/ CA: 3-7 days delivery local warehouse
EU/ AU: 3-10 days delivery local warehouse
JP: 2-3 days delivery local warehouse
Worldwide 200+ Country：7-10 days delivery
VAT for EU customers:The VAT will be charged when Europe customers place the order on our official store or other e-commerce platforms.
Warranty
1 year warranty time and 30 days return.
Return to US,CA, EU, JP, AU local warehouse, other countries return to HK warehouse.
US subsidiaries provide fast and convenient local after-sales service.
More detail: Shipping Policy | Warranty Policy
Bright. Durable. Professional

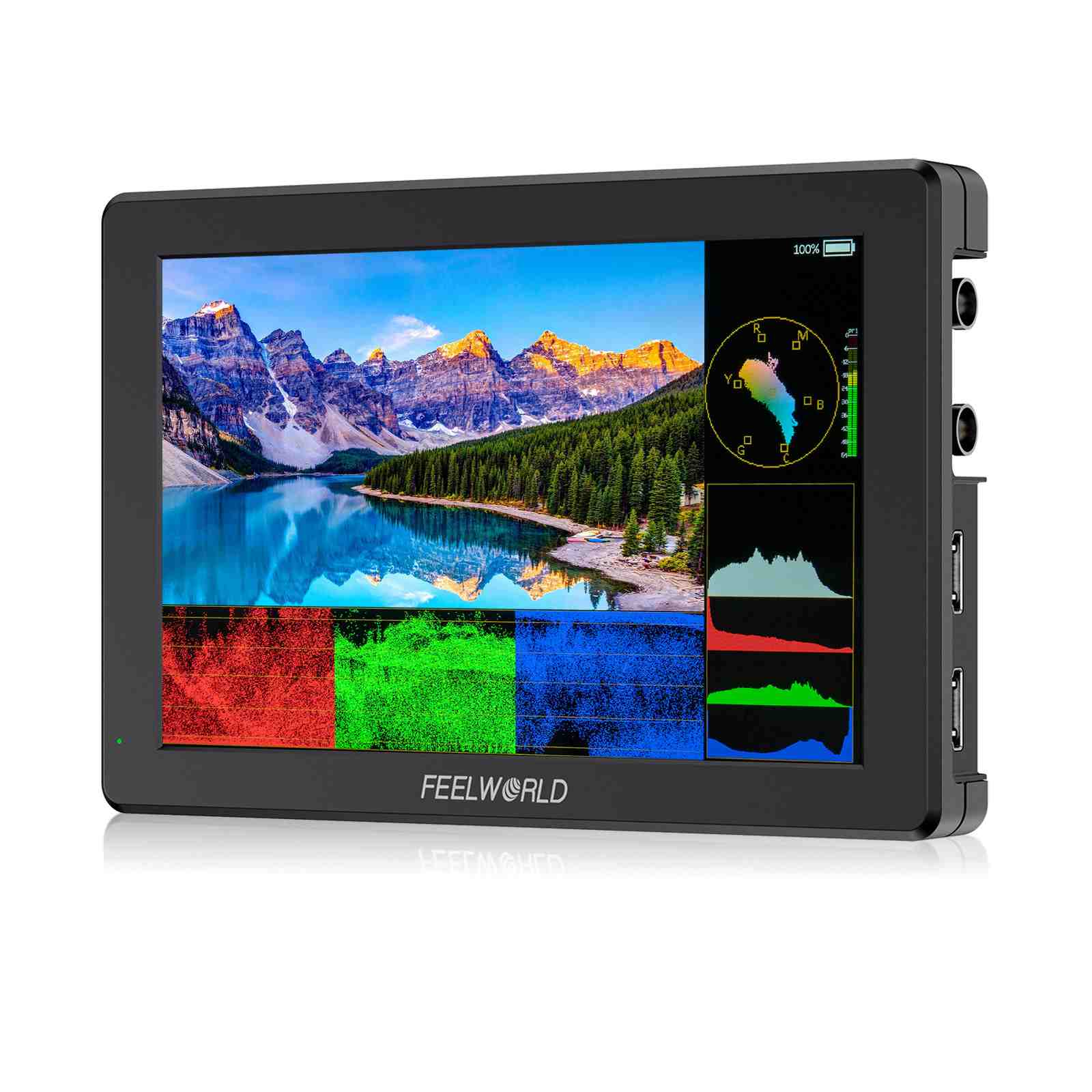

FEELWORLD T7S PRO is a full HD field monitor with 2000 nits ultra-high brightness, featuring an aluminum housing for heat dissipation and stable operation in high brightness mode. Equipped with professional 3G-SDI and 4K HDMI high-speed transmission interfaces directly connected to professional device, built-in waveform, focus assist, HDR, 3D-LUT allow you to quickly make videos. It is perfect for filmming, video creation, and live production.
The peak brightness of T7S PRO is 2000nits, lets you see your images clearly, even in bright daylight.
7-inch Full HD Screen
True-to-life colors and crystal-clear details
With extremely high resolution 7-inch IPS panel，provides excellent details,accurately reflect the original colors.Wide viewing clearly present more detailed image.
Rugged and Durable Aluminium Housing
T7S PRO features a rugged aluminum housing with excellent heat dissipation. Suitable for various shooting environments.
Quick Access with Custom Buttons
T7S PRO provides multiple intuitive buttons for easy menu navigation. Three customizable shortcut keys allow you to pre-assign frequently used functions based on actual shooting needs, enabling faster adjustments and improving on-set efficiency.
9：16 Vertical Screen Marker
T7S PRO has many kinds of ratio marker, especially the vertical screen marker 9:16. Perfect for vertical screen platform such as Tik tok, Instagram.
The monitor provides 4 groups menu setting saving. You can select 1~4 group after set the menu, it will save automatically,can be easily recalled or switched based on different shooting needs.
SDI Time Code
The monitor supports time code display under SDI signal,including LTC and VITC types，synchronization with the camera. Through the time code, you can quickly and accurately find a specific frame in the video It is particularly convenient to identify specific frame rates in filming and television post production and video production.
Load Custom 3D LUTs，Preview Filming Look in Field Shooting
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash driver (up to load 32). Insert the USB flash driver to the standard accessory USB to Mini USB cable, then connect with the mini USB interface of T7S PRO.
HDR Monitoring
What you see is what you get
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing lighter and darker details to be displayed more clearty，it is better to reflect the visual effects in the real environment. Built-in HLG1, HLG2, HLG3 three types.
Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. When the function is turned on separately, you can also move its the horizontal or vertical position in Menu. T7S PRO becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
3G SDI&4K HDMI Input and Output，High Speed Transmission
Equipped with 3G-SDI, 4K HDMI inputs and outputs, support up to 4096x2160/60p &3840x2160/60p signal, compatible with camcorder and the latest DSLR cameras on the market. And provide a 3.5mm headphone jack to monitor audio.
Flexible Power Supply Option
You can connect to DC power input to get continuous power （suitable for use 2A power adapter,DC 5.5*2.1mm power plug) or install NP-F series battery on the NP-F battery slot for mobile application.
T7S PRO builts-in up to 12 languages, that means T7S PRO is perfect for doing international location work with different crews because you can just go into the menu and change the language any time you need!
Mini Hot Shoe Mount Adapter
The standard accessory mini hot shoe mount adapter can quick release and attach to camera monitor, led light, flash, microphone, etc. Upper with 180° viewing angle and base with 360° rotation.
Portable Sun-hood
In order to meet the needs of different photographers, T7S PRO still with portable sun-hood , and easy to install.
SPECIFICATIONS
| Model | T7S PRO |
| Screen Size | 7"IPS |
| Resolution | 1920X1200 pixels |
| Pixel Pitch | 0.07875(W) x 0.07875 (H) (mm) |
| Color Depth | 8bit |
| Aspect Ratio | 16:10 |
| Brightness | 2000cd/m² |
| Contrast Ratio | 1200:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
| 1 X SDI | 3G-SDI |
| 1 X HDMI | HDMI 2.0 |
| 1 X USB | Mini USB (LUT file import and Firmware update) |
| 1 X SDI | 3G-SDI |
| 1 X HDMI | HDMI2.0 |
| Audio | 3.5mm Stereo Headphone |
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080i (60/59.94/50) |
| 1080p (60/59.94/50/30/29.97/25/24/23.98) |
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080i (60/59.94/50) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
| 4K 3840×2160p (60/50/30/29.97/25/24/23.98) |
| 4K 4096×2160p(60/50/30/29.97/25/24/23.98) |
| Power Connector | DC IN |
| Input Voltage | DC7～24V |
| Power Consumption | ≤18W |
| Working Temperature | -20°C~55°C |
| Storage Temperature | -30°C~65°C |
| Install Way | 1/4"-20 Thread Point (bottom) |
| Unit Size | 182.8x122.8x24 (mm) |
| Unit Weight | 370g |
| Color Box Size | 222*158*76(mm) |
| Outer Carton Qty | 10 |
| Outer Carton Size | 450*234*385 (mm) |
| Gross Weight | kg |
