FEELWORLD FW568 V3 6 inch DSLR Camera Field Monitor with Waveform LUTs Video Peaking Focus Assist
Shipping calculated at checkout
100 in stock
Collapsible tab
Collapsible tab
. Stock in US, EU, JP, AU, CA, RU local warehouse
US/ CA/ RU: 3-7 days delivery
EU/ AU: 3-10 days delivery
JP: 2-3 days delivery
. Shiping Worldwide 200+ Country
7-10 days delivery.
. Stock in US, EU, JP, AU, RU local warehouse and delivered by Amazon logistics
US/ RU: 3-7 days delivery
EU/ AU: 3-10 days delivery
JP: 2-3 days delivery
. Shiping Worldwide 200+ Country：7-10days delivery
. Warranty: One year warranty time and 14 days return and refund for US, EU, JP, AU, RU.
. VAT for EU customers: The VAT will be charged when Europe customers place the order on our official store or Amazon Store.
More detail: Shipping Policy | Warranty Policy
Click to Get Suitable Monitors:
FW568 V3 | F5 PRO V4 | F5 PROX
Dear friends, thank you very much love and support the FEELEWORLD monitor, in order to improve user experience, we update the FW568 monitor to FW568 V2 with waveform and 3D LUT function, support load 32 custom LUTs. Preview film look in field
The FW568 screen resolution is1920x1080 update to FW568 V2 resolutions 1920x1152.
High resolution, brighter full of colors
The FW568 V2 provides a sharp image, ideal for focus pulling and image analysis on set and in the field. With native 1920x1152 high resolution and 16:9 display, 500cd/m2 brightness, 1000:1 contrast ratio, delivers excellent detail, so you can enjoy sharper and richer colors image, full-screen display uniform, no difference, no trailing. Its size, weight and resolution make it an attractive option for DSLR shooters looking to attach it straight to the camera.
IPS monitor, gives you a large visual view to enjoy, offers consistent image clarity and colors from 160-degree viewing angle vertically and horizontally. And the wide viewing angle makes it easy for multiple crew members to watch at the same time.
Use Rec.709 color standard
Accurate color reproduction
The menu controls are intuitive and easy to use. Two different feature buttons which are programmable to the various features that you use the most.
The FW568 has 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. The HDMI output can transmission to broadcast monitor, convenience director and photographer monitoring at the same time.
Convenient for various angle monitoring

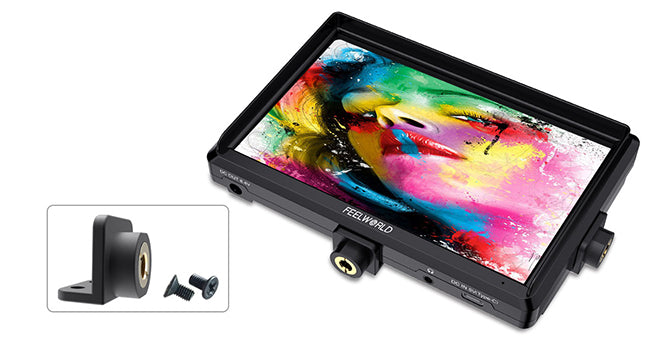

The FEELWORLD FW568 has a standard 1/4" mounting point (bottom, right) for attaching it to the camera and rig. The 1/4 screw can remove mounted to the bottom or right side.
If you install it on the bottom of the device, you can also combine the image flip function to maintain the correct orientation of the screen!
FW568 equipped with one 1/4 screw, if you also want to fast install at gimbal, you can buy one more 1/4 screw.
The FW568 monitor is equipped with a sunshade, which allows the photographer to focus more on the video and avoid the interference of strong light, providing a better visual experience.
Package Include
Standard Accessories
1× Micro HDMI Cable
1× Sunshade
1× Tilt Arm
1× Type-C to USB
1× Manual
Video Assist Functions
2. High Contrast: 1000:1
3. High Brightness: 500cd/m²
4. 160° wide viewing angles IPS Panel
5. Provides auxiliary power out; allowing shooters to power their cameras
6. Custom 3D LUT import (up to 32)
7. All waves
8. Waveform (RGB, Y, YUV)
9. Histogram (RGB1, Y, RGB2)
10. Peaking Focus Assist (Red,Green,Blue three colors optional highlight over parts of the image in focus)
11. False Colors
12. Zebra Exposure
13. Nine Grid
14. Scan Mode (Under Scan, Over Scan)
15. Zoom (4x,9x,16x)
16. Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
17. Pixel to Pixel
18. Center Marker
19. Safe Area (80%,85%,90%,93%,96%,2.35:1)
20. Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
21. Marker Color (Red,Green,Blue,White,Black）
22. Check Field (Red/Green/Blue/Mono)
23. Image Flip (H, V, H/V)
24. Image Freeze
25. Zoom All (0~500 adjustable)
26. U/D & L/R Zoom (0~500 adjustable)
27. Color Temperature Adjustment
Embedded Audio Monitoring
The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring. The audio meter is green, and will turn yellow when exceeds -20dB, and turn red when exceeds -9dB.
Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the putline color between red, green, blue according to different tone of the subject.
False Colors
The False Colors filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.
Exposure (zebras)
The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern. It is considered overexposed and displays the moving warning lines onto the over exposed areas. 1-100IRE adjustable.
Check Field
Check Field is an assistant function to adjust camera color settings. Under the check field mode, you can use red, green, blue or mono pixels to generate the image, because hue and saturation can be adjusted more quickly and accurately in this environment.
Zoom In (4X, 9X, 16X)
Image magnification is HD signal in any part, an amplification for high quality close-up.
Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
Built-in selection of no squeeze, 1.3× or 2.0× allows you to use anamorphic lenses or adapters and see the image unsqueezed, even if your camera does not de-squeeze in camera. A 2.0× mag mode, magnifies the center of your image so you can check the focus of your scaled image.
Image Flip
The Horizontal,Vertical and Hor&Ver of the image around flip.
Nine Grid
Zoom one of the images to realize the full screen. You can switch the Mark color between Red, Green, Blue, White, Black according to different tone of the subject.
Pixel to Pixel
Enable the filmmaker to check the image from the 1:1 signal source without scaling.This feature is essential for capturing optimum detail.
Center Marker & Safe Marker
Safe Mark for View Finding and Composition (80%, 85%, 90%, 93%, 96%, 2.35:1). You can switch the Mark color between Red, Green, Blue, White and Black according to different tone of the subject.
Ratio Marker
(4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1). Frame blanking zone includes 6 Levels, from 0-6 (Transparent to Black). You can switch the Mark color between red, green, blue, white and black according to different tone of the subject.
Specifications
| Model | FW568 V2 |
| Screen Size | 5.5" IPS |
| Resolution | 1920x1152 pixels |
| Pixel Pitch | 0.0639 (H) x 0.0213 (W) mm |
| Aspect Ratio | 16:9 |
| Brightness | 500cd/m² |
| Contrast Ratio | 1000:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
| 1 X HDMI | HDMI |
| 1 X HDMI | HDMI |
| 1 X DC Output | DC Output |
| Audio | Stereo Headphone |
| 480i/576i/480p/576p |
| 1080i (60/59.94/50) |
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
|
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
|
| Input Voltage | DC7～24V |
| Power Consumption | ≤9W |
| Power Connector | DC |
| Working Temperature | -20°C~55°C |
| Storage Temperature | -30°C~65°C |
| Install Way | ¼-20 thread points |
| Unit Size | 142Lx87.2Hx27.5D (mm) |
| Unit Weight | 175g |
| Color Box Size | 186L*124W*80H(mm) |
| Outer Carton Qty | 10 |
| Outer Carton Size | 465*200*326 (mm) |
| Gross Weight | 6.5kgs |
| * All Waves |
| * Waveform (RGB, Y, YUV) |
| * Histogram (RGB1, Y, RGB2) |
| * Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus) |
| * False Colors |
| * Zebra Exposure (1-100IRE adjustable) |
| * Check Field (Red, Green, Blue, Mono) |
| * Scan Mode (Under Scan, Over Scan) |
| * Anamorphic Mode (1.3x, 2.0x, 2.0x mag) |
| * Image Flip (H, V, H/V) |
| * Image Freeze |
| * Center Marker |
| * Screen Marker (80%,85%,90%,93%,96%, 2.35:1) |
| * Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1) |
| * Color Temperature Adjustment |
| * Nine Grid (Zoom one of the images to realize the full screen) |
| * Zoom (4X, 9X, 16X) |
| * Aspect Ratio |
| * Pixel to Pixel |
| * Zoom All |
| * U/D Zoom |
| * L/R Zoom |
